ONE-DNA ELAN 35 - Tufted synthetic grass carpet
Verified by manufacturer 9 days ago

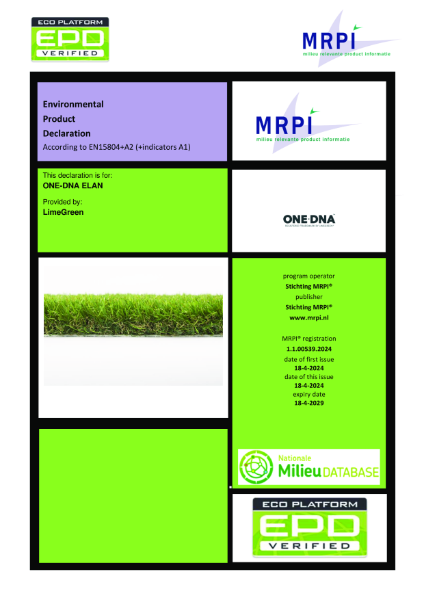

EPD
Certificate type
Tufted synthetic grass carpet.
Application
Suitable for gardens and landscaping.
Description

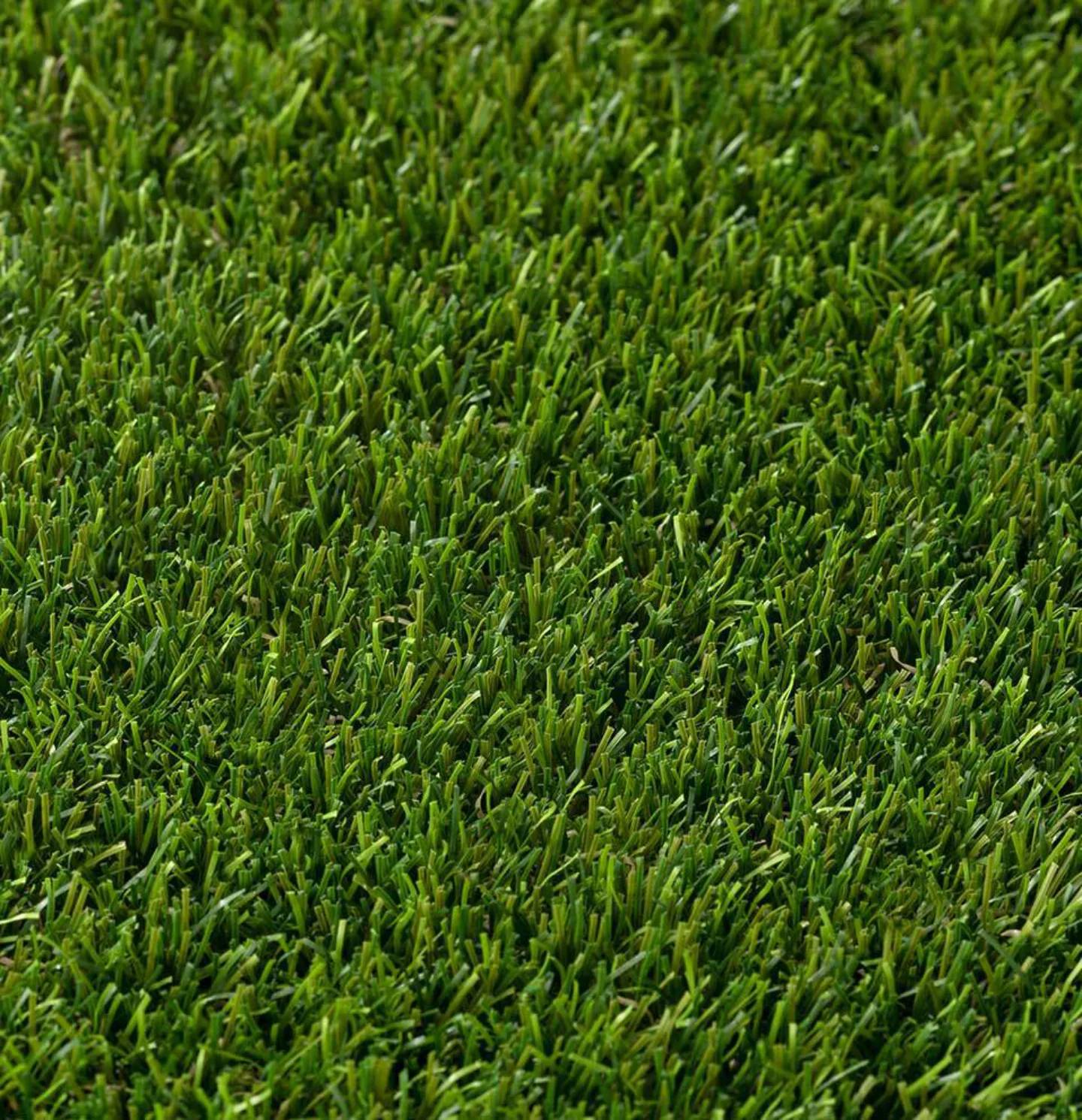

ONE-DNA™ Elan 35mm is a pioneering 100% circular artificial grass surface made of 100% polyethylene. It has an appearence of a thick, full-bodied turf with a mix of light and darker green yarn with a light brown root zone. This combination creates a highly natural look.
Also used in the EVR-1 and EVER-4 artificial green roof systems.
Features and benefits:
- Fully recyclable.
- Natural appearance and feel.
- 15 year guarantee.
- Fully recyclable and circular.
- Tested for UV Stability DIN 53387.
- Fast flow water drainage.
- Environmental friendly, free of lead and cadmium.
- Pile height: 35 mm.
General information
Color | Green |
Finish | Tufted |
Material | High density polyethylene (HDPE) |
Shape | Other |
Length | Bespoke |
Width | 4000 mm 2000 mm |
Height | 35 mm |
Warranty description | 15 year |
Uniclass | |
CAWS | Q26/350 Synthetic grass surfacing |
Specification data - Synthetic grass surfaces
Third party product certification | To EN 71-3, SVHC, PAH (EU 1272/2013), FTIR. |
Pile | |
Type | Tufted. |
Material | Polyethylene.Guidance for specification option: UV stabilized. |
Height | 35 mm (± 2 mm).Manufacturer guidancePile height. |
Weight | 2098 g/m² (± 10%).Manufacturer guidanceTotal weight. |
Colour | Light and dark green with brown thatch. |
Width (minimum) | 4000 mm. |
Roll length | 25 m. |
Primary backing | ONE-DNA™. Guidance for specification option: 100% PE, 400 g/m²; UV Stabilized. |
Weight | 1689 g/m² (± 10%). Manufacturer guidanceFace weight. |
Gauge | 3/8. Manufacturer guidanceTuft gauge. |
UV stabilization | To DIN 53387. |
Water permeability | >60 L/m². |
ShapeType | Six x Semi TXT and four x Y-shape. |
Colour fastness | Blue Scale > 7, Grey-scale > 4. Manufacturer guidanceXenon Test: |
Stitches per m² | 15,750 (± 10%). Guidance for specification option: Per 10 cm linear: 15 (± 1%). |
Infill | 8 kg/m². Guidance for specification option: Silica sand, gradation 0.5–1.0 mm, 80% round shaped. Manufacturer guidanceApproximate sand infill: |
Sustainability data
Contains Red List materials | No |
Country of material origin | Netherlands |
Country of product manufacture | Netherlands |
Material | High density polyethylene (HDPE) |
Recyclability | Certified 100% circular can be recycled at end of life |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
Third party certifications
Literature
ONE-DNA™ Elan 35
