O.novo Handwashbasin Compact 4342L5
Verified by manufacturer 8 months ago
4342L501
4342L501

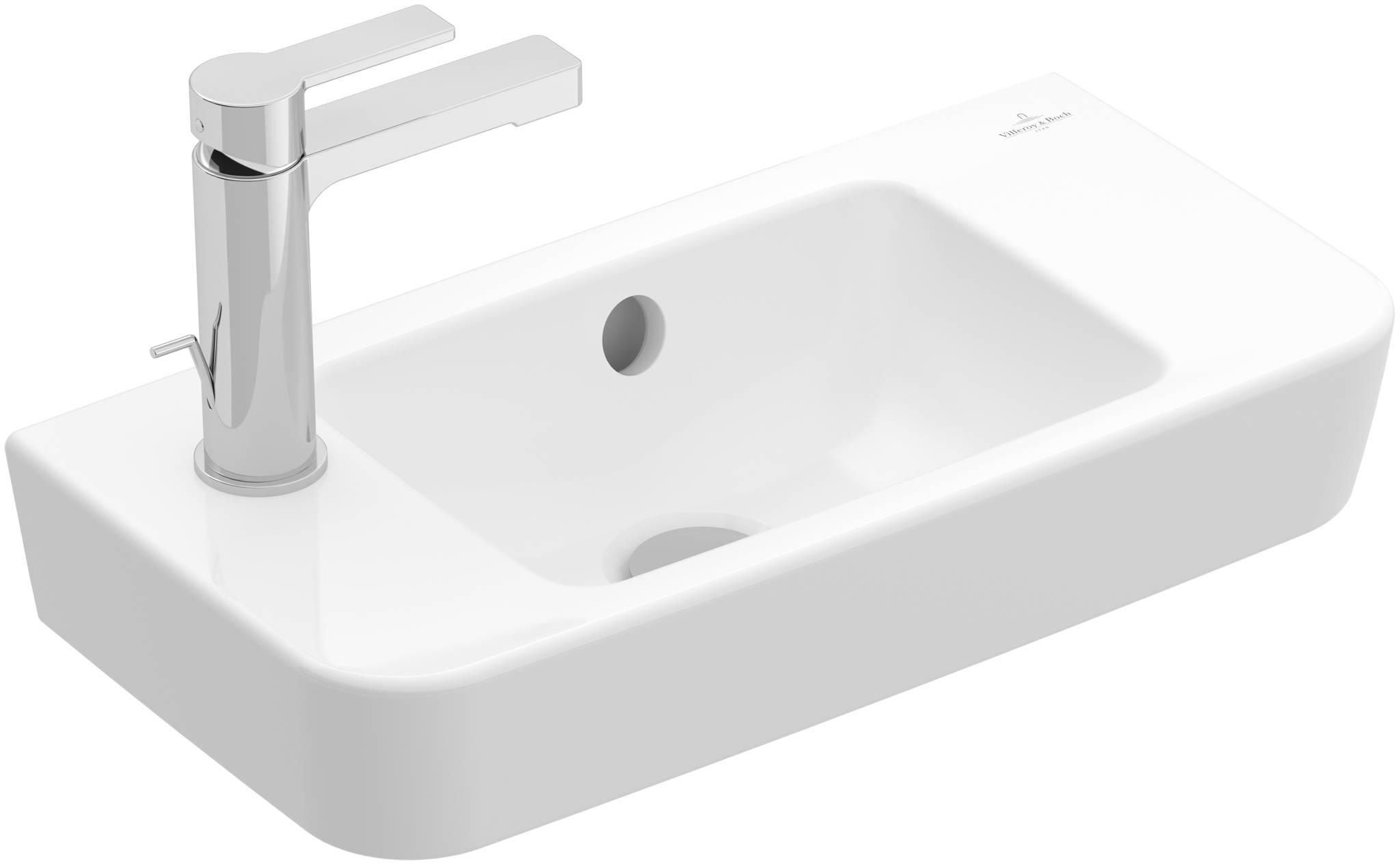

Angular compact handwash basin.
Description
Angular compact handwash basin.
Features and benefits:
- Sanitary ceramics.
- Central basin.
General information
Color | White |
Finish | Gloss |
Material | Ceramic |
Shape | Other Guidance for specification option: Angular. |
Length | 500 mm |
Width | 250 mm |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Specification data - Wall-hung washbasins
Form | Wall-hung wash basin. |
Materials | |
Body | Ceramic. |
Finish and colour | White alpin, gloss. |
Size | 500 x 250 mm. |
Water supply, overflow and waste holes | |
Water supply | Single tap hole, offset.Guidance for specification option: Suitable for 1-hole tap fittings, tap hole punched out on left, tap hole on right pre-punched. |
Overflow | Rear overflow hole. |
Integral accessories | Closable valve 6806 00, Unclosable outlet valve 6808 00, Unclosable outlet valve 6809 00, Closable valve 6810 00; Unclosable outlet valve 8798 90. |
Weight | 8.1 kg. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 ARCHICAD | - | 1 |
 SketchUp | - | 1 |
 3Ds Max | - | 1 |
 Revit | - | 1 |
 IFC | - | 1 |
 OBJ | - | 1 |
