Oranit Shiluvit Panels Ceilings

Name: Oranit Shiluvit Panels Ceilings
Brand: LSA Projects Ltd
SKU: uzDmo2U13wmzrXfaV4KCrt

Verified by manufacturer 21 days ago

7-330

LSA Projects Ltd

Product certifications:

PEFC
Certificate type
BS EN 13501-1
Certificate type
PEFC
Certificate type
EPD
Certificate type
EPD
Certificate type
EPD
Certificate type
EPD
Certificate type

Solid wood panel ceilings.

Jump to:

+44 (0)1376 501199 Website

Application

Internal areas.
Suitable for installation in damp or humid environments, including swimming pools and sheltered external areas, with an additional lacquer layer.

Description

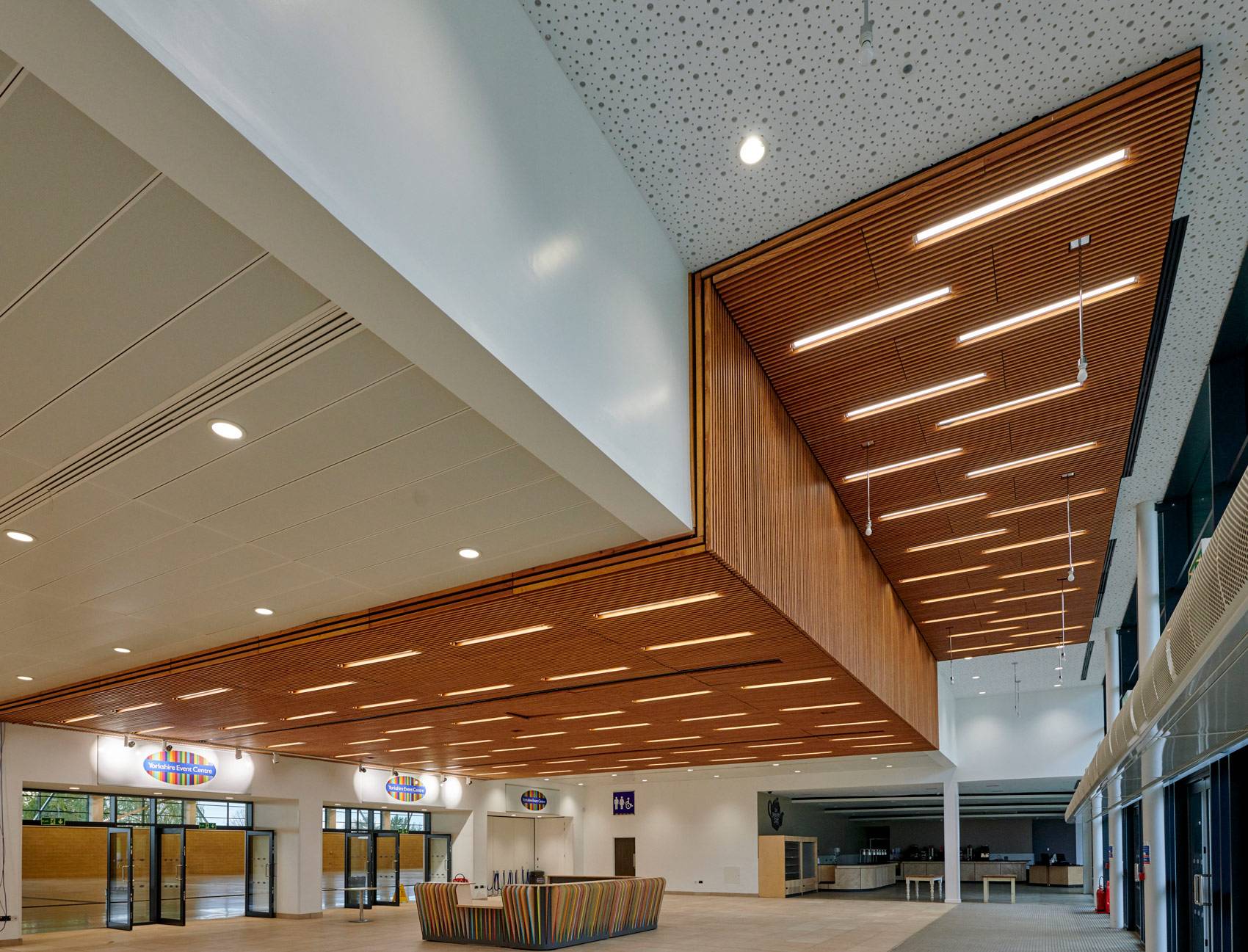

Oranit Shiluvit Panels Ceilings are solid timber linear panels made in a range of timber species.

The panels are fully demountable using standard suspension grids and extra cross bars are supplied for maximum stability.

Oranit panels come fire rated to Euroclass B,s2-d0 for minimal reaction to fire due to their non VOC impregnation technique.

Panels can be made in a large range of standard blade modules for a customised appearance with acoustic tests across the range of panel formats and installation styles.

Features and benefits:

Available in a range of wood species and finishes.
Simple installation onto standard T24 or T15 suspension grids.
Panels can easily be cut on site to integrate lighting and services.
PEFC certified.
Cradle to Cradle Certified Bronze.

General information

Color	Brown Other
Finish	Varnished Stained Painted Lacquered
Material	Wood
Shape	Rectangle
Length	600 mm 1200 mm 1800 mm
Width	600 mm
Warranty description	Two year

Uniclass	Ss_30_25_22_51 Modular suspended ceiling systemsPrimary Ss_25_25_75_05 Acoustic panel lining systems
CAWS	K13/170 Acoustic panel lining K40/115 Unit/ modular suspended ceiling system K40/10 Unit/ modular suspended ceilings K13/170 Acoustic panel lining

SKU Code	7-330, 7-500, 7-501, 7-501A, 7-502, 7-503, 7-600, 7-601, 7-603, 8-065, 8-080, 8-100, 8-130

Specification data - Modular suspended ceiling systems

System performance	- Manufacturer guidance Up to Class A acoustic properties when installed with mineral wool. See brochure and datasheet for details and insert requirements or omit.
Ceiling support	Guidance for specification option: Shiluvit panels are installed using tip-and-tilt method onto a standard T-24 ceiling grid (by others).
Support fasteners	- Manufacturer guidance Only required for pitched and other non-standard installations. Insert requirements or omit.
Ceiling units	Oranit Shiluvit Linear Panels.
Barriers in ceiling void	-
Fire barriers	- Manufacturer guidance Insert requirements or omit.
Acoustic barriers	Not required. LSA black acoustic mineral wool. Guidance for specification option: Optional.
Plenum barriers	- Manufacturer guidance Insert requirements or omit.
Samples required	- Manufacturer guidance Insert requirements or omit.
System accessories	None. LSA Black 20 mm Acoustic Mineral Wool Lining. Guidance for specification option: 1192 x 592 mm. 20 mm thick mineral wool with black felt finish.

Reaction to fire	To EN 13501-1, Class B-s2, d0. Guidance for specification option: Magma FireStop® SBP-1 applied by vacuum pressure impregnation results in Euroclass B-s2,d0. Full details available upon request.
Wood species	American yellow pine. Guidance for specification option: PEFC Certified. American yellow poplar. Nordic pine. Guidance for specification option: PEFC Certified. American red oak. European beech. Guidance for specification option: PEFC Certified.
Colour/ Finish	Clear varnish. External/ pool lacquer. Staining/ whitewash. Guidance for specification option: Consult manufactuer and insert requirements.
Slats	30 x 30 mm.
Open space	30 mm.
Panel dimensions	600 x 600 mm. 600 x 1200 mm. 600 x 1800 mm. Manufacturer guidance Other panel sizes and formats are available on request, minimum order quantities and size limits apply.

Sustainability data

Contains Red List materials	No
Country of material origin	United States
Country of product manufacture	Israel
Material	Wood
Recyclability	Product is demountable and reusable within expected lifespan.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
