OS Loop Control System - Modular Smoke Control System

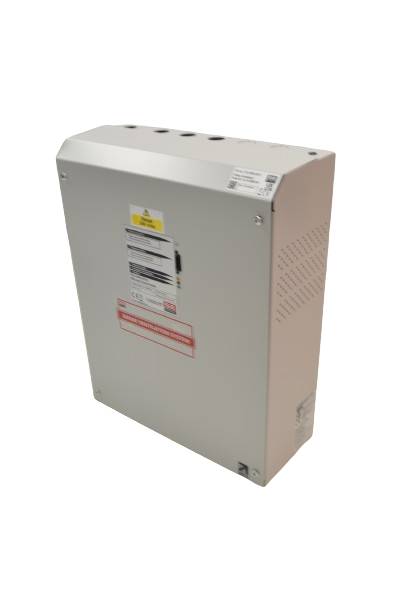

OSLoop is a modular smoke control system. It consists of a centralised coordination module (the coordinator) and between 1 and 16 remotely mounted manual control points (MCPs). Larger systems can be constructed by linking together multiple coordinators.

Features and benefits:

• The coordinator controls power and data to the networked system fully monitoring primary (mains) and secondary (battery*) power supplies.
• The OSLoop system intelligently monitors current requirements of the system and determines how and when the MCPs can call on this power to activate AOVs.
• Each MCP contains actuator switching circuitry which also monitors the actuator cabling and circuitry for faults. If a fault is detected, then the MCP raises a local alarm and also informs the coordinator so the remote alarms can be triggered.
• The MCP also provides support for up to three smoke detectors. Again this circuitry monitors the detectors and cabling checking for faults.
• The MCP may be configured to work independently or grouped in the same system
