Outlet - Sombra Gravel & Leaf Guard
Verified by manufacturer 28 days ago
ISO 14001 Environmental Management Systems
Certificate type
ISO 9001 Quality Management
Certificate type

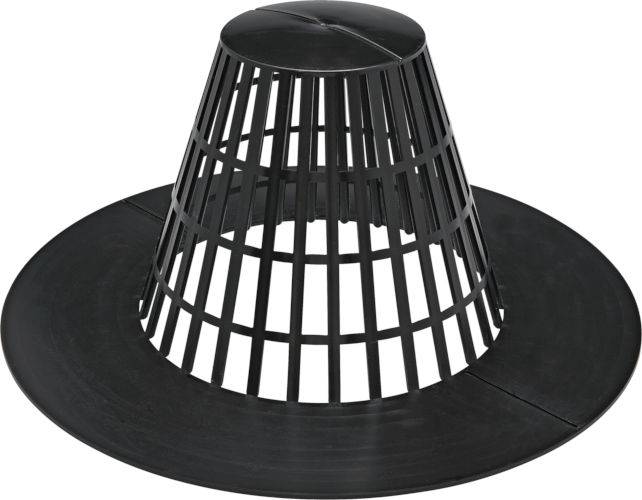

Heavy duty polypropylene leaf and gravel guard, designed to stop leaves, gravel and pests entering top of downpipe outlet. Particularly suited for use on green roofs as a pebble guard.
Application
Suitable to be used on top of downpipe outlet.
Suitable for use on green roofs as a pebble guard where the pebbles ballast the base.
Description
Heavy duty leaf and gravel guard designed to stop leaves, gravel and pests entering the top of the circular drainage downpipe. This prevents blockages and assists in drainage of the roof.
Regular (at least once per year) maintenance of all drainage outlets on the roof / is recommended. Dirt, leaves and other build ups should be removed and the area around the outlet deck cleaned thoroughly.
General information
Color | Black |
Finish | Matt |
Material | Polypropylene |
Shape | Circle Other |
Length | 336 mm |
Width | 336 mm |
Height | 160 mm |
Warranty description | 15 year |
Uniclass | |
CAWS | Q37/450 Roof drainage outlets R10/11 Aluminium gutters R10/355 Zinc gutters R10/340 GRP gutters R10/330 Copper gutters R10/325 Composite gutters R10/315 Cast iron gutters R10/311 Aluminium gutters |
Specification data - Eaves gutter leaf guards
Form | Polypropylene gravel and leaf guard. |
Size | 336 x 160 mm.Guidance for specification option: Diameter x height. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Material | Polypropylene |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % |
Expected Life | 20 year |
Third party certifications
Third party certifications
ISO 14001 Environmental Management Systems
ISO 14001
ISO 9001 Quality Management
ISO 9001
Literature
Datasheet - Sombra Leaf & Gravel Guard
