Outlet - TPE Circular Downpipe Outlet 240mm(L) - Ribbed Flange

Name: Outlet - TPE Circular Downpipe Outlet 240mm(L) - Ribbed Flange
Brand: Wallbarn Ltd
SKU: vMPH4RGLVLcKHTiWGYJ1Lw

Verified by manufacturer 3 months ago

H240 mm - D40 mm - RO-TPE-030-040- 240-040-Z

Wallbarn Ltd

Third party certifications:

ISO 14001 Environmental Management Systems
Certificate type
ISO 9001 Quality Management
Certificate type

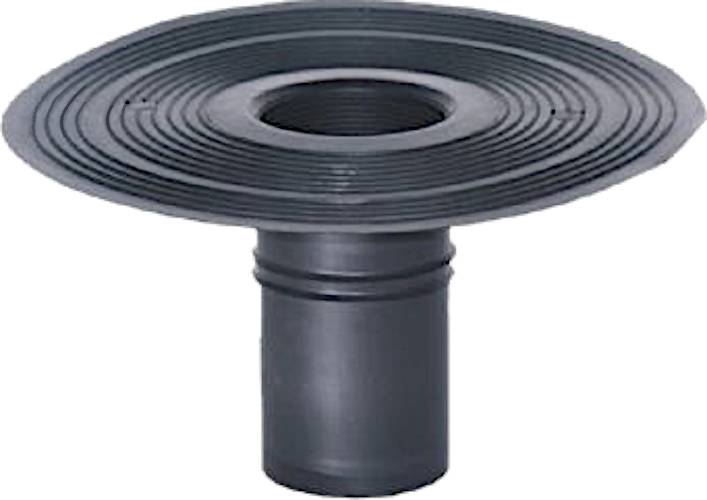

TPE circular rainwater drainage outlet with a ribbed flange for downpipes on flat roofs for bonding to bitumen based waterproofing membranes in a sandwich technique. Shaft length available in 240 mm.

Jump to:

+44 (0)20 8916 2222 Website

Application

Tough, durable and flexible drain connector, used for downpipes and circular outlets on a roof or terrace within the main body of a concrete deck.

Description

Tough, durable and flexible drain connector, used for downpipes and circular outlets on a roof or terrace within the main body of a concrete deck.

Features and benefits:

It is suitable with SBS and APP bituminous membranes, including built-up felt, mastic asphalt, hot melt and other liquid applied membranes and consists of a pipe which is inserted into a hole to connect to the outlet drainage pipe and a flange which is sandwiched between two layers of waterproofing membrane.
The flange is The flange is ribbed to help grip to the membrane and improve the bond.
The pipe is manufactured in a slight cone shape to give easy installation and to prevent it from rising out of the hole.
There are also two rings on the exterior of the pipe, which help to ensure that no water can travel back up.
The drain connectors are designed to sit inside an outlet pipe with a snug fit and a range of size options are available in relation to the relevant outlet pipe size.
UV resistant.
Can withstand a temperature of up to 120°C.
Can be fitted on multiple downpipes.
Tough flexible and durable material.
Manufactured with a ribbed flange and bonded to the waterproofing membrane using the sandwich technique.

General information

Color	Black
Finish	Matt
Material	Thermoplastic elastomer (TPE)
Shape	Circle Other
Length	240 mm Manufacturer guidance This dimension refers to the length of the outlet shaft.
Width	40 mm 90 mm 125 mm Manufacturer guidance These dimensions refer to the size of the downpipe that these outlets fit into.
Height	240 mm Manufacturer guidance This dimension refers to the length of the outlet shaft.
Warranty description	15 year

Uniclass	Pr_65_50_35_37 Gravity rainwater outletsPrimary
CAWS	R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets

Specification data - Gravity rainwater outlets

Material	Thermoplastic elastomer (TPE).
Integral accessories	None. Gravel excluder. Leaf guard.

Height	240 mm.
Outlet pipe (diameter)	40 mm.
Couplings	Not required. To suit drainage outlet.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Thermoplastic elastomer (TPE)
Recyclability	Yes Manufacturer guidance The recycling of TPE involves grinding the material into pellets or granules, which can then be remelted and remolded into new products. However, the specific recycling process can vary depending on the exact type of TPE, as there are several different types, each with varying properties and chemical compositions.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
