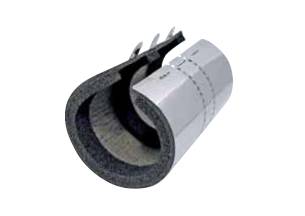

Pacifyre® MK II - Fire Sleeve (Plastic)
Verified by manufacturer 8 days ago
European Technical Approval (ETA)
Certificate type
UL-EU Certified
Certificate type
Non-insulated-plastic pipes, fire, smoke and noise barrier, available in all common sizes.
Application
Fire sleeve suitable for use in small spaces, close spacing and in any direction.
Suitable for homes, factories, hospitals, offices or other residential buildings.
Description
Non-insulated fire, smoke and noise barrier, available in all common pipe sizes.
Features and benefits:
- Easy to install to minimize risk of incorrect installation.
- Just one sleeve per aperture.
- Close wall distance
- Close spacing.
- For pipes in any direction.
- Suitable for renovations and remedial fire stopping.
- Exclusive product feature to suit more complex building requirements.
- Also available as a metal sleeve, insulated or non-insulated (specified separately).
General information
Color | Silver |
Material | Stainless steel Guidance for specification option: Consult manufacturer for details. Manufacturer guidanceIncludes intumescent and foam. |
Shape | Circle |
Uniclass | |
CAWS | P31/30 Pipe sleeves P12/43 Pipe collar P12/370 Pipe collar |
Specification data - Concealed intumescent pipe collars
Sizes | 15–17 mm.18–20 mm.23–28 mm.29–36 mm.38–44 mm.46–52 mm.48–55 mm.52–58 mm.55–61 mm.61–67 mm.70–79 mm.74–82 mm.86–94 mm.95–103 mm.104–113 mm.120–128 mm.131–139 mm.136–144 mm.155–164 mm.175–184 mm.195–204 mm.Other.Guidance for specification option: On request; consult manufacturer for details and insert requirements. |
Fire performance | EI 120.Guidance for specification option: Applies to: Wall of aerated concrete blocks; modular wall; ceilings. |
Sound insulation rating | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Air leakage | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Position | Fitted in hole or opening. |
Sustainability data
Country of product manufacture | Czechia |
Third party certifications
European Technical Approval (ETA)
Pacifyre MK II Fire Sleeve ETA
UL-EU Certified
Pacifyre MK II UL Certificate
Literature
Brochure_Fire_Stopping_Solutions_Walraven
Case studies
Case study - Walraven Pacifyre Fire Sleeve on The Shard
