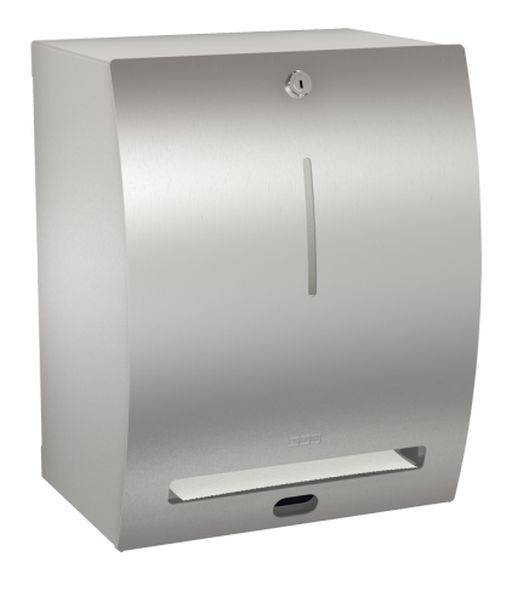

Paper Towel Dispenser - STRX630

Verified by manufacturer over a year ago

KWC DVS Limited

Stratos touch free paper towel dispenser for wall mounting (battery operated).

Jump to:
BOS
+44 (0)1246 458900 Website

Application

Stratos touch-free paper towel dispenser, sensor operated for wall mounting.

Description

Stratos touch-free paper towel dispenser for wall mounting.


Features and Benefits:

  • With InoxPlus® surface refinement for the reduction of fingerprints and better cleaning characteristics (easy to clean),.
  • Curved front cover.
  • Cylinder lock with Franke standard key.
  • Infra-red sensor for non-touch operation.
  • Integrated tear-off edge and includes four pieces standard D 1.5V (6V) batteries.
  • It is a maintenance free mechanic and easy paper roll change mechanism, for rolls with maximum width 205 mm and maximum diameter 220 mm, paper length adjustable to 200, 250 and 300 mm and includes stainless steel screws and dowels.

General information

Color

Silver

Finish

Satin

Guidance for specification option:

With InoxPlus antifingerprint coating

Material

Stainless steel

Guidance for specification option:

grade 1.4301 (304)

Length

385 mm

Width

300 mm

Height

234 mm

Manufacturer guidance

Projection.

Warranty description

Five year

Uniclass

Pr_40_70_22_62 Paper towel dispensersPrimary

CAWS

N13/442 Paper towel dispensers

Product range

Bars, bins, dispensers, dryers, fittings

Specification data - Paper towel dispensers

Form

Wall mounted.

Towels

-

Towel type

Folded.

Width

205 mm.

Materials

-

Body

Stainless steel.

Guidance for specification option:

grade 1.4301 (304)

Finish and colour

Satin finish with InoxPlus antifingerprint coating.

Operation

Automatic.

Guidance for specification option:

Sensor operation.

Product Reference

(STRX630) 201.0000.006

Sustainability data

Contains Red List materials

No

Country of material origin

United Arab Emirates

Recyclability

-

Manufacturer guidance

Recyclable.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
