PAS 68 HVM Static Terra Jupiter Bollard – 7.5t at 50 mph - Static HVM Bollard
Verified by manufacturer 29 days ago
Secured By Design
Certificate type
PAS 68 HVM static Terra Jupiter bollard – 7.5 t at 50 mph.
Application

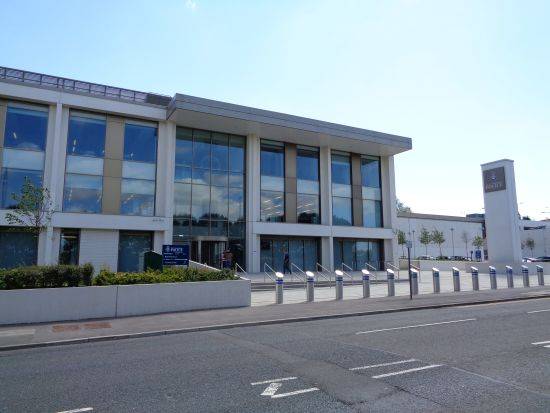

Suitable for high security sites where a complete HVM perimeter is required, public realm, crowded places and pedestrian areas where vehicles are not permitted. Static HVM bollards are also used between automatic HVM products to ensure the installation meets PAS 69 installation guidance of 1.2 m maximum distance between upright faces.
Description
The Static Terra Jupiter Bollard is an HVM Terra bollard that has been impact tested to the British PAS 68 Specification, stopping a 7.5-tonne vehicle travelling at 50 mph. PAS 68 Classification Code: V/7500[N3]/80/90:10.5/11.1. Impact tested in a set of three bollards.
Static HVM Terra bollards have been proven to stop vehicles, providing HVM (hostile vehicle mitigation), counter terrorist, impact-resistant barriers preventing vehicle as a weapon attacks. Removable model available – please see Removable Static Terra Bollards.
Features and benefits:
- All made to order.
- A range of sleeves finishes and tops available.
- Secured by Design and a PSSA verified product.
- Listed on the CPNI List of IWA 14 and PAS 68 products.
General information
Color | Other |
Finish | Powder-coated Guidance for specification option: Shot blasted, hot zinc sprayed, primed polyester powder coated to RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493. |
Material | Steel Guidance for specification option: Core: Mild (carbon) steel. |
Shape | Other Guidance for specification option: Bollard. |
Width | 273 mm |
Height | 1000 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q50/190 Bollards Q50/30 Street furniture |
Product range |
Specification data - Carbon steel bollards
Standard | In accordance with PAS 68 / 69. |
Dimensions | |
Size and profile | ∅273 mm. |
Height | 1000 mm. |
Length below ground | 750 mm. |
Post top | Flat.Mitre.Semi-domed. |
Post base | Rebar. |
Finishes | |
Worked finish | Shot blasted. |
Applied finish | Polyester powder coated.Guidance for specification option: Hot zinc sprayed, primed polyester powder coated to RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493. |
Colour | Manufacturer guidanceInsert RAL colour requirement. |
Sleeve | Stainless steel 1.4303 (308) grade. Stainless steel 1.4401 (316) grade. Stainless steel bead blasted. |
Reflective banding | None. Recessed/ Surface. Single/ Double. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Third party certifications
Secured By Design
Secured by Design accredited
Literature
IWA 14 & PAS 68 Terra Bollards
