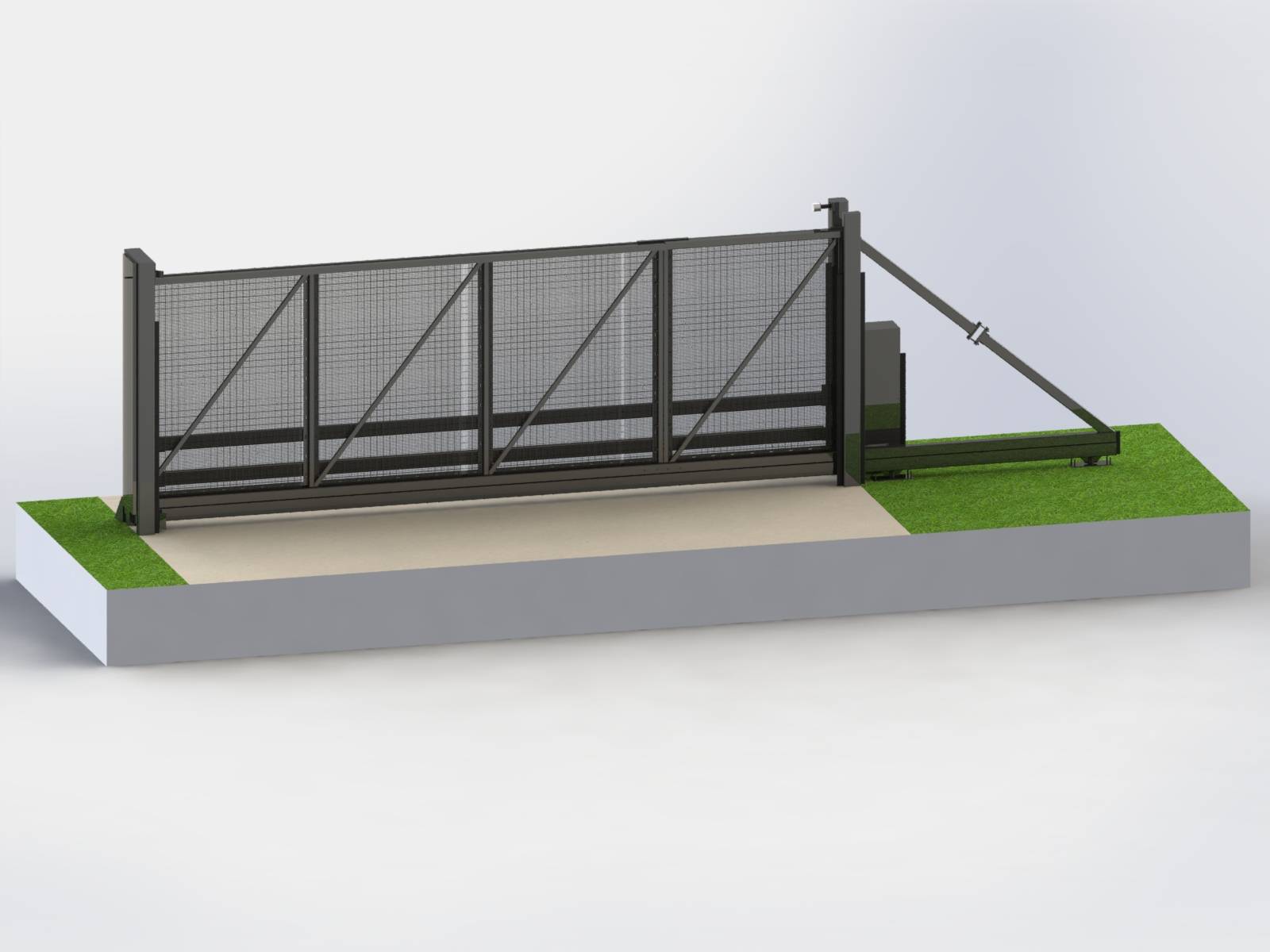

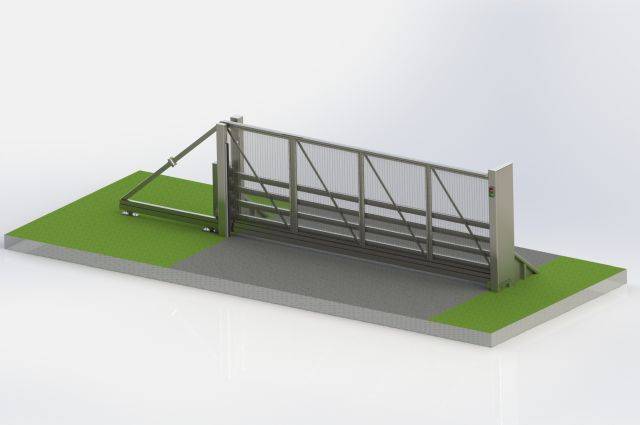

PAS68 Cantilever Sliding Gate

High-security cantilever sliding gates that have been successfully impact-tested to BSI PAS 68, stopping an N2 7,500 kg vehicle traveling at either 40 mph or 50 mph (vehicle dimensions: 8000 x 2400 mm). The cantilever mechanism allows the system to open and close without the need of a track.

Operation:

On entrance activation, the sliding gate opens in a quick but safe sliding action. On approaching the gate from the inside, a vehicle will drive over an internal safety/exit loop. Traffic lights, if installed, indicate the gates are about to move and go green when safe to enter or exit. The gate stays open and then closes after all the safety devices are clear and/or after a set time. An anti tail-gating function can be enabled to control traffic flow.

Features and benefits:

• Aesthetically pleasing and able to take power fence or security toppings.
• Low maintenance with minimal moving parts.
• Shallow foundations of only 400 mm.
• Smooth and quiet operation.
• Trackless design, no height restrictions and lower maintenance.
• Very secure, with an opening and closing speed of 150 mm/ second or a high speed unit available at 400 mm/ second.
