Pass-It® Transit System
Verified by manufacturer 5 months ago
PASSIT_TYPEAFP – Pass-It® Transit System, Type A
PASSIT_TYPEAFP – Pass-It® Transit System, Type A
CCPI Product
Certificate type
Pass-It Transit System is a pre-assembled, intumescent device encased in a two-part steel shell.
Application
Application / Use:
- To reinstate fire resistance through rigid and flexible walls.
- Multi-service penetrations.
- Allows for the retrospective installation of service without disruption of the seal.
- Allows for installation of services at the point being unknown.
- Assumed working life 25 years.
- For internal use.
Description
Pass-It Transit System is a pre-assembled, intumescent device encased in a two-part steel shell. It is designed to prevent the passage of fire between compartment walls where penetrated by cables, small combustible and non-combustible services.
The Pass-it Transit System’s unique design allows for fire
stopping to be fully installed prior to installation of penetrating services.
General information
Color | Green |
Material | Metal Intumescent |
Shape | Rectangle |
Length | Manufacturer guidanceSee manufacturer for specific sizes |
Width | Manufacturer guidanceSee manufacturer for specific sizes |
Height | Manufacturer guidanceSee manufacturer for specific sizes |
Uniclass | |
CAWS | P12/370 Pipe collars P12/43 Pipe collars |
SKU Code | PASSIT_TYPEAFP, PASSIT_TYPEBFP, PASSIT_TYPECFP, PASSIT_TYPEDFP, PASSIT_TYPEEFP, PASSIT_TYPEFFP, PASSIT_TYPEGFP |
Specification data - Pipe collar fire-stopping systems
Classification data | |
Capping sealant | |
Sealant type | Pyrocoustic®. |
Dimensions | 300 x 100 x 130 mm. Guidance for specification option: Width x height x depth. |
Materials | A metal shell internally lined with intumescent sachets of aqueous expanding paste liquid. |
Colour | Green. |
Third-party certification | ISO 9001: 11378. |
Fire performance | To BS EN 1366-3:2009, BS 476 : Parts 20 and 22, BS EN 13501-2:2016 and BS EN 13501-1. Guidance for specification option: See the approved FSi details for fire resistance performance. For BS EN 13501-1, contact technical.fsi.uk@etexgroup.com for details. |
Application temperature | +5°C to +35°C. Guidance for specification option: For unopened material, store in a well-ventilated, dry, cool environment. Recommended temp ranges +5°C to +35°C. Protect against exposure to direct sunlight. Always ensure that safe manual handling procedures are followed at all times. |
Sustainability data
Material | Metal Intumescent |
Product certifications
CCPI Product

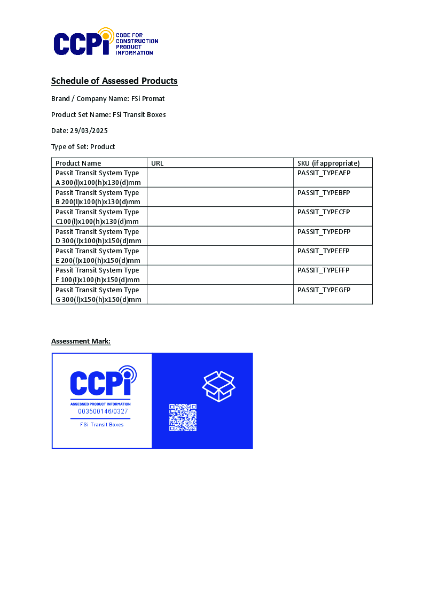

FSi Transit Boxes Schedule of Assessed Products CCPI
Literature
Literature type

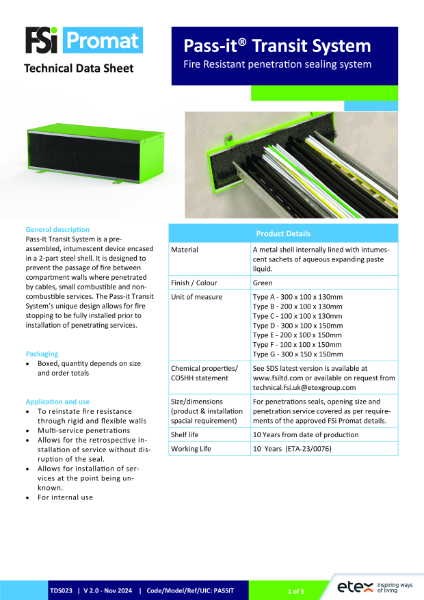

TDS023 - V2.0 - Pass it Transit System - Nov 2024
SDS038 - Article - Pass-It Transit System
Pass-it Transit System Classification report 4789842199-01

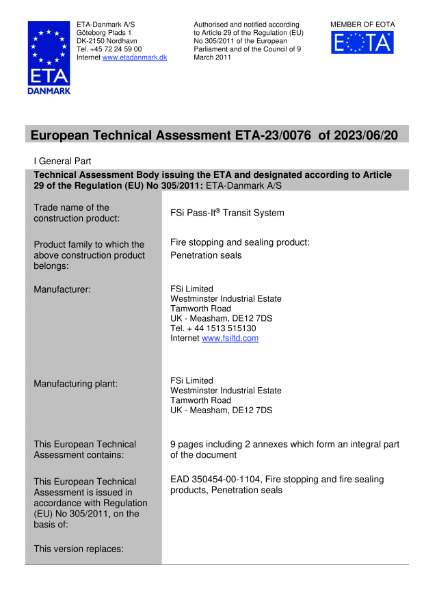

ETA230076 FSI Pass It 2 (2)
