Paving Pedestals
Verified by manufacturer 2 months ago
Adjustable paving pedestal system that enables rooftop paving to be installed to any desired height, or to create a flat level walking surface on some slopping roofs.
Application
- Suitable for fixed and durable roof top paving.
- The adjustable pedestal system can be used in combination with all rooftop paving from Zoontjens.
Description

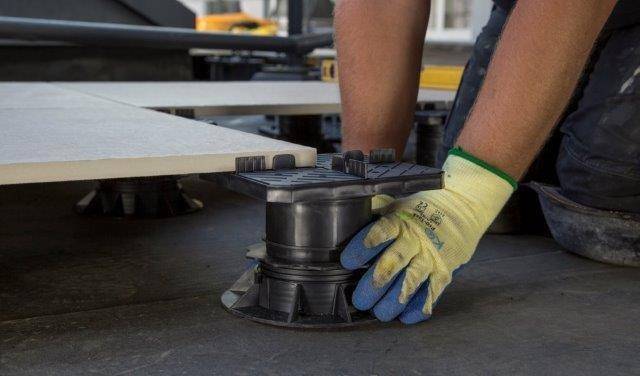

The adjustable system consists of adjustable bases (two sizes with specific height envelopes) and heightening rings in three sizes. A laying plate is then placed on top, depending on the type of slab to be used. The adjustable base is simply twisted to achieve the required height.
Depending on the rooftop paving type selected a lockplate, a fixplate, a fixplate lock or an edge support disc are fitted on top. Each laying plate, distinct and matching the slab, provides a fixed and durable system.
Features and benefits:
- Minimum height is 35 mm and the maximum height 74 mm (excluding the heightening element).
- Rings can be mounted on to the base, to raise the height further.
- Rings are available in heights of 13, 24 mm and 48 mm.
- Total maximum lift of 266 mm.
- Maximum load is 1000 kg.
General information
Color | Black |
Material | Recycled plastic |
Shape | Circle Square |
Height | 35 mm 74 mm 13 mm 24 mm 48 mm |
Uniclass | |
CAWS | J42/467 Support system for precast concrete paving slabs J41/467 Support system for precast concrete paving slabs J21/467 Support system for precast concrete paving slabs J31/377 Support system for paving slabs or tiles Q37/460 Support pedestals Q55/395 Support pedestals |
Specification data - Decking and paving pedestals
Pedestal type | Adjustable. |
Grade | 1000 kg. |
Material | Recycled polypropylene. |
Adjustment | 35–74 mm.Guidance for specification option: Excluding the heightening elements. |
Accessories | Not required.Height ring 48 mm.Height ring 24 mm.Height ring 13 mm.Lockplate.Fixplate.Fixplate lock.Edge support disk with strip.Edge support filter disk. |
Sustainability data
Recyclability | The product can be reused and can be recycled for new products. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
Brochure Adjustable pedestal system
