Peaceflow300 - Acoustic Louvre Screen

Name: Peaceflow300 - Acoustic Louvre Screen
Brand: Configured Platforms Ltd
SKU: 3ZYEnBrz8aGpuKMvixKEHG

Verified by manufacturer 3 days ago

Aesthetic, acoustic and airflow screens for Series 1, 2, 3 Platforms, Speedscreen, Boltscreen and Parascreen.

Jump to:

Application

To screen off plant and equipment from view on Series 1, 2, 3 Platforms, Speedscreen, Boltscreen and Parascreen.

Aesthetic, acoustic and airflow screens for Series 1, 2, 3 Platforms, Speedscreen, Boltscreen and Parascreen.

Features and benefits:

Clean straight lines for a tidy look.
Pre-assembled acoustic louvre.
All aluminium construction box frame and louvre profile.
Absorbent acoustic panels are hydrophobic, and performance is not affected by weather conditions.

Color	Grey Other
Finish	Mill Guidance for specification option: Frame. Powder-coated Guidance for specification option: Louvre sections.
Material	Aluminium Guidance for specification option: Extruded aluminium structure. Stainless steel Guidance for specification option: Fixings.
Shape	Square Guidance for specification option: Posts. Rectangle Guidance for specification option: Louvre sections.
Length	Bespoke Guidance for specification option: Any 600 mm increment length around the perimeter.
Height	Bespoke Guidance for specification option: In 400 mm increments.
Warranty description	20 year

Uniclass	Pr_30_59_48_04 Aluminium louvre panel unitsPrimary
CAWS	Q40/30 Proprietary fencing Q40/430 Proprietary fencing

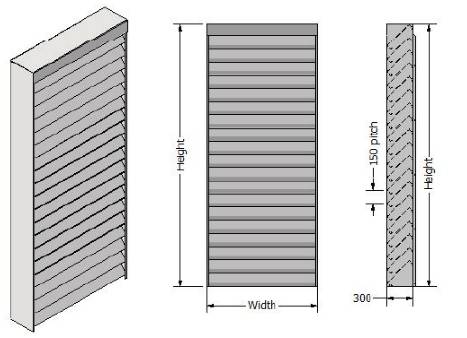

Size (l x w x d)	- Manufacturer guidance Any size in 600 mm increments in length around the perimeter and 400 mm increments in height. Insert requirements or refer to a drawing.
Material	Extruded aluminium.
Finish	Mill finish frame, powder-coated louvres.
Colour	- Manufacturer guidance To suit project requirement - available in any RAL colour. Insert requirements.
Construction	Stainless steel bolted and screwed construction.
Louvre configuration	-
Blade orientation	Horizontal.
Blade pitch	100 mm.
Accessories	Not required. Self closing door. Double doors.

Free area	75% free area for airflow.
Support system	Speedscreen. Parascreen. Boltscreen.

Material	Aluminium Guidance for specification option: Extruded aluminium structure. Stainless steel Guidance for specification option: Fixings.
A1-A3 (production stage)	Embodied carbon as defined in BS EN 15804
Normalised unit	10 kg CO₂ eq/kg
Declared unit	10 kg CO₂ eq/kg Self-declared
Recyclability	100% recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 %
