Pedestal for Paving or Decking - WB MetalPad Class A Fixed Height

Name: Pedestal for Paving or Decking - WB MetalPad Class A Fixed Height
Brand: Wallbarn Ltd
SKU: dvghJ7syrwfL6eLG4BBB34

Verified by manufacturer 5 months ago

10 mm fixed height

Wallbarn Ltd

Third party certifications:

ISO 14001 Environmental Management Systems
Certificate type
ISO 9001 Quality Management
Certificate type
Load Tolerance Test Certificate
Certificate type

Fire-rated Fixed Height Pedestals - 10mm, 15mm & 20mm

Jump to:

BOS

+44 (0)20 8916 2222 Website

Application

For paving and decking applications including:

Flat roofs.
Podium decks.
Balconies.
Terraces.
Walkways.

Description

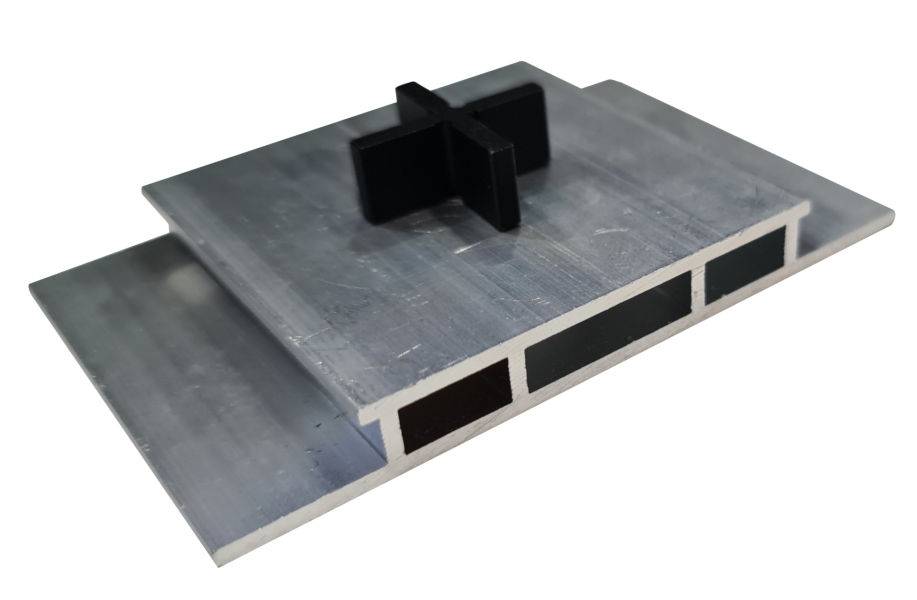

A versatile fixed height pedestal made from high-grade aluminium 6063 T6. For paving applications, the crucifix can be dropped into the central hole, which will separate the tiles and allow for better drainage. For decking, the fixed height pedestal is compatible with the rail headpiece, which is fixed by stainless steel screws to the pedestal. Aluminium joists can then be added to create a Class A substructure system.

Features and benefits:

Cost-effective for non-critical height requirements.
Available in 10 mm, 15 mm and 20 mm heights.
Can be placed directly onto concrete or other hard subfloors.
Compatible with the rail headpiece, which is fixed by stainless steel screws to the pedestal.
Designed, developed, and made in the UK.

General information

Color	Silver
Finish	Polished
Material	Aluminium
Shape	Rectangle Square
Length	60 mm 93 mm
Width	93 mm
Height	10 mm 15 mm 20 mm
Warranty description	15 year

Uniclass	Pr_20_85_47_22 Decking and paving pedestalsPrimary
CAWS	Q55/380 Deck boards Q55/110 Deck J31/377 Support system for paving slabs or tiles J31/375 Paving tiles J21/467 Support system for precast concrete paving slabs J41/467 Support system for precast concrete paving slabs Q55/395 Support pedestals Q37/460 Support pedestals J21/85 Precast concrete paving slabs J31/370 Precast concrete paving slabs

Product range	Substructure for Paving and Decking Systems Fire Rated Paving and Decking Systems

Specification data - Decking and paving pedestals

Pedestal type	Fixed height.
Material	Aluminium 6063 T6.

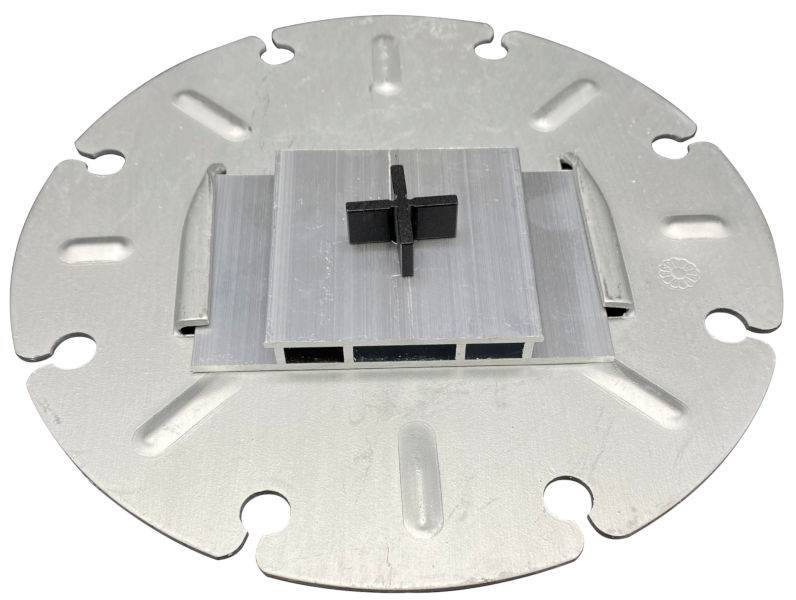

Accessories	Not required. Crucifix for paving. Guidance for specification option: Secures tiles/ slabs in position while also creating a drainage gap between them. Paving headpiece. Guidance for specification option: Can be attached to the pedestal with a single screw, adding 3 mm to the system's total height. Rail headpiece. Guidance for specification option: Compatible with Wallbarn's aluminium joist or any box rail/ joist up to 60 mm wide, also adding 3 mm to the system's height. Spreader plate. Guidance for specification option: Suitable for hard subfloors such as concrete. For vulnerable subfloors such as insulation, the Wallbarn spreader plate is available to reduce point loading and disperse weight over a 185 mm diameter.

Fire classification	To BS EN 13501-1, Class A1.
Weight	0.062 kg.
Dimensions	10 x 93 x 60 mm. Guidance for specification option: H x W x L.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Aluminium
Recyclability	100% Guidance for specification option: 100% Recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
