Pedestrian Control Automatic Gate – Qwicket - Pedestrian Gate
Verified by manufacturer 29 days ago

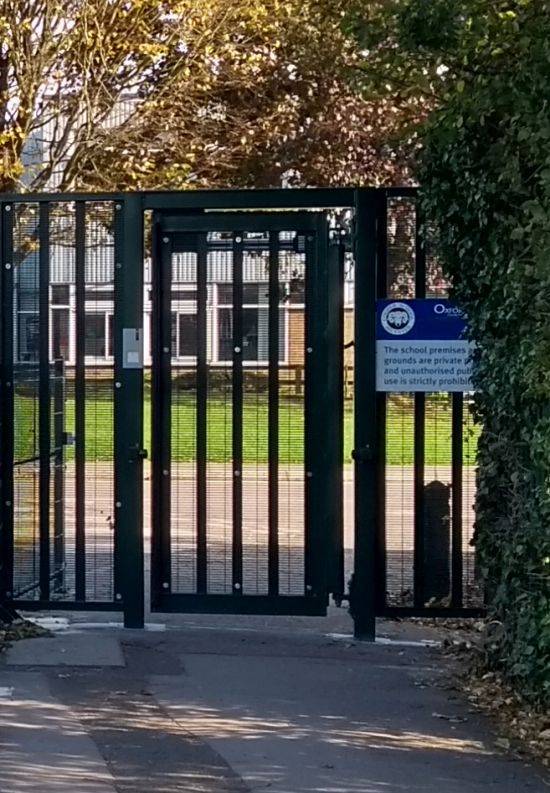

An automatic hinged/ swing pedestrian gate.
Application
For secure sites, where personnel access needs to be restricted or controlled. Suitable for use as a pedestrian access point adjacent to a vehicle gate within the fence line. Frequently installed adjacent to turnstiles to provide DDA pedestrian access.
Description
A fully-automatic pedestrian gate. On receipt of a signal from an actuation device such as push-button, the gate leaf unbolts (if specified), opens automatically to 90°, closes, re-bolts and switches off in a standard 15-second operating cycle. The overhead motor is fully enclosed. Available in two width options.
Features and benefits:
- 100% duty rating – designed for continuous and frequent use.
- Can be interfaced to any access control systems.
General information
Finish | Painted Guidance for specification option: Shot blasted, hot zinc sprayed, primed and finished with a final coat of polyurethane paint to a BS or RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493. |
Material | Steel |
Shape | Rectangle |
Width | 750 mm 1000 mm |
Height | 2050 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q40/570 Gates |
Product range |
Specification data - Carbon steel gates
Standard | To BS EN 7036. |
Dimensions | |
Span | 750 mm.1000 mm. |
Height | 2050 mm. |
Posts | Square, 100 mm. |
Gate leaves | Guidance for specification option: Depending on dimensions. |
Hardware | |
Hinges | Required.Guidance for specification option: Hinges with hinge protection. |
Securing | Locking bolt. |
Operating | Automatic with gate back actuator. |
Finish as delivered | |
Worked finish | Shot blasted. |
Applied finish | Polyurethane painted.Guidance for specification option: Hot zinc sprayed, primed and finished with a final coat of polyurethane paint to a BS or RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493. |
Colour | Guidance for specification option: Insert BS or RAL requirement. |
Fixing | Floor mounted. |
Closer | Hydraulic closer. Maglock. |
Actuation | Gate back actuator. |
Controls | Audio intercom. Card reader. Digital keypad. GSM intercom. Push button. |
Accessories | Cowled Exit Switch. Guidance for specification option: Prevents unauthorised use from pedestrian reach. Signs. Infill. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
Pedestrian Control Turnstiles & Gates
