Pedestrian Handrail (HR50)
Verified by manufacturer 3 months ago

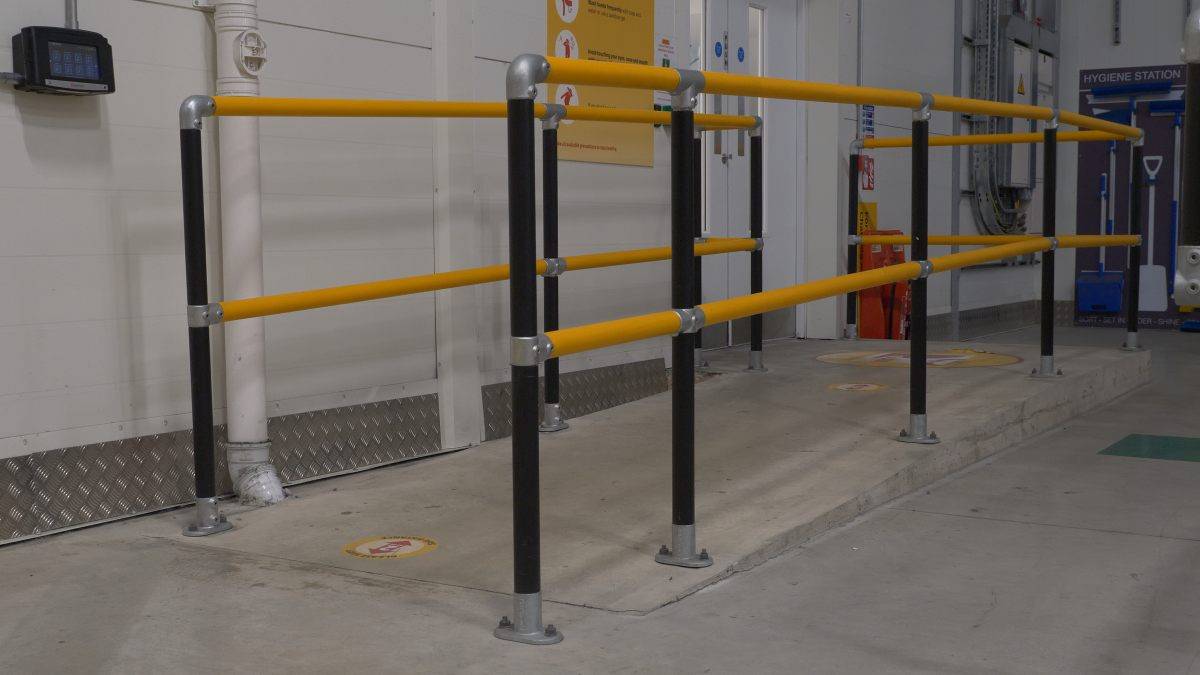

Pedestrian Handrail 50: Enhanced safety with a modular galvanized system. Distinctive yellow and black sleeves, smooth transitions, and easy installation. Suitable for Armco barrier systems.
Application
Product applications for the Pedestrian Handrail (HR50):
- Industrial Facilities: Enhance safety by using the Pedestrian Handrail (HR50) to create designated pedestrian paths, segregating foot traffic from machinery and vehicles, thus preventing potential accidents in busy industrial settings.
- Food Production Facilities: Implement the safety barrier in food processing areas to maintain a clear separation between workers and equipment, ensuring hygienic operations and minimizing the risk of collisions.
- Freezer Environments: The Pedestrian Handrail (HR50) durable construction and ability to withstand extreme temperatures make it ideal for use in freezer storage areas, providing clear demarcation and safety for personnel navigating in sub-zero conditions.
- Warehouses: Create safe pedestrian walkways with the Pedestrian Handrail (HR50) throughout warehouses, ensuring efficient movement of personnel while preventing accidents in spaces where forklifts and other equipment are present.
Description
Pedestrian Handrail 50: Modular Galvanized Upright and Component Pedestrian Handrail System
Features and Benefits:
- Yellow and black polymer safety sleeves make pedestrian routes stand out.
- Smooth transitions across modular components and warm-to-touch qualities ensure compliance with the Equality Act.
- Suitable for use with Armco barrier systems.
- Designed to slide over 42.4 mm galvanized rails and uprights (external diameter – 50 mm).
- Can be cut to length on-site using a simple chop-saw cutting process.
- Extruded in the UK from high-density polyethylene.
- Supplied in kit form, including fixings.
General information
Color | Black Yellow Manufacturer guidanceYellow and black |
Finish | Galvanized Powder-coated |
Material | High density polyethylene (HDPE) Steel |
Shape | Other Circle |
Length | Bespoke |
Width | 50 mm |
Height | 1100 mm |
Uniclass | |
CAWS | Q41/240 Handrail systems Q41/240 Handrail systems |
Specification data - Handrail systems
Handrails | Modular galvanized steel handrail. |
Product Reference | Pedestrian Handrail 50 |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Pedestrian Handrail (HR50) - Brandsafe Spec Sheet
