PLUS angled handrail
Verified by manufacturer 17 days ago

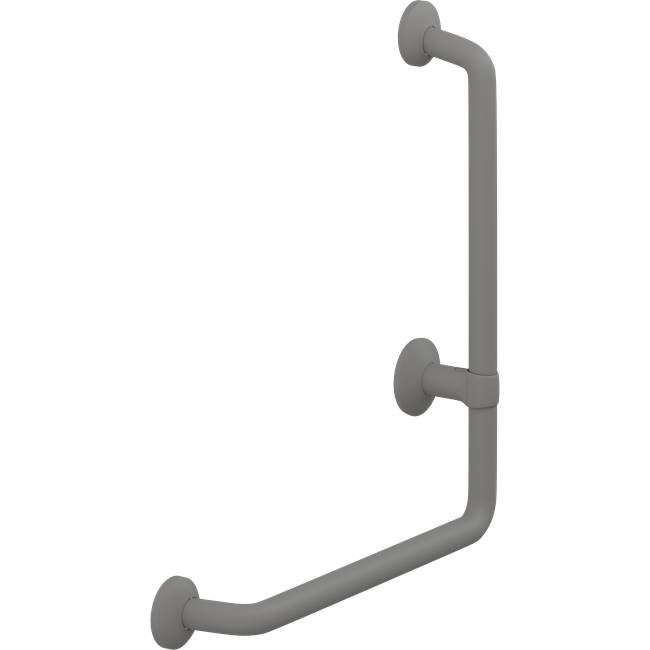

RT114 - 90°
RT114 - 90°
Angled support handrail.
Application
Suitable to support walking and standing users in the bathroom or for assisting seated users who need help getting up.
Description
Angled support handrail.
Features and benefits:
- Pressalit handrails are available in a range of configurations, designed to provide stable support in any situation.
- 33 mm diameter and 50 mm clear projection from the wall make the rails easy to take hold of.
- Constructed of aluminium with a polyester lacquer, the rails will not rust and are not cold to the touch.
- Better wall coverage - easier to use to stretch up and use soap dish on horizontal element.
- Can be left or right facing.
Maximum weight:
- Span up to 1000 mm: 210 kg.
- Span up to 1300 mm: 150 kg.
General information
Color | White Blue Grey Red |
Finish | Powder-coated |
Material | Aluminium |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | N13/436 Handrails and grab bars |
Specification data - Support rails
Form | Fixed, wall mounted. |
Diameter | 33 mm. |
Materials | |
Body | Aluminium and cycoloy plastic. |
Finish and colour | Polyester lacquer powder coated, dark blue.Polyester lacquer powder coated, white.Polyester lacquer powder coated, red.Polyester lacquer powder coated, anthracite grey. |
Integral accessories | Wall rosette. |
Corner handrail | Not required. RT124. Guidance for specification option: 762 x 475 mm corner (horizontal) handrail. RT126. Guidance for specification option: 762 x 762 mm corner (horizontal) handrail. RT128. Guidance for specification option: 762 x 1200 mm corner (horizontal) handrail. RT136. Guidance for specification option: 762 x 762 mm corner (horizontal) handrail, with 1090 mm connecting vertical rail. |
Rail section | Not required. RT300. Guidance for specification option: 300 mm tube component with male and female connecting joints. RT303. Guidance for specification option: 1200 mm tube component with male and female connecting joints. RT307. Guidance for specification option: 2400 mm tube component with male and female connecting joints. |
Rail section with corner strap | Not required. RT330. Guidance for specification option: 365 mm tube component with one wall rosette and 90° connection to horizontal or vertical rail. RT331. Guidance for specification option: 652 mm tube component with one wall rosette and 90° connection to horizontal or vertical rail. RT332. Guidance for specification option: 790 mm tube component with one wall rosette and 90° connection to horizontal or vertical rail. RT333. Guidance for specification option: 1090 mm tube component with one wall rosette and 90° connection to horizontal or vertical rail. |
Angled rail component with horizontal angle | Not required. RT345. Guidance for specification option: Corner angle component (horizontal), 762 x 154 mm, internal 90° angle with one wall rosette and male connecting joint, reversible - right/left. |
Rail component including wall rosette | Not required. RT320. Guidance for specification option: 321 mm tube component with one wall rosette with female connecting joint. RT321. Guidance for specification option: 608 mm tube component with one wall rosette with female connecting joint. RT322. Guidance for specification option: 746 mm tube component with one wall rosette with female connecting joint. RT323. Guidance for specification option: 1046 mm tube component with one wall rosette with female connecting joint. |
Angled rail component with vertical angle including wall rosette | Not required. RT340. Guidance for specification option: Corner angle component right (horizontal), 400 x 154 mm, internal 90° angle with one wall rosette and male connecting joint. RT341. Guidance for specification option: Corner angle component left (horizontal), 400 x 154 mm, internal 90° angle with one wall rosette and male connecting joint. |
Fittings | Not required. RT350. Guidance for specification option: 90° angle component, 154 x 154 mm, including male and female connecting joints. RT360. Guidance for specification option: Wall rosette mounting component with strap for connection to rail. RT361. Guidance for specification option: Wall rosette mounting component with strap and rail connector with male and female connecting joints. RT362. Guidance for specification option: Rail to rail component connector (horizontal/ vertical). |
Profile | 400 x 475 mm. |
Projection | 50 mm. |
Angle | 90°. |
Facing | Right. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Denmark |
Country of product manufacture | Denmark |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 3 |
 IFC | IFC2X3 | 2 |
Literature
Accessibility Solutions for Bathrooms
Case studies
Addington School 6th form block in Woodley
Blackwood House Bathroom
