Plymouth Wave Canopy - Modular canopy, open sided shelter

Verified by manufacturer 6 months ago

BXMW/PLY

Broxap Street Furniture Third party certifications:
  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • BBA AgrĂ©ment Certificate

    BBA Agrément Certificate

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • FSC

    FSC

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Rospa Safety Charity

    Rospa Safety Charity

    Certificate type

  • CQMS

    CQMS

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

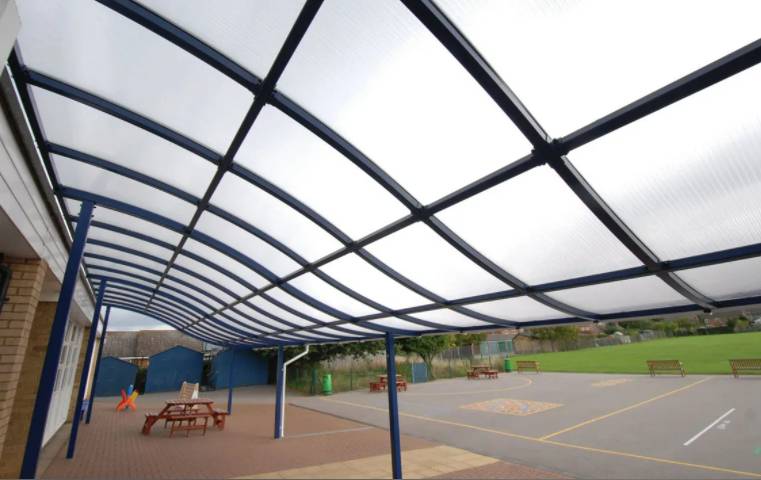

Curved entrance canopy.

Jump to:
BOS
+44 (0)1782 571700 Website

Application

Suitable for a large range of canopy applications including waiting areas, walkways, dining areas, outdoor learning/play areas, covered entrances and other external pedestrian spaces.

Broxap specialise in designing canopies and covered walkways that provide structurally sound and stylish solutions for every type of external requirement. Whether it's standard or customised designs, all canopies work to complement our entire street furniture range.

Canopies and covered walkways are available in both traditional or contemporary styles, these which include glazed structures, polycarbonate canopies, timber structures, cast iron and fabric canopies. In addition, Broxap also have a number of roofing options, which include transparent polycarbonate, glass solutions or opaque architectural cladding.

The versatile canopy styles, materials and flexibility in design means that our canopies suit any application. Uses can include a playground canopycanopies, outdoor dining areas, and passenger waiting shelters, to name a few. Canopies are available as standard or bespoke designed to any requirements

Covered walkways provide a cost effective solution to create a link walkway. Suitable for many purposes from universities and hospitals to shopping arcades and schools. Covered walkways provide a link walkway between existing buildings, providing protection from the weather. Changes in height, direction and roof profile are all easily integrated into our walkway offering which is bolstered by our Design and Build service.

Bespoke Canopies And Walkways

As part of the bespoke Design and Build service, we offer a complete bespoke solution from the initial consultancy through to the installed and finished product. As part of our bespoke canopies and walkways service, they also offer optional extras such as the inclusion of guttering, side screens, solar lighting, a colour range, as well as other add-ins.

Bringing versatility to every outdoor space, the canopies and shelters range from Broxap opens up the possibility of fresh opportunities, new ventures and innovative uses for existing site assets. With a canopy or shelter, outdoor areas are reimagined and given a new lease of life with function and purpose.

Description

The Plymouth Wave Senior is a contemporary structure that makes a fantastic entrance canopy or covered area, it is modular in construction allowing further stages to be added.


The curved roof of this Plymouth Wave Canopy gives a wonderful feel of space beneath and with minimal supports is not intrusive to any environment. Ideal for use as an outdoor classroom or outdoor dining area.


Features and benefits:

  • Various sizes & bespoke versions available
  • Trapezoidal Roof Cladding (other finishes available)
  • Rain guttering
  • Internal lighting or solar lighting
  • ClearView PETg UV roof
  • Robust tough construction
  • Angled roof to shed rainwater to the rear
  • Anti-climb end frames
  • Submerged fixing
  • Welded end frames and purlin section made from heavy-duty box section assembled with anti-tamper high strength bolts.
  • Hot dipped galvanized to BS EN ISO 1461:2009.
  • Installation service available.

General information

Color

Finish

Galvanized

Primed

Powder-coated

Material

Steel

Polycarbonate

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Guidance for specification option:

12 months parts and labour, including 10 years' guarantee and 50 year design life

Uniclass

Pr_20_65_78_58 Open-sided sheltersPrimary

CAWS

B91/330 Canopy

B91/385 Shelter

Specification data - Open-sided shelters

Shelter description

Plymouth Wave Canopy

Dimensions

-

Plan size

4100 x 4000 mm.

5000 x 4000 mm.

Frame

-

Finish

Galvanized.

Polyester Powder Coated.

Zinc Rich Primer.

Colour

Cobalt Blue RAL 5013.

Goose Grey BS 4800 00-A-05.

Holly Green BS 4800 14-C-39.

Jet Black RAL 9005.

Nimbus Grey BS 4800 10 A 07.

Sky Blue RAL 5015.

Traffic Red RAL 3020.

Traffic White RAL 9016.

Traffic Yellow RAL 1023.

Anthracite Grey RAL 7016.

Roof covering

16 mm Multiwall Clear.

16 mm Multiwall Opal.

16 mm Multiwall Amber.

Trapezoidal profile 1000/32.

5 mm PETg UV ClearView.

Openings

-

Doors

Aluminium Door.

Fixed PETg UV Clad Side Panels.

Roller Shutter Doors.

PVC Roller Blinds.

Rainwater drainage

PVC Guttering.

Aluminium Guttering.

Accessories

Surface baseplates.

Submerged Baseplates.
