Pocket Doors - Single - Sliding Single Door Frames

Verified by manufacturer today

70 mm pocket

Rocket Door Frames Ltd Variant:

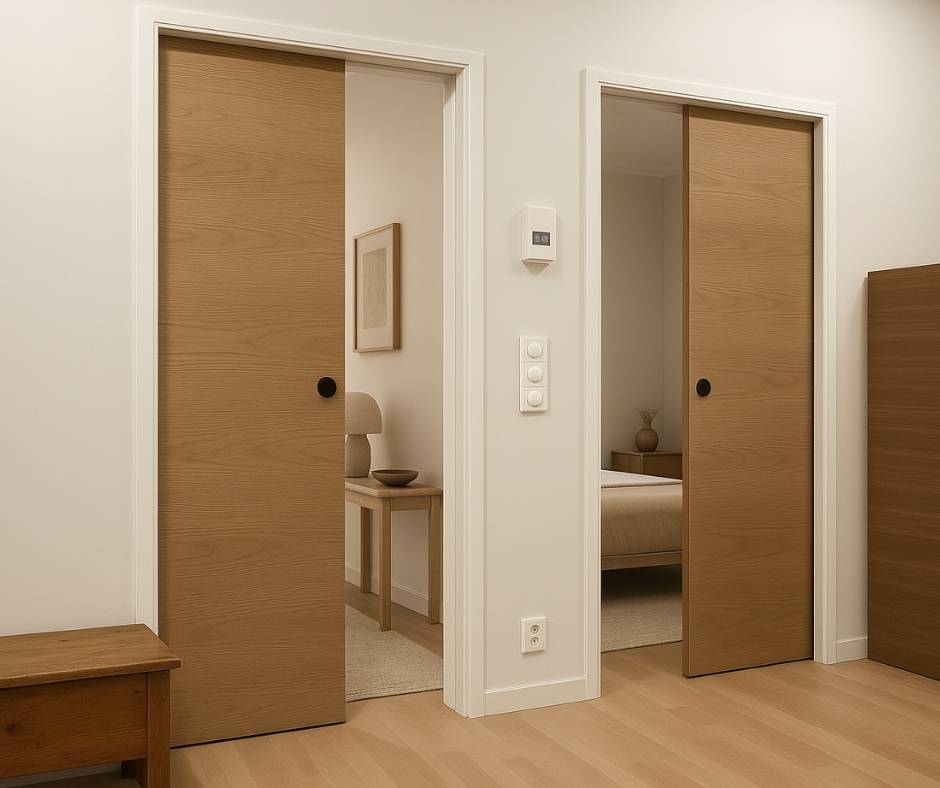

Sliding pocket single door frames in a range of sizes.

Jump to:
BOS
0330 998 0617 Website

Application

Sliding pocket door frames for internal use.

Description

Transform your space with the Rocket Door Frames single sliding pocket door frame. This system allows a door to slide and disappear into the wall, saving you valuable floor space. It's a simple, effective solution for creating a clean and modern look in any room.

Key Features:

Stud Work: The available widths are 70 mm, 75 mm, and 90 mm, which result in finished wall thicknesses ranging from 95 mm to 125 mm for our non-fire-rated pocket door frames. For the FD30 fire-rated kit, the finished wall thicknesses are 120 mm, 125 mm, and 140 mm.

Durability: Supports doors weighing up to 60 kg, ensuring reliable performance with most standard doors.

Wide Door Compatibility: Compatible with doors measuring 35 mm and 44 mm in thickness, supporting diverse design preferences (door sold separately).

Fire-Rated Option: An FD30 fire-rated version is available for enhanced safety and compliance.

Easy to Install: Our frame comes packaged in a compact tube, making it incredibly easy to move around the job site. The kit includes straightforward, easy-to-follow instructions for a hassle-free installation.

If you or your team have any questions during installation, our dedicated support team is always available to help.

Pocket Door Accessories

Jamb / Lining Kit: Provides a clean, professional finish for your installation with a fully finished door post.

Soft Close: A German-engineered system that gently and quietly closes the door, preventing slamming and reducing wear.

Self Close: This mechanism automatically and softly closes the door, ideal for high-traffic areas or for convenience and safety. Recommended with our Soft Close.

Push to Open: Allows you to open a fully recessed door with a simple push, making it spring out from the pocket.

Flush Handles and Locks: Choose from our minimalist flush pulls (available in round or square satin and round matt black) and matching bathroom thumb turns (round matt black, satin round, and square) for a sleek, unobtrusive look.

Note: Door, jambs, architrave, and handles are sold separately. Please ensure your chosen door's specifications are compatible with this frame

General information

Finish

Galvanized

Material

Steel

Shape

Rectangle

Width

Bespoke

Height

Bespoke

Warranty description

12 year

Guidance for specification option:

Against against manufacturing and material defects; consult manufacturer for details.

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/525 Sliding pocket doors

L20/65 Sliding pocket doors

Specification data - Sliding door and partition sets

Classification data

Arrangement

Pocket door, 70 mm pocket.

Track system

Manufacturer's standard.

Door leaves

-

Construction

To suit door panel 610 x 1981 mm.

Guidance for specification option:

2' 0" x 6' 6".

Overall dimensions (width x depth): 1233 x 2042 mm.

Passage (without jamb kit): 609 mm.

Pocket width: 624 mm.

Finished passage (width x height; including jam kit): 585 x 1979 mm.

To suit door panel 686 x 1981 mm.

Guidance for specification option:

2' 3" x 6' 6".

Overall dimensions (width x depth): 1385 x 2042 mm.

Passage (without jamb kit): 685 mm.

Pocket width: 700 mm.

Finished passage (width x height; including jam kit): 661 x 1979 mm.

To suit door panel 762 x 1981 mm.

Guidance for specification option:

2' 6" x 6' 6".

Overall dimensions (width x depth): 1537 x 2042 mm.

Passage (without jamb kit): 761 mm.

Pocket width: 776 mm.

Finished passage (width x height; including jam kit): 737 x 1979 mm.

To suit door panel 838 x 1981 mm.

Guidance for specification option:

2' 9" x 6' 6".

Overall dimensions (width x depth): 1689 x 2042 mm.

Passage (without jamb kit): 837 mm.

Pocket width: 852 mm.

Finished passage (width x height; including jam kit): 813 x 1979 mm.

To suit door panel 914 x 1981 mm.

Guidance for specification option:

3' 0" x 6' 6".

Overall dimensions (width x depth): 1841 x 2042 mm.

Passage (without jamb kit): 913 mm.

Pocket width: 928 mm.

Finished passage (width x height; including jam kit): 889 x 1979 mm.

To suit door panel 626 x 2040 mm.

Guidance for specification option:

Overall dimensions (width x depth): 1264 x 2101 mm.

Passage (without jamb kit): 624 mm.

Pocket width: 640 mm.

Finished passage (width x height; including jam kit): 600 x 2038 mm.

To suit door panel 726 x 2040 mm.

Guidance for specification option:

Overall dimensions (width x depth): 1464 x 2101 mm.

Passage (without jamb kit): 724 mm.

Pocket width: 740 mm.

Finished passage (width x height; including jam kit): 700 x 2038 mm.

To suit door panel 826 x 2040 mm.

Guidance for specification option:

Overall dimensions (width x depth): 1664 x 2101 mm.

Passage (without jamb kit): 824 mm.

Pocket width: 840 mm.

Finished passage (width x height; including jam kit): 800 x 2038 mm.

To suit door panel 926 x 2040 mm.

Guidance for specification option:

Overall dimensions (width x depth): 1864 x 2101 mm.

Passage (without jamb kit): 924 mm.

Pocket width: 940 mm.

Finished passage (width x height; including jam kit): 900 x 2038 mm.

Manufacturer guidance

Door leaf to be specified separately.

Operation

Manual, with soft brake.

Hardware

Guidance for specification option:

Insert requirements or omit if to be specified separately.

Accessories

Guidance for specification option:

Consult manufacturer for options and insert requirements or omit.

Configuration/ Design

With 63 mm CLS timber stud, 12.5 mm plasterboard to both sides.

Guidance for specification option:

Insert details, drawing or schedule references as required.

Finished wall thickness: 95 mm.

6 mm plasterboard section added to timber stud to achieve 70 mm pocket.

With 70 mm steel stud, 12.5 mm plasterboard to both sides.

Guidance for specification option:

Insert details, drawing or schedule references as required.

Finished wall thickness: 95 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Material

Steel

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %
