Polyflor EC Tiles
Verified by manufacturer 2 months ago
Floor tiles for ESD protection.
Application

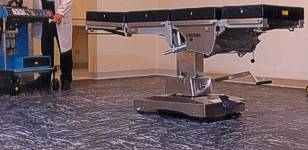

For use in electronics manufacturing - wafer fabrication, product assembly, inspection and storage; laboratories; clean rooms and defence establishments. Also for healthcare facilities where gases and/or electronic equipment are used during medical procedures - operating theatres, anaesthetizing areas, intensive-care units and radiology departments.
Description
Marbleized black and grey floor tiles, engineered for ESD protection and designed for various applications up to light industrial installation.
Features and benefits:
- A conductive earthing grid should be installed as per Polyflor instructions.
- Polyflor EC is 100% recyclable, through Recofloor and contains 25% recycled material.
- It achieves a generic BRE A+/A rating and generic EN 15804 EPD.
- Hardwearing.
- Electrostatic conductive properties.
Electrical performance:
- EN 1815 < 2 kV.
- EN 1081 R1/R2 5 x 10^4 - 1 x 10^6 Ohms.
- ESD S 7.1 - 5 x 10^4 - 1 x 10^6 Ohms.
- BS EN/IEC 61340-4-1 RG 5 x 10^4 - 1 x 10^6 Ohms.
- BS EN/IEC 61340-4-5 - <100v.
The quoted electrical resistance readings are obtained only when the materials are installed according to the instructions laid down in the Polyflor Technical Information Manual and tested in accordance with the specified standard.
General information
Color | Black Grey |
Material | Homogeneous vinyl |
Shape | Square |
Length | 608 mm |
Width | 608 mm |
Height | 2 mm |
Uniclass | |
CAWS | M50/10 Resilient floor tiling M50/110 Resilient floor tiling |
Specification data - Polyvinyl chloride (PVC) tiles
Standard | To BS EN 649 and BS EN ISO 10581. |
Use class | To BS EN ISO 10874, class 34 and 43. |
Slip potential | |
Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum) | R9. |
Recycled content | 25%. |
Size | 608 x 608 mm. |
Thickness | 2 mm. |
Colour and pattern | Black/Grey. |
Sustainability data
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % |
