PPG STEELGUARD Intumescent Fire Protection Coating System - C1 / C2 / Internal - Water Based - 30-120 Minutes - Intumescent Coating System

A complete intumescent coating system providing 30/ 60/ 90 or 120 minutes internal fire protection within C1/ C2 environments (ISO 12944).

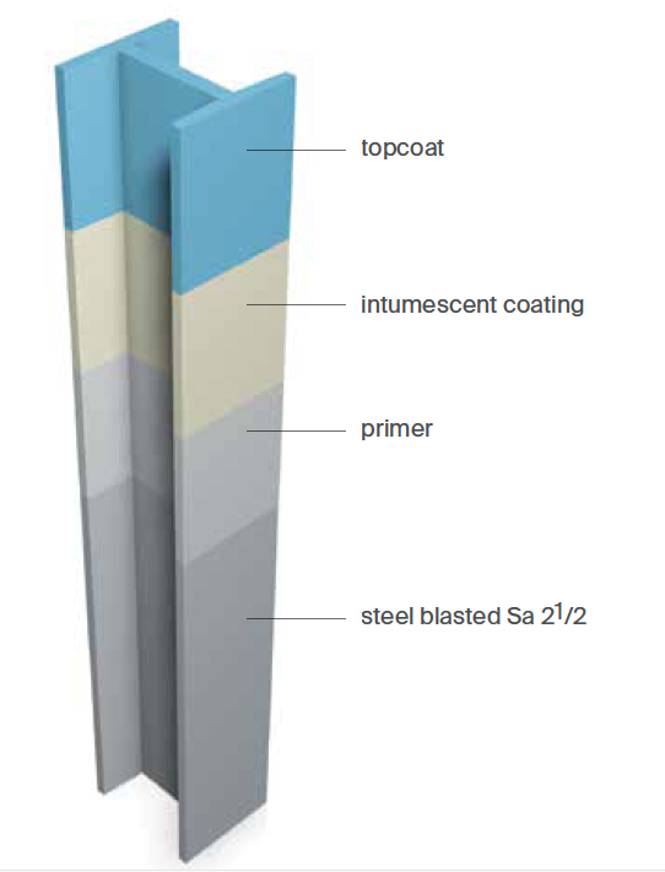

Composition:

Primer:

• SigmaFast 205 – fast drying epoxy zinc-phosphate.
• Contact PPG for other STEELGUARD approved primer options.

Intumescent coating:

• STEELGUARD 651 – water-based – internal – on-site application.

Topcoat:

Optional for decorative purposes.

• STEELGUARD 2458 – one-component, solvent borne acrylic finish
• Contact PPG for other STEELGUARD approved topcoat options

Features and benefits:

• Low VOC – contributing to a greener environment.
• Up to 120 minutes fire protection.
• Covering a wide range of temperatures from 350°C (660°F) to 750°C (1380°F).
• High volume solids.
• Meets the latest standards (including EN 13381-8:2013 and BS 476 Parts (20/21)).
• Fully tested for all conventional profiles.
• Meets ISO 12944-2 C1* and C2 internal environments and ETAG 018-2 Z2* and Z1, Y and X durability categories.
• CE-marking.
• Easy to apply on-site – one component product.
• Dry to touch within 2 hours at 20°C (68°F).
• Efficient – can be applied up to 700 µm (28 mils) DFT per layer.
• Backed up with access to our global engineering support network.
