Name: Prestige Colour - Nexus layouts - Mineral Tile Suspended Ceiling System
Brand: Zentia
SKU: qyGd8q54GTCP3osMuqpnkb

Color

Black

Grey

Finish

Smooth

Textured

Material

Mineral fibre

Steel

Shape

Square

Rectangle

Length

600 mm

Guidance for specification option:

Ceiling tiles.

1200 mm

Guidance for specification option:

Ceiling tiles.

Bespoke

Guidance for specification option:

Overall system.

Width

600 mm

Guidance for specification option:

Ceiling tiles.

Bespoke

Guidance for specification option:

Overall system.

Height

19 mm

Guidance for specification option:

Ceiling tiles.

Bespoke

Guidance for specification option:

Overall system.

Warranty description

30 year

Guidance for specification option:

System guarantee.

Uniclass

Ss_30_25_22_51 Modular suspended ceiling systemsPrimary

CAWS

K40/10 Unit/ modular suspended ceilings

K40/105 Suspended ceiling system

K40/115 Unit/ modular suspended ceiling system

Classification data

System performance

Guidance for specification option:

Insert requirements.

Ceiling support

Gridline 24 butt cut and joggled, Global White.

Guidance for specification option:

Comprises:

BPGMR243600 Gridline 24 Peak form Main Runner slotted 3600 x 24 x 43 mm (72 linear m/ 20 pieces);
BPGXTB24600 Gridline 24 Square Bulb B Cross Tee unslotted 600 x 24 x 38 mm (36 linear m/ 60 pieces);
BPGXTB241200 Gridline 24 Peak form B Cross Tee slotted 1200 x 24 x 38 mm (72 linear m/ 60 pieces);
BPGXTJ24600 Gridline 24 J Cross Tee unslotted 600 x 24 x 38 mm (36 linear m/ 60 pieces);
BPGXTJ241200 Gridline 24 J Cross Tee slotted 1200 x 24 x 38 mm (72 linear m/ 60 pieces).

Gridline 24 butt cut and joggled, Black.

Guidance for specification option:

Comprises:

BPGMR243600BK Gridline 24 Peak form Main Runner slotted 600 x 24 x 43 mm (72 linear m/ 20 pieces);
BPGXTB24600BKA Gridline 24 Square Bulb B Cross Tee unslotted 600 x 24 x 38 mm (36 linear m/ 60 pieces);
BPGXTB241200BKA Gridline 24 Peak form B Cross Tee slotted 1200 x 24 x 38 mm (72 linear m/ 60 pieces);
BPGXTJ24600BK Gridline 24 J Cross Tee unslotted 600 x 24 x 38 mm (36 linear m/ 60 pieces);
BPGXTJ241200BK Gridline 24 J Cross Tee slotted 1200 x 24 x 38 mm (72 linear m/ 60 pieces).

Manufacturer guidance

Gridline 24 Cross Tees are designed to work with Gridline 24, a 24 mm exposed grid system for suspended ceilings. These cross tees come with standard SureLock clip for secure connections to main runners, providing better alignment for easier ceiling installation and easy disconnection when access to the ceiling soffit is required.

Baked polyester paint finish.

Butt cut colour option also available on request; consult manufacturer for details.

Support fasteners

Guidance for specification option:

Insert requirements to suit substrate.

Ceiling units

1200 x 600 and 600 x 600 mm board edge 19 mm-thick mineral tiles.
Mixture of Black (BK1), Light Grey (GY1) and Mid Grey (GY2) in prescribed pattern.

Guidance for specification option:

Combination of tiles:

600 x 600 mm in black (BP7661M4BBK1), light grey (BP7661M4BGY1) and mid grey (BP7661M4BGY2);
1200 x 600 mm in black (BP7663M4BBK1), light grey (BP7663M4BGY1) and mid grey (BP7663M4BGY2).

Manufacturer guidance

Tegular24 tiles are also available, consult manufacturer for details.

Black: RAL 000 85 00.
Light grey: RAL 000 65 00.
Mid grey: RAL 9005.

Other colours on request; consult manufacturer for details.

Barriers in ceiling void

Fire barriers

Guidance for specification option:

Consult manufacturer for options and insert requirements, or omit.

Acoustic barriers

Guidance for specification option:

Consult manufacturer for options and insert requirements, or omit.

Plenum barriers

Guidance for specification option:

Consult manufacturer for options and insert requirements, or omit.

System accessories

Single tee adaptor clip (BPSTAC).

Other.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

None.

Weight

Infill units: 5 kg/m².

Reaction to fire

To EN 13501-1, infill units: Euroclass A2-s1, d0; support grid: Euroclass A1.

Sound absorption

Infill units: 0.45 to 0.60(H); class C to D.

Manufacturer guidance

Weighted sound absorption coefficient (alpha w). Rating for random incidence sound absorption determined in accordance with EN ISO 11654. Measured values obtained in accordance with EN ISO 20354 are converted into octave bands, plotted on a graph and compared to a standard reference curve until a 'best fit' is obtained. The derived αw will vary between 0.00 and 1.00.

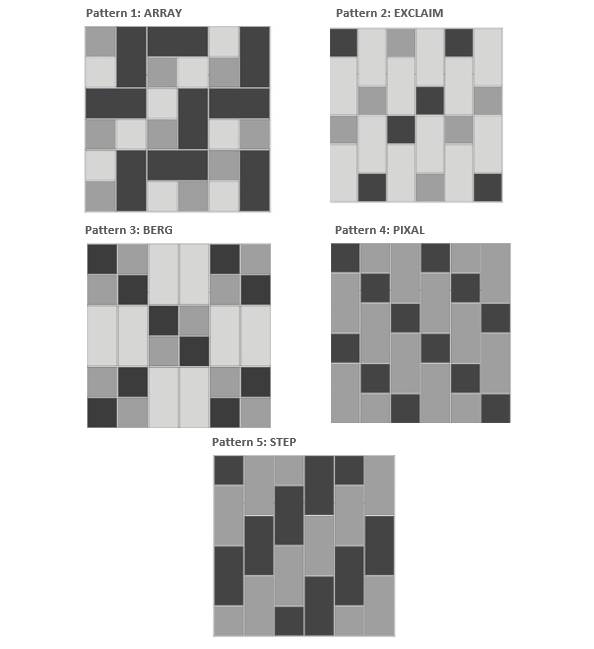

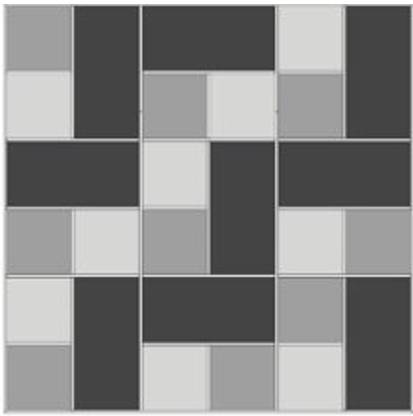

Design

ARRAY.

Manufacturer guidance

Consult manufacturer for details.

Contains Red List materials

Country of material origin

Europe

Country of product manufacture

United Kingdom

Material

Mineral fibre

Steel

Carbon dioxide equivalent

Carbon dioxide equivalent, as defined in BS EN 15804

Self-declared

Stage

Normalised unit (kg CO₂ eq/kg)

Declared unit (kg CO₂ eq/m²)

Stage:A1–A3 ('Production stage')

Normalised unit :

Declared unit : 5.26

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

76 %

Guidance for specification option:

Infill units.

Color	Black Grey
Finish	Smooth Textured
Material	Mineral fibre Steel
Shape	Square Rectangle
Length	600 mm Guidance for specification option: Ceiling tiles. 1200 mm Guidance for specification option: Ceiling tiles. Bespoke Guidance for specification option: Overall system.
Width	600 mm Guidance for specification option: Ceiling tiles. Bespoke Guidance for specification option: Overall system.
Height	19 mm Guidance for specification option: Ceiling tiles. Bespoke Guidance for specification option: Overall system.
Warranty description	30 year Guidance for specification option: System guarantee.

Classification data
System performance	Guidance for specification option: Insert requirements.
Ceiling support	Gridline 24 butt cut and joggled, Global White. Guidance for specification option: Comprises: BPGMR243600 Gridline 24 Peak form Main Runner slotted 3600 x 24 x 43 mm (72 linear m/ 20 pieces); BPGXTB24600 Gridline 24 Square Bulb B Cross Tee unslotted 600 x 24 x 38 mm (36 linear m/ 60 pieces); BPGXTB241200 Gridline 24 Peak form B Cross Tee slotted 1200 x 24 x 38 mm (72 linear m/ 60 pieces); BPGXTJ24600 Gridline 24 J Cross Tee unslotted 600 x 24 x 38 mm (36 linear m/ 60 pieces); BPGXTJ241200 Gridline 24 J Cross Tee slotted 1200 x 24 x 38 mm (72 linear m/ 60 pieces). Gridline 24 butt cut and joggled, Black. Guidance for specification option: Comprises: BPGMR243600BK Gridline 24 Peak form Main Runner slotted 600 x 24 x 43 mm (72 linear m/ 20 pieces); BPGXTB24600BKA Gridline 24 Square Bulb B Cross Tee unslotted 600 x 24 x 38 mm (36 linear m/ 60 pieces); BPGXTB241200BKA Gridline 24 Peak form B Cross Tee slotted 1200 x 24 x 38 mm (72 linear m/ 60 pieces); BPGXTJ24600BK Gridline 24 J Cross Tee unslotted 600 x 24 x 38 mm (36 linear m/ 60 pieces); BPGXTJ241200BK Gridline 24 J Cross Tee slotted 1200 x 24 x 38 mm (72 linear m/ 60 pieces). Manufacturer guidance Gridline 24 Cross Tees are designed to work with Gridline 24, a 24 mm exposed grid system for suspended ceilings. These cross tees come with standard SureLock clip for secure connections to main runners, providing better alignment for easier ceiling installation and easy disconnection when access to the ceiling soffit is required. Baked polyester paint finish. Butt cut colour option also available on request; consult manufacturer for details.
Support fasteners	Guidance for specification option: Insert requirements to suit substrate.
Ceiling units	1200 x 600 and 600 x 600 mm board edge 19 mm-thick mineral tiles. Mixture of Black (BK1), Light Grey (GY1) and Mid Grey (GY2) in prescribed pattern. Guidance for specification option: Combination of tiles: 600 x 600 mm in black (BP7661M4BBK1), light grey (BP7661M4BGY1) and mid grey (BP7661M4BGY2); 1200 x 600 mm in black (BP7663M4BBK1), light grey (BP7663M4BGY1) and mid grey (BP7663M4BGY2). Manufacturer guidance Tegular24 tiles are also available, consult manufacturer for details. Black: RAL 000 85 00. Light grey: RAL 000 65 00. Mid grey: RAL 9005. Other colours on request; consult manufacturer for details.
Barriers in ceiling void	-
Fire barriers	Guidance for specification option: Consult manufacturer for options and insert requirements, or omit.
Acoustic barriers	Guidance for specification option: Consult manufacturer for options and insert requirements, or omit.
Plenum barriers	Guidance for specification option: Consult manufacturer for options and insert requirements, or omit.
System accessories	Single tee adaptor clip (BPSTAC). Other. Guidance for specification option: Consult manufacturer for options and insert requirements. None.
Weight	Infill units: 5 kg/m².
Reaction to fire	To EN 13501-1, infill units: Euroclass A2-s1, d0; support grid: Euroclass A1.
Sound absorption	Infill units: 0.45 to 0.60(H); class C to D. Manufacturer guidance Weighted sound absorption coefficient (alpha w). Rating for random incidence sound absorption determined in accordance with EN ISO 11654. Measured values obtained in accordance with EN ISO 20354 are converted into octave bands, plotted on a graph and compared to a standard reference curve until a 'best fit' is obtained. The derived αw will vary between 0.00 and 1.00.
Design	ARRAY. Manufacturer guidance Consult manufacturer for details.
