PRODESO ECO - Membrane
Verified by manufacturer 8 days ago
An uncoupling and waterproofing membrane.
Application
Uncoupling and waterproofing membrane for cracked and not perfectly cured screed. It can be installed on cement based screed, old ceramic and natural stone floorings, not perfectly cured screed and wood substrates.
Do not use on bituminous coverings, to waterproof walkable surfaces and on lightweight screeds not suitable for tiling. Do not use adhesives containing solvents for the membrane laying.
Description
PRODESO ECO is an uncoupling and waterproofing membrane for problematic supports and horizontal surface of any size that does not require expansion joints in the screed before laying ceramic and natural stone tiles.
The product ensures the laying of every flooring also in case of cracked and not perfectly cured substrates and therefore wit h possible vapor pressure and in case of old tiles.

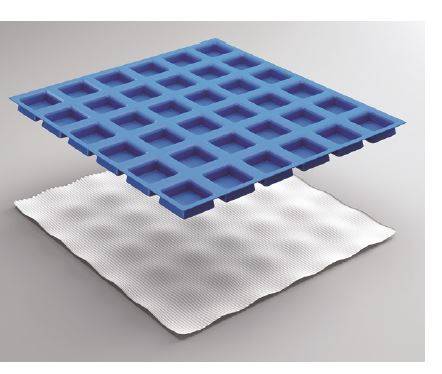

It is a membrane in high density polyethylene provided with a grid structure of square cavities, each cut back in a dovetail configuration. On the back side it is provided with a non-woven thermo-welded polypropylene fabric that guarantees the adhesion with the adhesive.
Very resistant to saline solutions, acids and alkalis, alcohol and oils. In case of particular products, contact our technical department.
General information
Color | Blue White |
Material | Polyethylene |
Shape | Rectangle |
Length | 30000 mm |
Width | 1000 mm |
Height | 3.5 mm |
Uniclass | |
CAWS | M10/290 Floating construction M10/40 Floating construction M13/260 Floating construction M13/40 Floating construction M40/5 Tiling to M40/110 Tiling to M40/115 Natural stone covering to M40/120 Mosaic to M40/470 Intermediate substrate T90/479 Underfloor electric heating mat M40/27 Intermediate substrate M40/10 Natural stone covering to |
Specification data - Plastics sheets
Material | Polyethylene |
Purpose | Uncoupling and waterproofing membrane. |
Standard | To EN 1849-2 and EN 12311-1. |
Form | Multi-layer. |
Physical properties | |
Colour | Cyan and white. |
Dimensions | |
Thickness (minimum) | 3.5 mm. |
Width (minimum) | 1 m. |
Breaking load | Longitudinal: 490 N/ 50 mm. |
Elongation | Longitudinal: 60%. |
Crack bridging | ≥1.5 mm. |
Thermal resistance | 0.030 m² K°/ W. |
Sustainability data
Material | Polyethylene |
Literature

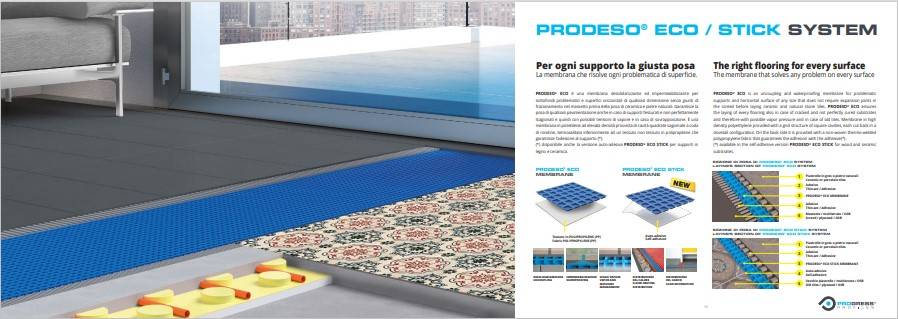

Prodeso Eco
