PROMATECT®-250 4 Sided Column Encasement ST P250-053S-20 - Structural Steel Encasement
Verified by manufacturer 6 days ago

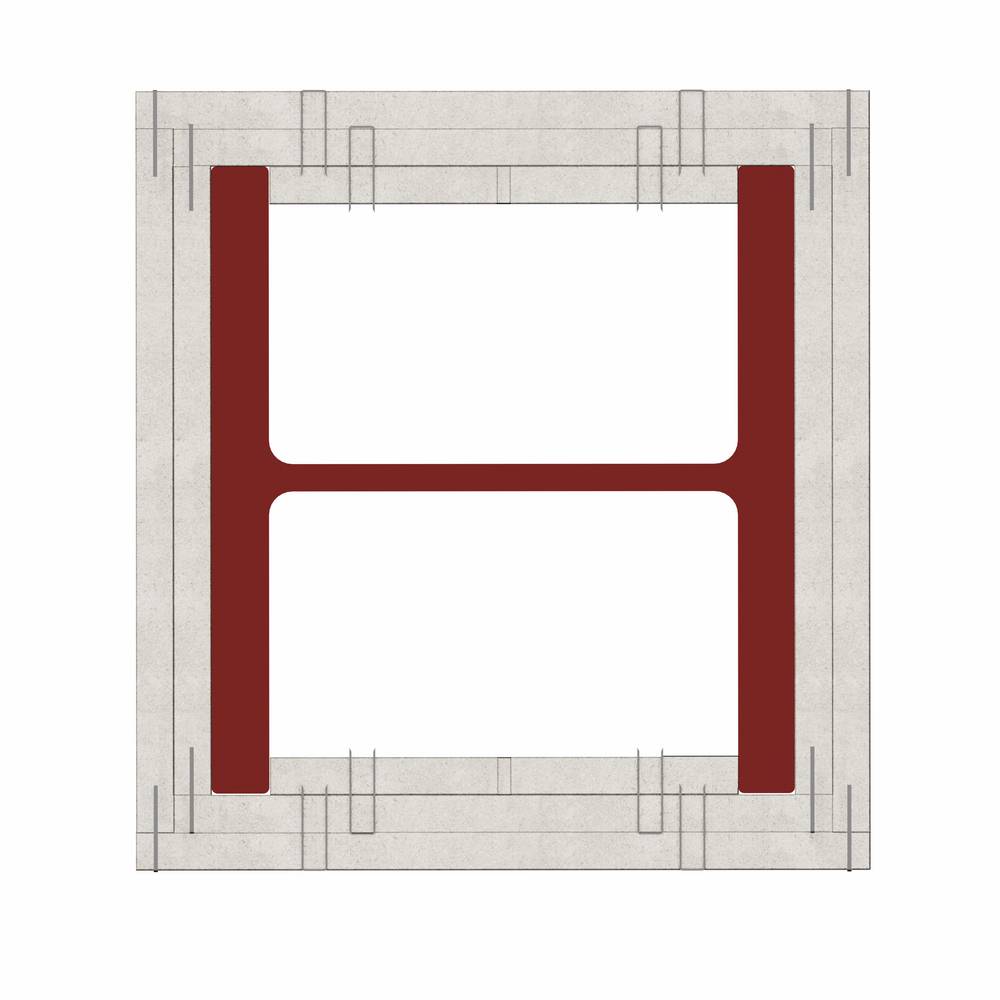

Four sided column protection up to 600 mm x 600 mm. Frameless fix.
Application
- For the protection of hot-rolled structural steel.
- Warehouses, in conjunction with the mezzanine floor protection.
- Dry environments only.
Description
PROMATECT®-250 is an A1 non-combustible mineral bound lightweight calcium silicate board, for internal use in structural steelwork protection and mezzanine floor systems. A third party EN certified solution which maintains the loadbearing capacity of structural steel for up to 120 minutes.
Features and benefits:
- Fire resistant: A1 non-combustible board to EN 13501-1.
- Frameless fix.
- Third-party certified: EN tested and classified to achieve 120 minutes fire protection to EN 13501-2.
- This system can provide protection to limiting steel temperatures between 350°C to 750°C.
- Smooth matt upper surface, off-white in colour. Can be easily decorated if required.
- Provides a high degree of strength and dimensional stability.
- Board to board fixing, for faster installation whilst maximising useable space in the building.
General information
Color | White |
Finish | Smooth Guidance for specification option: One face, ready to form a finished surface. Sanded Guidance for specification option: Reverse face. |
Material | Calcium silicate Guidance for specification option: Autoclaved calcium silicate spheres bound in a mineral matrix. |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Manufacturer guidanceEtex Building Performance Limited warrants that its passive fire protection products and component parts, when installed in the building originally designed, built and unaltered in accordance with the conditions and procedures set out in Promat Passive Fire Protection Handbook, this specification document and associated CAD drawings; and any specific technical recommendations made in relation to the above project, shall be durable and free from defects due to faulty manufacturing or factory workmanship. The system must be installed solely with proprietary products and components as supplied by Etex Building Performance Limited. The scope of this warranty is subject to and will be dependent on the application and the environment in which the products are being installed. |
Uniclass | |
CAWS | K11/885 Fire protection board K11/54 Fire protection board |
SKU Code | ST P250-053S-20 |
Specification data - Rigid sheet casing systems
Classification data | |
Insulation | Low density (10–30 kg/m³) glass mineral wool. Guidance for specification option: If required for acoustic or thermal performance. Not required. |
Linings | Inner Layer: 20 mm Promat PROMATECT®-250. Outer Layer: 20 mm Promat PROMATECT®-250. Guidance for specification option: Lining Notes: Optional soldier noggins may be friction-fitted inbetween flanges, top and bottom, to provide additional rigidity to the system. |
Fasteners | Fixing to Board Edge: Chisel point staples minimum 50 x 12 x 1.6 mm at maximum 150 mm centres. Guidance for specification option:
|
Finish | Decorative. Guidance for specification option: Decorative finishes should be applied in accordance with the guidance in the Promat Passive Fire Protection Handbook which can be found on the Promat website. Non-decorative. Guidance for specification option: No finishing or sealing required to maintain system performance. |
Fire resistance | To EN 13381-4, up to 120 minutes. |
Fire classification | Classified to EN 13501-2. |
Temperature | 500℃. Manufacturer guidanceLimiting steel temperature. |
Section factor | 200 m-1. Manufacturer guidanceMaximum section factor. |
Steel sections | Maximum depth: 600 mm. Maximum width: 600 mm. Manufacturer guidanceMaximum steel section dimensions. |
System code | ST P250-053S-20. |
Sustainability data
Country of material origin | Belgium |
Country of product manufacture | Belgium Guidance for specification option: Applies to the bulk board material only. Other components are from other countries. Consult manufacturer for details. |
Material | Calcium silicate Guidance for specification option: Autoclaved calcium silicate spheres bound in a mineral matrix. |
Recyclability | Gypsum, calcium silicate and metal components can be recycled depending on the segregation of all materials |
