ProSound™ PET Felt Ceiling Rafts
Verified by manufacturer 5 days ago
Soft Corner Square Raft
Soft Corner Square Raft

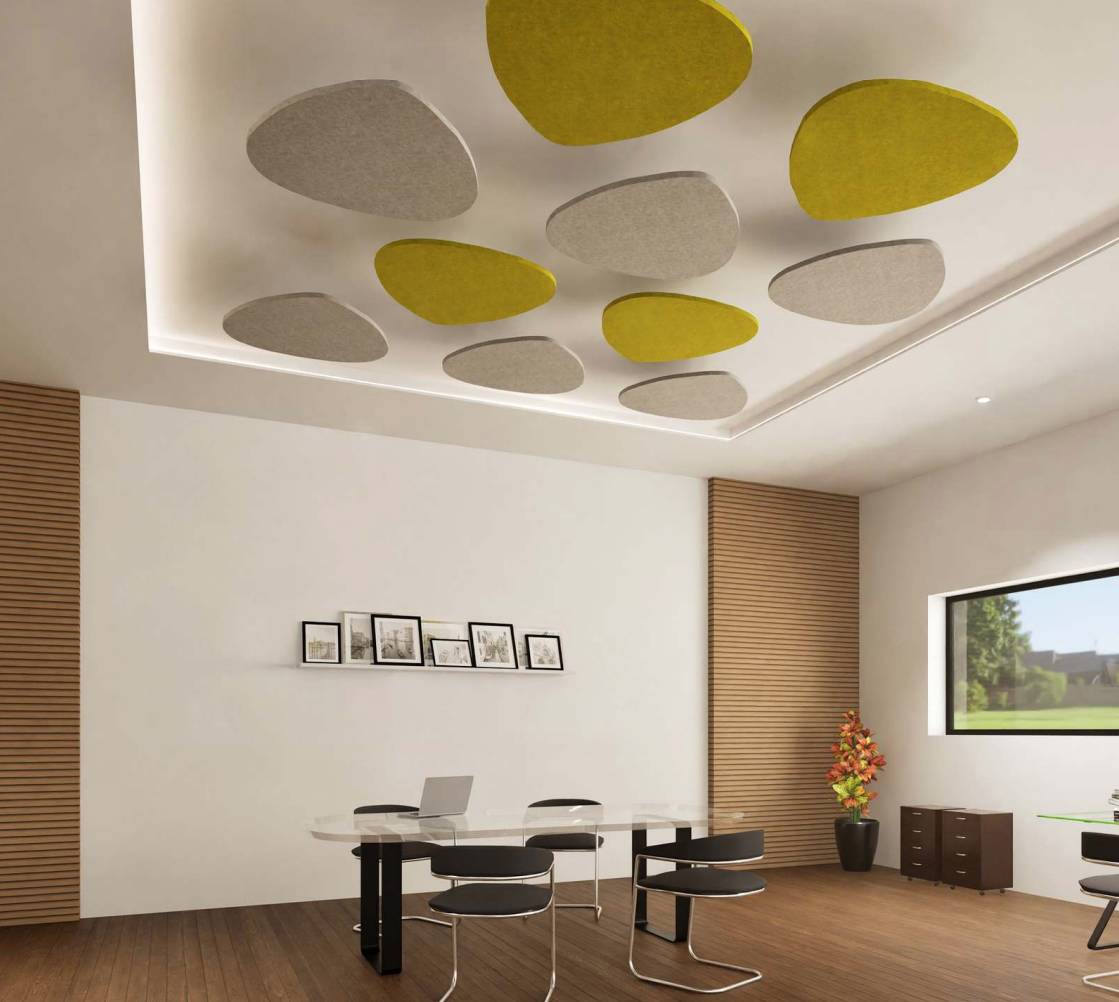

Polyethylene terephthalate (PET) felt ceiling rafts for acoustic control.
Application
Suitable for use in large spaces such as offices, meeting rooms, hotels, restaurants, village halls, schools, lecture theatres, music studios, and rehearsal spaces for acoustic control applications.
Description
Polyethylene terephthalate (PET) Felt Ceiling Rafts are made from a compressed polyester, manufactured using post-consumer recycled plastic bottles. PET Felt rafts are available in a choice of 23 colours and in a range of designs to enhance the visual appeal of your room.
Features and benefits:
- Range of 23 colours.
- 14 shape options.
- Supplied with suspension kits.
- Class A absorption.
- 60% recycled content.
- 100% recyclable.
- Class B reaction to fire.
- Noise reduction coefficient (NRC) of 0.95.
General information
Color | Beige Black Blue Brown Cream |
Material | Polyester fibre (PET) |
Shape | Circle Diamond Elliptical Hexagon Oval |
Length | 600 mm 800 mm 1000 mm 1200 mm 2400 mm |
Width | 300 mm 600 mm 800 mm 1200 mm |
Height | 24 mm |
Uniclass | |
CAWS | K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system |
Specification data - Raft or island suspended ceiling systems
Classification data | |
Ceiling support | 2 m adjustable wire, with top hat/ bullet. |
Support fasteners | Spiral anchors. |
Ceiling type | PET raft. |
Thickness | 24 mm. |
Colour | White. Black. Stone grey. Yellow Red. Light grey. Purple. Navy. Mild brown. Orange. Light blue. Ivory. Green. Dark grey. Dark blue. Cyan. Charcoal grey. Marble smoke blue. Marble rose. Marble green. Marble beige. Silver Savoya. Pink. |
Edge profile | Squared. |
System accessories | Manufacturer guidanceInsert requirements or omit. |
Shape | Soft corner square. |
Dimensions | 600 x 600 mm. 1200 x 1200 mm. Bespoke. Guidance for specification option: Custom dimensions, consult manufacturer and insert requirements. Manufacturer guidanceOuter width x outer length. |
Sound absorption | To BS EN ISO 354, Class A NRC: 0.95. Guidance for specification option: 90–100% of sound energy absorbed. |
Reaction to fire | To EN 13501-1, Class B. |
Weight | 4.5 kg/m². |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Polyester fibre (PET) |
Recyclability | 100% recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % Guidance for specification option: Eco-friendly PET polyester. Recycled from 60% post-consumer plastic bottles |
Literature
ProSound PET Felt Ceiling Rafts - Product Data Sheet
