Puzzle Gym Tile
Verified by manufacturer 1 month ago
478 x 478 x 8 mm
478 x 478 x 8 mm
ISO 9001 Quality Management
Certificate type

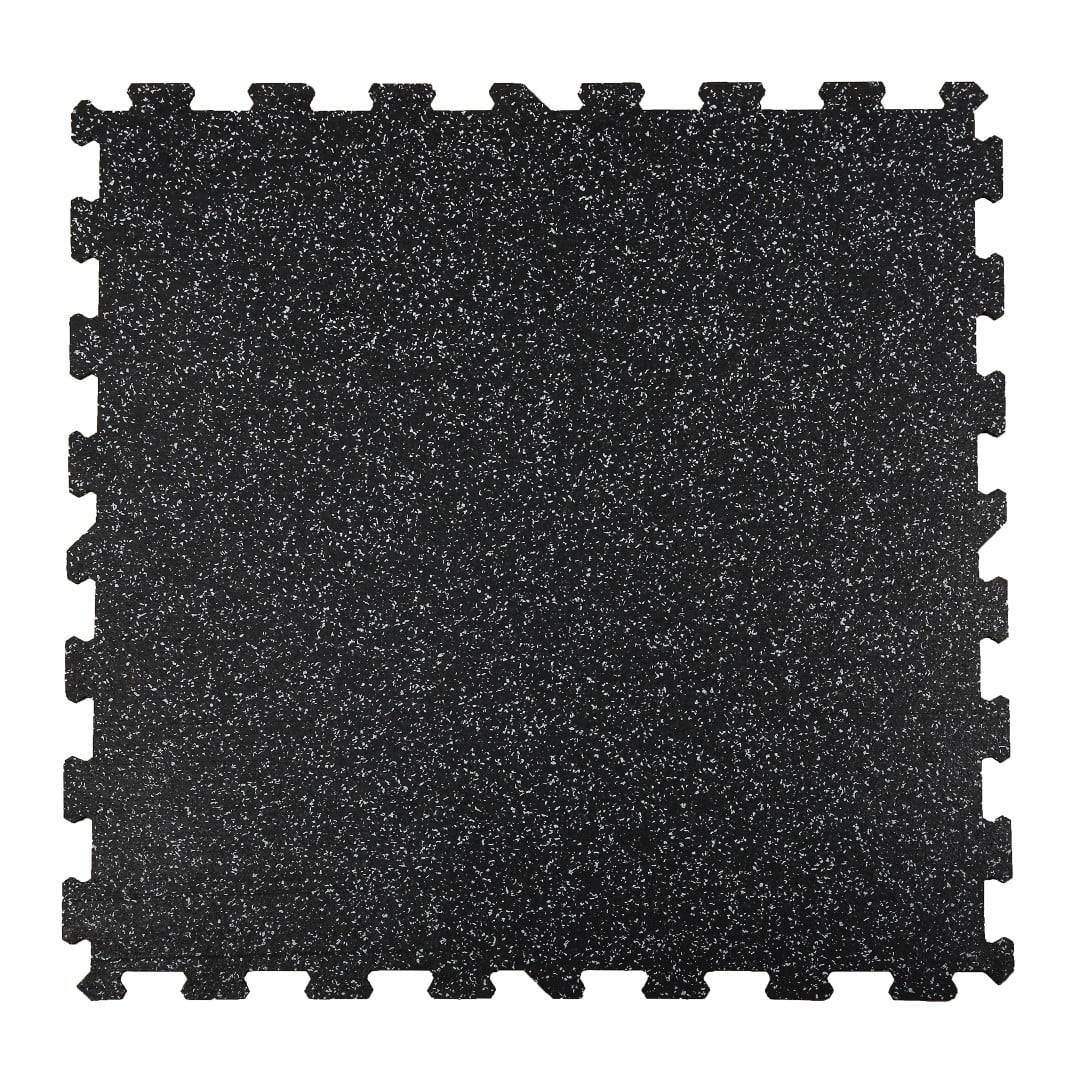

Rubber granulate gym mats with a puzzle style.
Application
Suitable for areas in the gym including flexibility exercise, dynamic strength exercise, static strength training and aerobic exercise.
Description
High-quality recycled rubber granulate gym mats bound using a polyurethane (PU) binding agent. Designed with a puzzle style.
Features and benefits:
- Interlocking design provides a seamless floor space.
- Toxicity tested.
- Manufactured to a high density of 1000 kg/m³ for durability.
- Provides sound and impact protection.
- Easy to clean.
- Aesthetically pleasing.
- Available in a range of colours and sizes.
- Three-year guarantee for wear resistance.
General information
Color | Black Guidance for specification option:
Other |
Finish | Anti-slip |
Material | Rubber Polyurethane Manufacturer guidanceHigh quality recycled rubber granulate gym mats bound using a polyurethane (PU) binding agent. |
Shape | Square |
Length | 478 mm |
Width | 478 mm |
Height | 8 mm |
Warranty description | Three year Guidance for specification option:
|
Uniclass | |
CAWS | M50/120 Interlocking resilient floor tiling M50/10 Resilient floor tiling |
Product range |
Specification data - Ethylene propylene diene monomer (EPDM) rubber tiles
Thickness (minimum) | 8 mm. |
Size | 478 x 478 mm |
Colour | Black with green fleck.Black with blue fleck.Black with red fleckBlack with yellow fleck.Black with grey fleck.Black. |
Slip potential | |
Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum) | Manufacturer's standard. |
Surface roughness (Rz) (minimum) | Manufacturer's standard. |
Recycled content | Manufacturer's standard. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Netherlands |
Country of product manufacture | Netherlands |
Material | Rubber Polyurethane Manufacturer guidanceHigh quality recycled rubber granulate gym mats bound using a polyurethane (PU) binding agent. |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
