Quadrant Trim
Verified by manufacturer 6 months ago
EAQ060
EAQ060
Extruded aluminium quadrant trim.
Application
Designed to protect the edges of ceramic tiles or similar hard finishes fitted in wall or floor installations.
- Select EAQ according to tile thickness

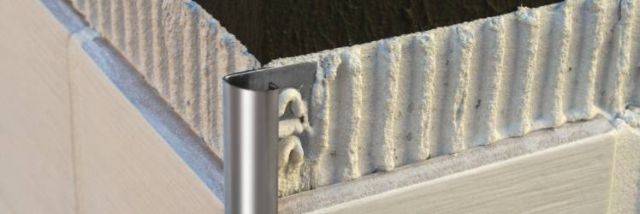

- Trowel tile adhesive over the area that forms the perimeter of the tiled covering.
- Press the perimeter of the tiled covering.
- Trowel additional adhesive over the perforated anchoring leg to ensure full coverage.
- Solidly embed the tiles so that the tiled surface is flush with the top of the profile, the profile should not be higher than the tiled surface, but rather up to approx. 1mm lower.
- Fill the joint completely with grout.
Description

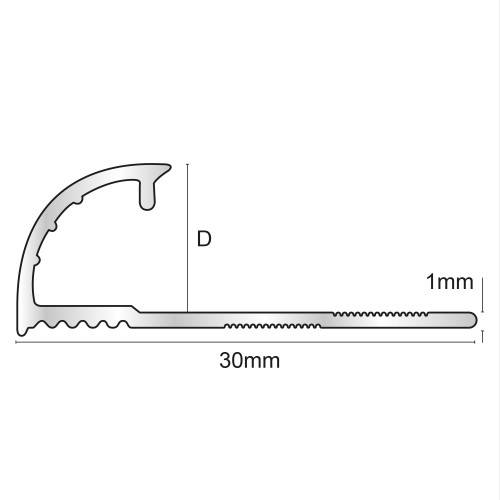

An extruded aluminium profile with a fully rounded quadrant face designed to protect the edges of ceramic tiles or similar hard finishes fitted in wall or floor installations.
In choosing aluminium as a finishing profile the suitability of its installation must be determined if chemical or mechanical stresses are anticipated. Three-way corner pieces are also available to solve the problem of mitres which are often sharp or unsightly.
General information
Color | White Black Beige Grey Silver |
Finish | Brass Matt Bright Brushed |
Material | Aluminium |
Length | 2500 mm |
Height | 6 mm 8 mm 10 mm 12 mm |
Uniclass | |
CAWS | M40/10 Natural stone covering to M40/110 Tiling to M40/115 Natural stone covering to M40/12 Mosaic to M40/120 Mosaic to M40/5 Tiling to M41/110 Terrazzo tiling M41/120 In situ terrazzo M41/130 Precast terrazzo M41/140 Marble tiling |
Product range |
Specification data - Floor edging strips
Material | Aluminium. |
Finish | White 01.Black 16.Beige 25.Soft grey 34.Mill aluminium 80.Matt silver 81.Matt brass 83.Pewter 85.Bright brass 86.Bright silver 91.Brushed effect 94.Manufacturer guidanceNot all colours available for all types; consult manufacturer's literature for exact details. |
Cross section size | 2500 x 7 x 6 mm.Guidance for specification option: (L x W x D). |
Corners | EAC062. Guidance for specification option: External, 6 mm. EAC082. Guidance for specification option: External, 8 mm. EAC102. Guidance for specification option: External, 10 mm. EAC122. Guidance for specification option: External, 12 mm. EAC152. Guidance for specification option: External, 15 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Literature
EAQ Datasheet
