Quattro and DemiQuattro - Steel grating balustrade, ceiling panel
Verified by manufacturer 26 days ago
Quattro-33
Quattro-33

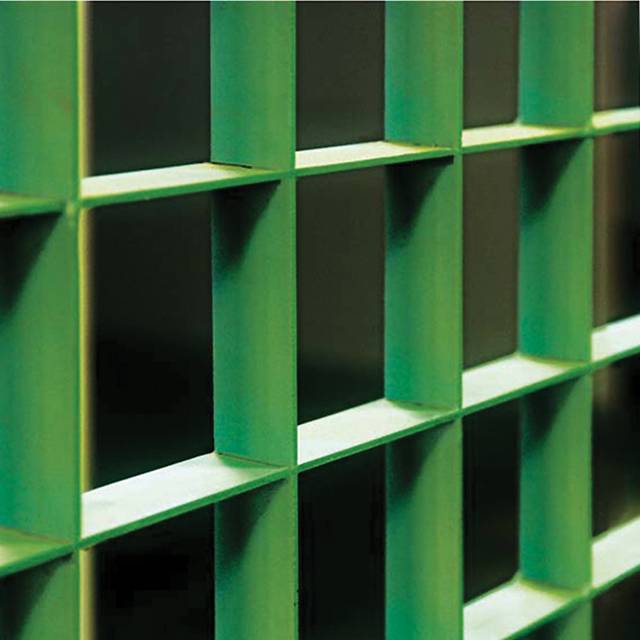

A steel grating with vertical and horizontal flat bars, forming a square aperture 33 to 66 mm, for balustrades or cladding.
Application
Suitable for vertical applications such as balustrades and cladding.
Description
A pressure locked range of gratings which are characterized by a square aperture. Pressure-locked with perfectly formed intersections between the vertical and horizontal flat bars, resulting in an aesthetic grating for vertical applications.
The flexibility of this method of manufacture means that production can be readily adapted to provide gratings to individual specifications of weight, aperture and performance.
Features and benefits:
- Quattro is manufactured from equal sections of flat bar, which provides an identical eggcrate appearance from both sides.
- DemiQuattro is manufactured from flat bars of unequal depth; the standard section of horizontal transverse bearing bar is 10 x 2 mm.
- All panels are made to custom sizes and supplied framed and fully finished.
- Panels and posts can be supplied galvanized only, or galvanized and powder coated to any RAL colour.
General information
Color | Grey Beige Black Blue Bronze Manufacturer guidanceHot-dip galvanized and polyester powder coated option to any RAL or BS colour. |
Finish | Galvanized Guidance for specification option: Hot-dipped to BS EN ISO 1461. Powder-coated |
Material | Steel |
Shape | Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H31/10 Metal H31/120 Metal L10/60 Security L10/690 Security L30/55 Proprietary balustrades L30/560 Proprietary balustrades |
Product range |
Specification data - Balustrade and guarding systems
Newels | |
Accessories | Not required.Secondary support steelwork.Guidance for specification option: Designed and supplied as required. |
Uprights | Electrofused steel S235JR. |
Infills | Flat bars, equal depth, pressure locked mild steel S235JR.Guidance for specification option: Provides an identical eggcrate appearance from both sides. |
Fixing to parent structure | M10 stainless steel bolts, grade A2.Guidance for specification option: Panel fastening. |
Panel Type | Quattro-33. |
Panel size | 2000 x 2000 mm (maximum). Manufacturer guidance
|
Finish: | Hot-dip galvanized. Guidance for specification option: To BS EN ISO 1461. Hot-dip galvanized and polyester powder coated, RAL. Guidance for specification option:
|
Aperture | 33 x 33 mm. Manufacturer guidanceQuattro and DemiQuattro can be manufactured in larger apertures, at 11 mm increments. |
Fixing | Through holes in the framing bar. Through welded plates. With clamping brackets. Manufacturer guidanceThere are three alternative fixing methods, with a minimum of four fixing points per panel. |
Size | Vertical and transverse flat bars: 25 x 2 mm. Guidance for specification option: Standard. Vertical and transverse flat bars: 25 x 3 mm. Vertical and transverse flat bars: 30 x 2 mm. Vertical and transverse flat bars: 30 x 3 mm. Vertical and transverse flat bars: 30 x 4 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 1.42 kg CO₂ eq/kg Self declared |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 56 % |
Literature
Gratings for Cladding, Screening and Balustrades
