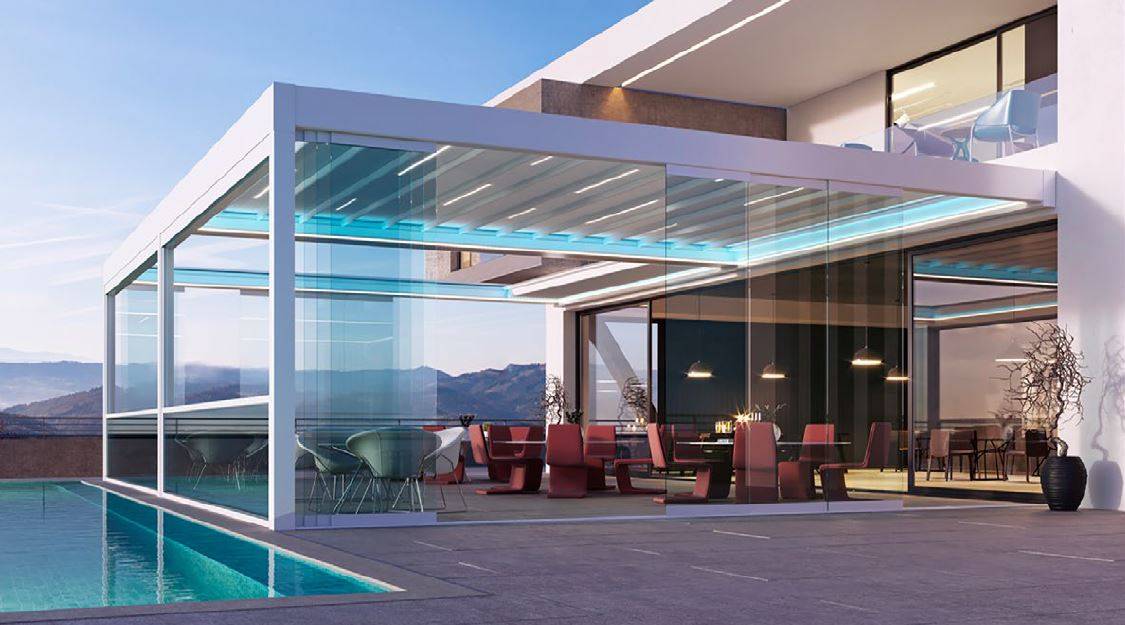

Quattro Full-Frame Retractable Pergola Roof
Verified by manufacturer 5 months ago
Retractable pergola roof.
Application
Suitable for incorporating into existing structures, wall mounting and free standing for larger outdoor areas, particularly in hospitality venues.
Description
Quattro has clean modern lines with a minimalist geometric appearance for retractable outdoor living solutions.
The system also introduces innovative lighting that is integrated within the durable fabric layer. The patented lighting system is also equipped with RGB Led - Hidden Stripe lighting to vary colour and Led Stripe Dimmer lighting on sides within the structure to provide intensity or HDD Lux High Power Led lighting options integrated on fabric.
Individual modules can be customised up to 5.5 m wide and 8 m projection with flexible installation methods such as integration to existing structures, wall mounting and free standing for larger outdoor areas.
Features and benefits:
- The fabric is equipped with invisible bilateral slope that enables one side or alternating drainage through rafters while keeping flat appearance.
- The system is modular and completely flexible as there are no limits in the horizontal direction that can be used to surround spaces of all types and sizes.
- Led Stripe Dimmer Lighting illuminates all around the system and creates a warm atmosphere. Dimmable Soft Led Stripe lighting on sides within the structure provides intensity of day light (2800 K) or cool white (5100 K) options.
- RGB Led-Hidden Stripe Lighting provides ultimate luxury by creating distinctive atmosphere in outdoor living areas with infinitive colour options.
- Linear Fabric Dimmer Led innovative lighting that is integrated within the fabric layer by inspired unique asymmetrical lines. The patented lighting system can be offered symmetrical or asymmetrical design to complete a minimalist style.
- The option of a sliding glass system ensures efficacious protection from wind and rain. The aluminium frames which cover each glass panel provide maximum safety standards and practicality with elegance.
- The optional Swind system offers wind-breaking with the option of total transparency.
- Sapphire glass windows offer a maximum clear span that provides an unobstructed view and minimalistic style.
- The system is operated by just the touch of button.
General information
Color | White Cream Beige Yellow Orange |
Finish | Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | 5500 mm 8000 mm Bespoke |
Width | 5500 mm 11000 mm Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | B91/370 Pergola/ arbour B91/330 Canopy |
Specification data - Open-sided shelters
Shelter description | Full-frame retractable pergola roof. |
Dimensions | |
Plan size | Guidance for specification option: Consult manufacturer and insert requirements.
|
Height | Guidance for specification option: Consult manufacturer and insert requirements. |
Frame | |
Material | Aluminium. |
Colour | Bianco.Avorio.Beige 1.Beige 2.Giallo 1.Giallo 2.Salmone.Rosso.Marron.Menta.Verde medio.Verde scuro.Caraibi.Bleu.Ghiaccio.Grigo.Argento. |
Roof covering | Aluminium - profiled. |
Openings | |
Doors | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Windows | Not required.Sliding glass system.Guidance for specification option: The combination of the sliding glass system with Axis ensures efficacious protection from wind and rain. The aluminium frames which cover each glass panel provide maximum safety standards and practicality with elegance details. Swind.Guidance for specification option: Swind can be combined with also Axis system and offers adequate wind breaking with the option of total transparency by incorporating the function of balustrade. Thanks to led stripe dimmer lighting integrated side frame the fixed panel assigns distinctive appeal. The system is modular and completely flexible as there are no limits in the horizontal direction that can be used to surround spaces of all types and sizes. Vertex zip system.Guidance for specification option: The minimalist, slimlane, contemporary design of the zip system provides comfortable shade and protects against the UV rays. The system includes motorized aluminium structure, entirely powder-coated with stainless steel bolts and screws. Sapphire glass system.Guidance for specification option: Sapphire can be adapted to Axis system and offers a maximum clear span that provides unobstructed view and minimalistic style. The system is operated by just the touch of button. |
Integral services | Mains electricity. |
Rainwater drainage | Right side flow.Guidance for specification option: 4 cm inclination on fabric profile. Left side flow.Guidance for specification option: 4 cm inclination on fabric profile. Double side flow.Guidance for specification option: 4 cm inclination on fabric profile. Manufacturer guidanceThe fabric is equipped with invisible bilateral slope that enables one side or alternating drainage through rafters while keeping flat appearance. |
Accessories | Not required.LED stripe dimmer.RGB LED - Hidden stripe lighting.HDD Lux High Power LED lighting.Dimmer kit.Linear fabric dimmer LED lighting.Drainage pipe.Rain sensor.Wind sensor.Sun sensor.Wind and sun sensor. |
Rafters | 252 x 81 mm. Manufacturer guidanceRafter profile dimensions. |
Post | 160 x 160 mm. |
Base | Hidden. Guidance for specification option: As standard. Flange. Guidance for specification option: Optional. |
Drainage | Type I. Type II. Type III. Type IV. Manufacturer guidanceConsult manufacturer literature and select option. |
Control | Automation, control unit included. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Turkey |
Recyclability | The aluminium frame, roller and legs are recyclable at any metal recycling centre. |
