Application

Suitable for use in cold pitched roofs with unheated loft space.

Description

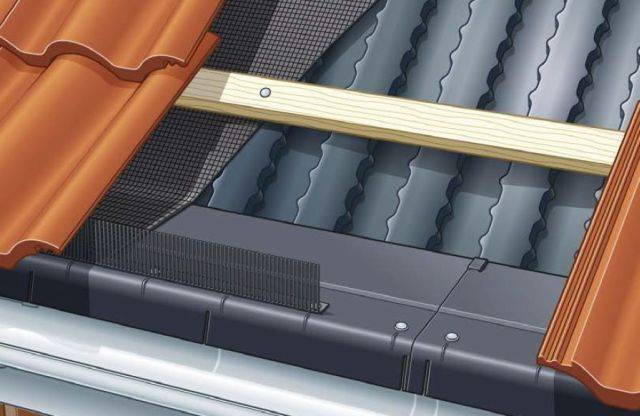

The Rapid Eaves Vent System is designed for use in cold pitched roofs as a means of introducing low-level over fascia roof space ventilation. The Rapid Eaves Vent System comes as three parts sold separately with a Rapid Eaves Vent Rafter Roll, Rapid Eaves Vent 2-in-1 Eaves Tray and an Eaves Comb.


Key Advantages:

  • Maintenance-free.
  • Quick and easy to install.
  • Can be used with either a vapour permeable or a non-vapour permeable pitched roofing underlay.


Three part system sold separately:

Rapid Eaves Vent Rafter Roll:

A roll-out rafter ventilation tray that maintains an uninterrupted air ventilation gap between the underlay and ceiling level insulation in the loft space.


Rapid Eaves Vent 2-in-1 Eaves Tray:

Provides continuous ventilation over the fascia while supporting the underlay at the eaves to ensure a positive fall of the underlay into the eaves gutter.


Eaves Comb:

Used to prevent birds, large insects, rodents etc. from entering the roof space. Eaves Combs are required for the following BMI Redland tiles: Grovebury, Regent and Fenland Pantile.

General information

Color

Black

Shape

Other

Length

6000 mm

Width

800 mm

Uniclass

Pr_30_59_29_15 Combined eaves fascia grilles and ventilator traysPrimary

CAWS

H60/345 Ventilated eaves with integrated grilles/ trays

H60/47 Detailing at eaves

H65/345 Ventilated eaves – integrated grilles/ trays

H65/47 Eaves

Product range

Components and Accessories

Specification data - Combined eaves fascia grilles and ventilator trays

Grille colour

Black.

Eaves tray

Rapid Eaves Vent 2-in-1 Eaves Tray - 20001276.

Rafter roll

Rapid Eaves Vent Rafter Roll - 20001275.

Guidance for specification option:

0.8 x 6 m.

Accessories

Eaves Comb - 10002894.

Guidance for specification option:

To prevent birds, large insects, rodents from entering the roof space.
