Rationel AURAPLUS® Windows

Name: Rationel AURAPLUS® Windows
Brand: Rationel Windows
SKU: noN64h4TQdq9DaZEXRoJyH

Verified by manufacturer 1 month ago

Triple glazed

Rationel Windows

Product certifications:

QA Certificate
Certificate type
BM Trada
Certificate type
Secured By Design
Certificate type
EPD
Certificate type
BM Trada
Certificate type
Qualicoat approval
Certificate type

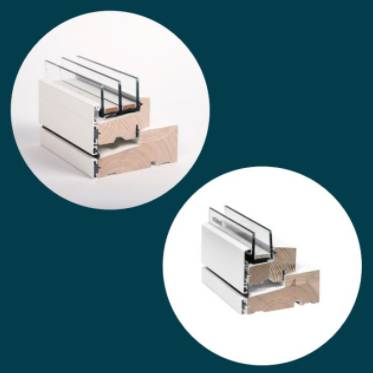

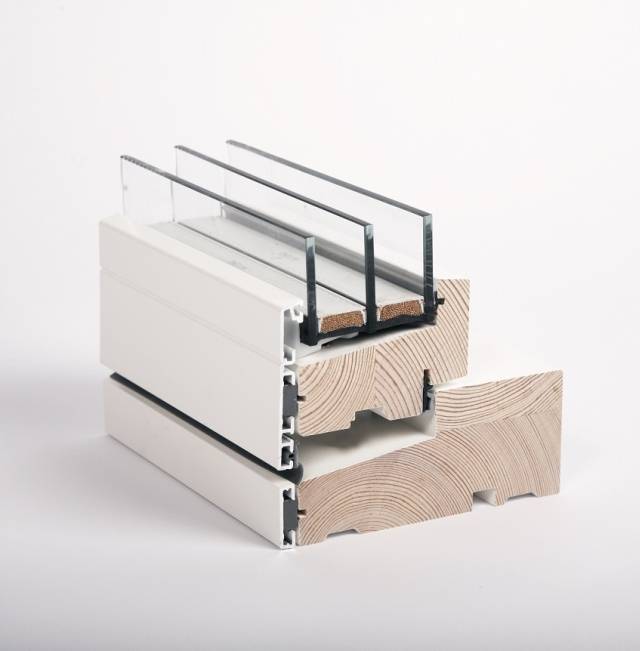

High-quality laminated flush sash timber aluminium-clad windows with a Scandinavian contemporary design.

Jump to:

+44 (0)1480 759511 Website

Application

For new-build and refurbishment projects.
Suited to low energy or Passive House projects.
Consult manufacturer for details.

Description

Made from timber, with external aluminium cladding, it offers all the benefits of natural wood on the inside and easy maintenance on the outside.

Features and benefits:

Low maintenance.
Over 200 colours available.
Range of configurations available.
U-value as low as 0.79 W/m²K (triple glazed).
Sound reduction up to 42 dB Rw (triple glazed).
UKCA-marked and resistance tested to wind load, air permeability and watertightness.
FSC certified.
Secured by Design licence holder.
Matching doors also available (specified separately).
Timber version also available (AURA; specified separately).

General information

Color	- Manufacturer guidance Available in a wide range of colours.
Finish	Matt Anodized Gloss
Material	Wood Guidance for specification option: Timber frame internally The timber used in the manufacture is supplied from FSC-certified North European coniferous trees from selected sawmills with sustainable forest management. The proportion of heartwood is at least 60% for exterior rebates and surfaces. In general, knots and small cracks are cut off and the wood finger-jointed. However, minor knots will be permitted. All softwood sections are laminated and their edges rounded. Aluminium Guidance for specification option: Aluminium cladding externally Since the external aluminium cladding functions solely as a climate envelope, it does not form part of the sealing face. The cladding is attached using plastic clips to ensure the necessary draining and ventilation of the wood components. The aluminium alloy must be EN AW-6060 or EN AW-6063 in accordance with EN 755-2. Aluminium glazing beads are polyester powder-coated to a coating thickness of 60-120 microns, standard gloss 30. Glass Guidance for specification option: Two choices of Insulating glass units: 32 mm or 52 mm. Toughened/ laminated glass where required, allowing for 6.8 mm laminate where secured by design is required. Insulating glass units conform to: BS 952 Glass for glazing – Part 1: Classification. BS EN 572 Glass in building – Basic soda lime silicate glass products – Part 2: Float glass. BS EN 12150 Glass in building – Thermally toughened soda lime silicate safety glass – Part 1: definition and description. BS EN ISO 12543 Glass in building – Laminated safety glass. BS EN 12600 Specification for impact performance. BS EN 1279 Glass in building – Insulating glass units. BS 6262 Code of practice for glazing for buildings. BS 6206 Specification for impact performance requirements for flat safety glass and safety plastics for use in buildings. BS EN 6180 Barriers in and about buildings – Code of practice.
Shape	Rectangle Square Other
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Ten year

Uniclass	Pr_30_59_98_15 Composite window unitsPrimary
CAWS	L10/33 Proprietary windows L10/400 Composite windows

Product range	Rationel AURAPLUS® Windows and Doors

Specification data - Composite window units

Classification data
Standard	To EN 14351-1:2006 + A2:2016.
Third-party certification	PAS24:2022; Secured by Design; Q-Mark product certification, FSC, Danish window verification and indoor climate label.
Dimensions and configurations	As drawing. As schedule. Manufacturer guidance All units are bespoke; please contact manufacturer and insert requirements. Note that minimum/ maximum sizes vary depending on operation specified.
Product performance	-
Fire performance	-
Fire egress	Required. Guidance for specification option: Indicate where these are to be located by schedule or drawing. Not required.
Weather performance	-
UK exposure category	Generally 1600 Pa to BS 6375-1:2004. Guidance for specification option: Refer to manufacturer's literature (DoP) for details.
Air permeability	Generally 600 Pa to BS EN 1026/ BS EN 12207 Class 4. Guidance for specification option: Refer to manufacturer's literature (DoP) for details.
Watertightness	Generally 600 Pa to BS EN 1027/ BS EN 12208 class 9A. Guidance for specification option: Refer to manufacturer's literature (DoP) for details.
Resistance to wind load	Generally 1600 Pa to BS EN 12211/ BS EN 12210 class 4C. Guidance for specification option: Refer to manufacturer's literature (DoP) for details.
Durability	-
Operation and strength characteristics	Operating forces to BS EN 12046-1/ BS 13115: Class 1; EN 1191/ EN 12400 repeated open/close 10000/20000: class 2 or 3. Guidance for specification option: Repeated open/close 10000/20000 - class 2 or 3 (depends on opening function).
Loadbearing capacity of safety devices	To EN 14351-1:2006 +A2:2016.
Safety	-
User design standards	Manufacturer's standard. Guidance for specification option: Consult manufacturer for details.
Security level	Not required. To PAS 24 and Secured by Design. Guidance for specification option: On request.
Environmental	-
Background ventilation	Manufacturer's standard. Guidance for specification option: Externally concealed trickle ventilators will be incorporated into the framing sections to provide a free area of 4000 mm². Equivalent areas will be tested in accordance with BS EN 13141-1: 2004 and will provide 2224 mm² when ventilators are placed in the frame and 3786 mm² when ventilators are placed in the board. Performance data based on test conducted through the window frame and board.
Acoustic performance rating	42 dB Rw.
Thermal	-
Whole window U-value	0.79 W/m²K.
British Fenestration Rating Council Window Energy Rating	Consult manufacturer for details.
Thermal improvement	Consult manufacturer for details.
Frame	-
Profile	Contemporary, 50 mm. Guidance for specification option: Clean lines, sleek flat frame, flush sash finish.
Wood species	Pine from North-European species Pinus sylvestris.
Chain of custody	FSC.
Appearance class	Guidance for specification option: Extruded aluminium profiles in accordance with BS EN 755-2 (mechanical properties), BS EN 12020-2 & BS EN 755-9 (dimensional accuracy). Alloys: EN AW-6060 T5, EN AW-6063 T5, EN AW-6082, EN AW-6005.
Wood finishes	Manufacturer's standard. Guidance for specification option: Timber frame: Water-based diffusion open timber surface treatment system consisting of multiple layers. Three layer coating system: Impregnation/ priming/ top coat. Surface treatment system meets EN113, EN152 and EN927 Surface treatment system contains antifungal and anti-rot fungicides. Top coat meets EN 927-6 in terms of UV-protection. Total thickness on visible surfaces is 100 μm ±20. For covering colours gloss is 20% ±5. System meets Danish Indoor Climate certification.
Metal finishes	-
Coating	Polyester powder coated. Guidance for specification option: Aluminium (external): Polyester powder coat in compliance with BS EN 6496, BS EN 6497, & DIN 50939 with applicators to be registered under the European Qualicoat and/or GSB quality assurance schemes.
Colour	Polyester powder-coated. Guidance for specification option: Polyester powder coated - RAL colours from the Classic K7 range, Granite, NCS range, consult manufacturer for options and insert requirements. Anodized, silver. Anodized, bronze. Clear lacquer. Guidance for specification option: Internal only.
Film thickness (minimum)	60–120 µm. Guidance for specification option: As required, unless the specific colour requires a thicker layer to cover completely.
Ventilator	Standard trickle vent. Guidance for specification option: Externally concealed trickle ventilators will be incorporated into the framing sections. Ventilators are placed in the frame jamb or in the frame head. Site fitted acoustic vent. Not required.
Glazing or infill	-
Standard	Relevant parts of BS EN 1279. Guidance for specification option: Various panel build ups available, consult manufacturer.
Requirements	Triple glazed. Guidance for specification option: 52 mm triple glazing rebate; Insulated Glass Units (IGUs) and panels.
Hardware	Not required. Factory fitted restrictor. Locking handle. Non-locking handle. Child restrictor handle. Click vent. Night vent position lock. Manufacturer guidance Not applicable for fixed light.
Operation	-
Type	Fixed. Side guided (for internal clean). Side hung. Top guided. Top swing fully reversible (for internal clean). Side swing (for internal clean).
Fixing features	Manufacturer's standard. Guidance for specification option: Consult manufacturer for details.

Sustainability data

Country of material origin	Denmark
Country of product manufacture	Poland
Material	Wood Guidance for specification option: Timber frame internally The timber used in the manufacture is supplied from FSC-certified North European coniferous trees from selected sawmills with sustainable forest management. The proportion of heartwood is at least 60% for exterior rebates and surfaces. In general, knots and small cracks are cut off and the wood finger-jointed. However, minor knots will be permitted. All softwood sections are laminated and their edges rounded. Aluminium Guidance for specification option: Aluminium cladding externally Since the external aluminium cladding functions solely as a climate envelope, it does not form part of the sealing face. The cladding is attached using plastic clips to ensure the necessary draining and ventilation of the wood components. The aluminium alloy must be EN AW-6060 or EN AW-6063 in accordance with EN 755-2. Aluminium glazing beads are polyester powder-coated to a coating thickness of 60-120 microns, standard gloss 30. Glass Guidance for specification option: Two choices of Insulating glass units: 32 mm or 52 mm. Toughened/ laminated glass where required, allowing for 6.8 mm laminate where secured by design is required. Insulating glass units conform to: BS 952 Glass for glazing – Part 1: Classification. BS EN 572 Glass in building – Basic soda lime silicate glass products – Part 2: Float glass. BS EN 12150 Glass in building – Thermally toughened soda lime silicate safety glass – Part 1: definition and description. BS EN ISO 12543 Glass in building – Laminated safety glass. BS EN 12600 Specification for impact performance. BS EN 1279 Glass in building – Insulating glass units. BS 6262 Code of practice for glazing for buildings. BS 6206 Specification for impact performance requirements for flat safety glass and safety plastics for use in buildings. BS EN 6180 Barriers in and about buildings – Code of practice.
