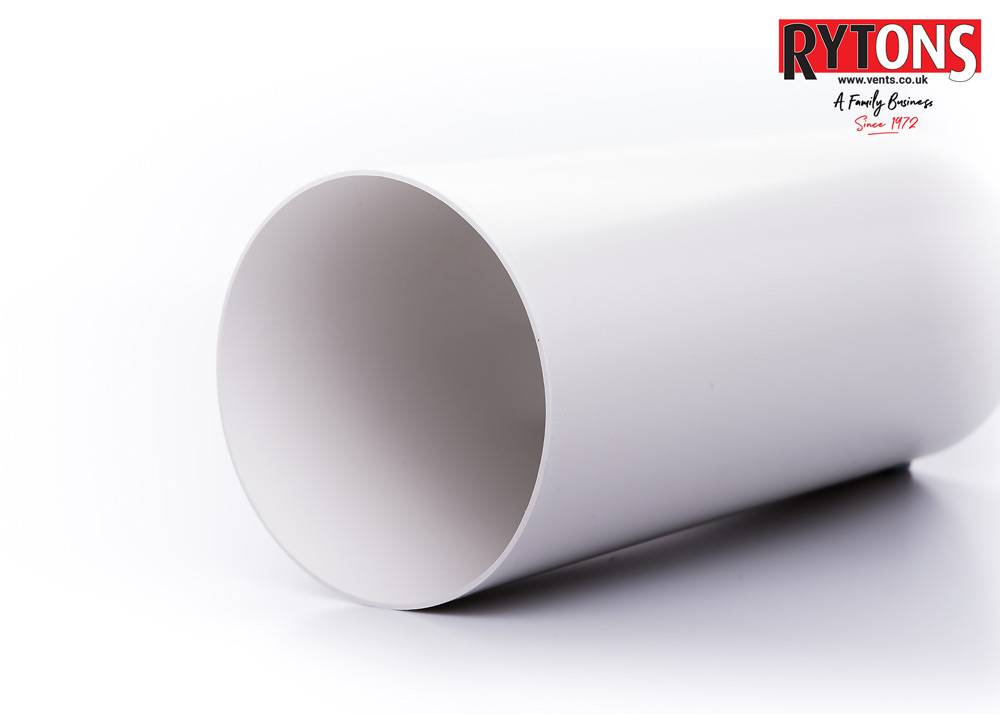

RD6 - Rytons 150 mm Dia. Rigid Pipe Ducting Range
Verified by manufacturer 3 months ago
150 mm-diameter plastic ductwork and fittings.
Application
For use with extract fans.
Description
A range of plastic 150 mm-diameter ductwork and fittings.
Features and benefits:
- Suitable for working temperatures of -15ºC to +60ºC.
- Part of Rytons 150 mm (220 x 90 mm) RytDuct® Range.
- Meets UL94 V0 flammability standard.
General information
Color | White |
Material | Plastic Guidance for specification option: Rigid unplasticized polyvinyl chloride (PVC-U); manufactured in compliance with Domestic Plastic Ductwork Specification DW/154. |
Uniclass | |
CAWS | U90/425 Rigid ductwork and fittings U90/425 Rigid ductwork and fittings |
Product range |
Specification data - Domestic rigid ductwork and fittings
Material | Plastic.Guidance for specification option: Rigid unplasticized polyvinyl chloride (PVC-U); manufactured in compliance with Domestic Plastic Ductwork Specification DW/154. |
Jointing | RD6CONN – Rytons Pipe/Hose Connector. |
Fixings | BANDGALV - Rytons Galvanised Banding.Guidance for specification option: Width: 12 mm; length: 1000 mm. |
Accessories | RD6WPC.Guidance for specification option: Rytons Circular Wall Plate RD6GG.Guidance for specification option: Rytons Gravity Grille - Available in white or brown; insert requirements. CV60FWBG.Guidance for specification option: Rytons RytAround Ventilator - White. RD6LVBG.Guidance for specification option: Rytons 6×6 Louvre and 150 mm diameter backplate set - Available in terracotta, buff/sand, white, brown or black; insert requirements. RD6FLVBG.Guidance for specification option: Rytons 6×6 Louvre with Flyscreen and 150 mm diameter backplate set - Available in terracotta, buff/sand, white, brown or black; insert requirements. |
Length | 360 mm. |
External | 154 mm. |
Diameter (internal) | 150 mm. |
Free area | 17 673 mm². |
Static pressure drop | 8 L/s: 0.02 Pa. 13 L/s: 0.03 Pa. 21 L/s: 0.08 Pa. 30 L/s: 0.14 Pa. 60 L/s: 0.42 Pa. |
Fittings | RD6PC – Rytons 90° Elbow Pipe Connector. RD6TRND – Rytons Three-way T-piece. RD46REDUC - Rytons 150 mm to 100 mm Reducer. RD5REDUC – Rytons 150 mm to 125 mm Reducer. RD6HC – Rytons Threaded Hose Connector. |
