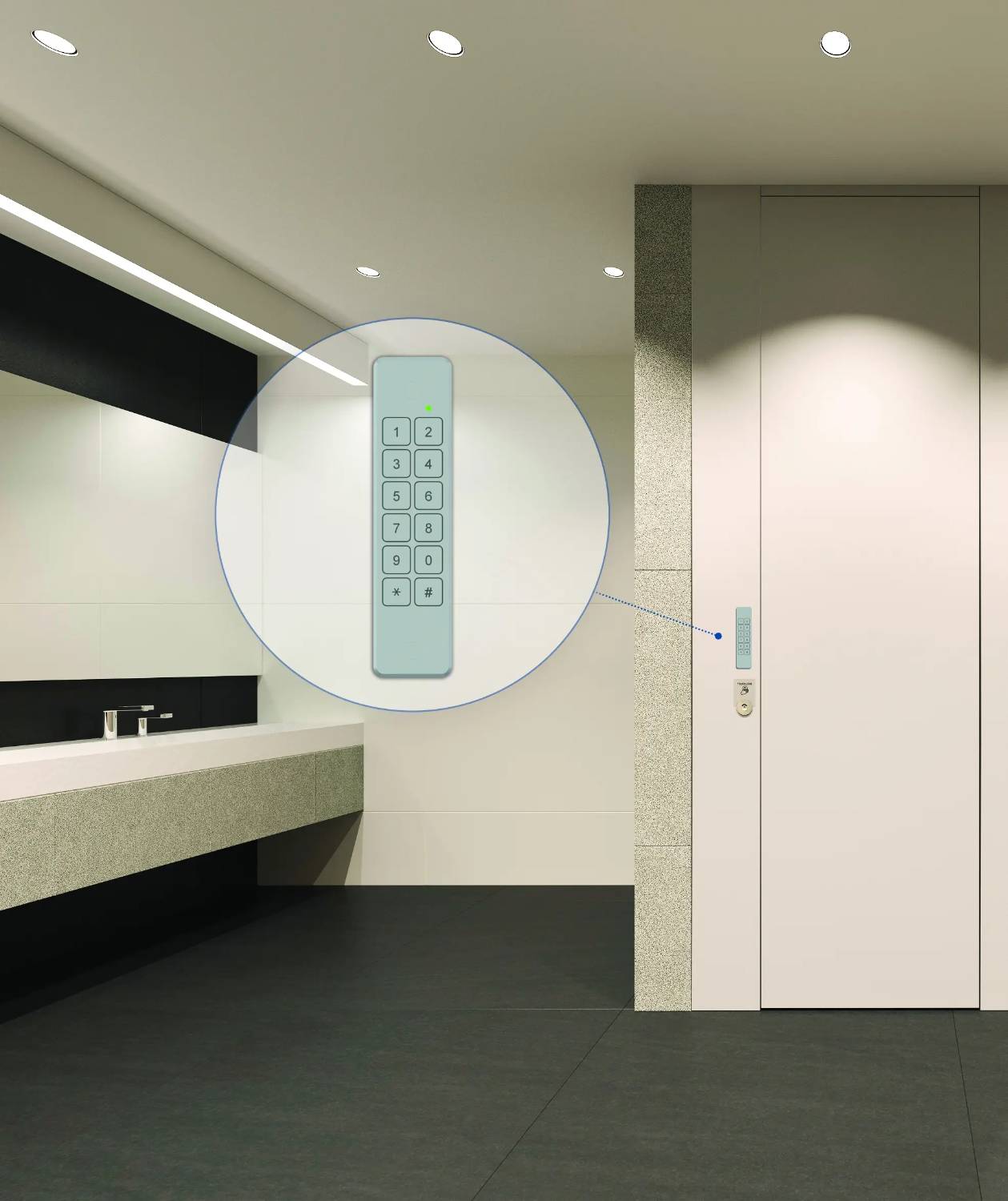

Restricted Access Cubicles
Verified by manufacturer 2 days ago
Restricted Access Cubicles with advanced electronic keypad and green and white LED indications for enhanced security and available with customizable finishes.
Application
The Stern Restricted Access Cubicle is suitable for commercial washrooms requiring durable, hygienic, and contact-free operation. Typical applications include:
- Hospitality & Commercial Buildings: Hotels, office complexes, and corporate facilities seeking modern, touchless washroom solutions.
- Transportation Hubs: Airports, train stations, and bus terminals with continuous high-traffic usage.
- Retail & Public Facilities: Shopping centers, municipal buildings, and general public washrooms needing reliable, low-maintenance systems.
- Healthcare & Education: Clinics, hospitals, universities, and schools where hygiene and durability are essential.
- Large Venues: Stadiums, arenas, and event spaces requiring efficient, hands-free user flow.
Description
Stern’s Restricted Access Cubicle operates with an advanced electronic keypad, providing a secure and efficient access control solution for commercial washrooms. This access control system requires users to enter a unique code to unlock and open the door, ensuring only authorized personnel can enter the restricted area. The durable, high-quality cubicle design not only enhances security but also seamlessly integrates with modern interiors, creating a cohesive and professional look throughout any project.
Features and benefits:
- Premium grade keypad.
- Customizable finishes.
- Enhances security.
- Integrates with modern interiors.
Technical Specifications
- Doors & Partitions: 42mm High-Pressure Laminate (HPL)
- Cubicle Height: Up to 3000mm
- Cubicle Depth: Up to 1500mm (internal)
- Frame & Pilasters: Anodised aluminium, no ceiling reinforcement required
- Door Clearance: 7.5mm top and bottom
- Handles: Chrome-plated brass, optional finishes available
- Power Supply: Low-voltage transformer, powering up to four cubicles
General information
Color | Black Brown Grey Ivory White |
Finish | Anodized Matt |
Material | Aluminium High pressure laminate (HPL) |
Shape | Rectangle |
Length | 1542 mm Manufacturer guidanceExternal depth. |
Width | Bespoke |
Height | Bespoke 3000 mm Guidance for specification option: Maximum height. |
Uniclass | |
CAWS | K32/120 Panel cubicles K32/10 Panel cubicles |
Specification data - Panel cubicle systems
Classification data | |
Panels | 3 mm HPL. Guidance for specification option: On both sides of frame. |
Panel supports | Anodized aluminium 6063. |
Pilasters | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details; customizable finishes available. Insert requirements. |
Doors | 42 mm thick doors with 3 mm HPL layers at both sides. Guidance for specification option: Consult manufacturer for more details; customizable finishes available. Insert requirements. |
Hardware | Keypad. Other. Guidance for specification option: Consult manufacturer for more details and insert requirements. |
System accessories | TOI - Top Occupancy Indicators. Guidance for specification option: Stern's Top Occupancy Indicators utilize bright LED lights to allow users to quickly identify available cubicles without the need to approach doors, prompting social distancing while enhancing efficiency. Optional white vacant indicator/ red engaged indicator for users with colour vision deficiency, insert requirements or omit. VacantView washroom display. Guidance for specification option: Stern’s VacantView Washroom Display allows users to instantly check cubicle availability, reducing wait times and preventing large groups from gathering in one area. Designed to improve hygiene and reduce cross-contamination this display minimizes crowding in public washrooms. Coin-release. Guidance for specification option: Allows locked cubicle doors can be manually opened with a coin. Safety unlock. Guidance for specification option: If the cubicle remains locked for twenty minutes the indicator light on the lock flashes for thirty seconds before the door automatically opens. The occupant inside the cubicle has the to extend the lock duration by presenting their hand. Not required. |
Dimensions | Manufacturer guidance
Insert requirements. |
Aluminium finish | Natural anodized. Matt black. |
Colour | Snow white. Ivory white. Oak. Grey. Graphite. Black. Bespoke. Guidance for specification option: Custom colours available upon request; consult manufacturer for more details and insert requirements. Manufacturer guidanceHPL colour. |
Sustainability data
Material | Aluminium High pressure laminate (HPL) |
Literature
Total Touchless Experience Brochure
Touchless WC Cubicles Brochure
