Revolution 100 Elite Affinity D/G Door

Name: Revolution 100 Elite Affinity D/G Door
Brand: Optima
SKU: 2BPVKGpbxLwJ7V45sVtJSd

Verified by manufacturer 4 months ago

Optima

Third party certifications:

BM Trada
Certificate type

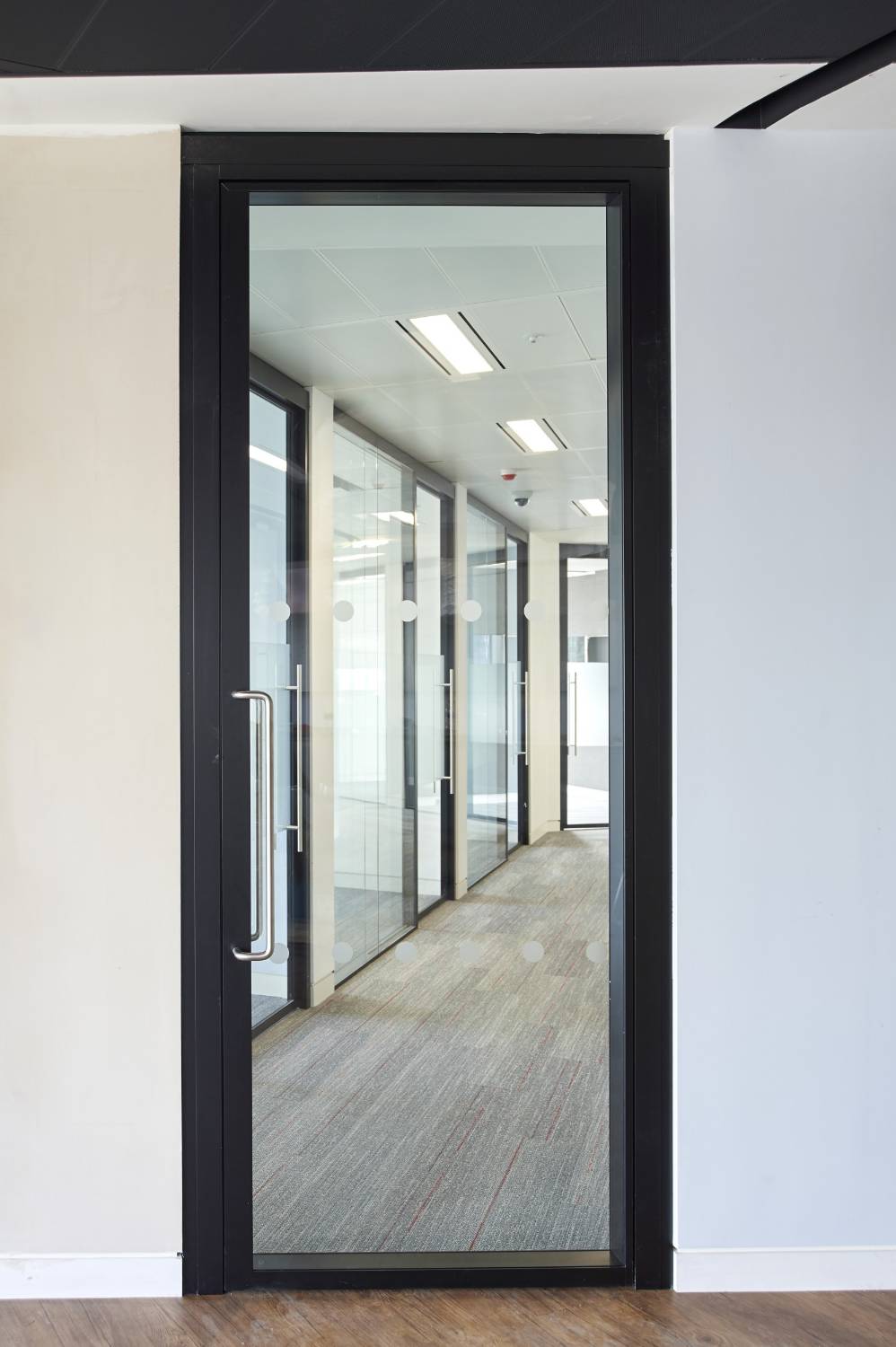

A framed, single-leaf, double-glazed acoustic glass doorset

Jump to:

+44 (0)1494 492725 Website

Application

Designed for use in conjunction with Revolution 100 double-glazed partition system.

Description

Double glazed heat-soaked toughened and acoustic laminate glass with a Microflush D660 aluminium door frame.

Features and benefits:

100 mm thick pivoting door
Offers maximum sound-proofing.
78 mm wide closing stile.
Double rebated with two door frame seals.
Includes door edge seals on all four edges.

General information

Color	Silver White Other Black
Finish	Anodized Grained Polished Powder-coated
Material	Glass Aluminium
Width	Bespoke
Height	Bespoke
Warranty description	Ten year Guidance for specification option: See Warranty Policy literature for more information.

Uniclass	Pr_30_59_24_02 Aluminium doorsetsPrimary
CAWS	L20/480 Doorsets L20/55 Doorsets

Product range	Doorsets

Specification data - Aluminium doorsets

Configuration	As schedule. As drawing. Guidance for specification option: Insert drawing reference number.
Doorset size	- Manufacturer guidance Available up to 3000 mm in height. Width of leaf (only): 1026 mm. Overall frame size: 1094 mm.
Performance	-
Acoustic performance	45 dB. Manufacturer guidance (Rw, maximum):
Frame	-
Material	Microflush D660 aluminium door frame.
Perimeter seals or inserts	Double-rebated with two door frame seals.
Finish	-
Coating	Anodized. Guidance for specification option: 25 microns thickness. Grained. Guidance for specification option: Brightened and protective anodized. Polished. Guidance for specification option: Brightened and protective anodized. Powder-coated, RAL. Guidance for specification option: Insert requirement; contact manufacturer for more information. Powder-coated, RAL 9006 Silver. Guidance for specification option: 50 microns, 30% gloss (nominal). Powder-coated, RAL 9010 White. Guidance for specification option: 50 microns, 30% gloss (nominal).
Door leaf	-
Thickness	Guidance for specification option: 6 mm, 8 mm (glazing thickness), 100 mm (total thickness).
Material	Glass.
Perimeter seals	Door edge seals on all four edges.
Glazing	-
Type	Double glazing: 6 mm heat-soaked toughened glass (to BS EN 14179) and 8.8 mm acoustic laminate glass (to BS EN 12543).
Manifestation	- Manufacturer guidance Insert requirements; contact manufacturer for more information.
Hardware	Dead lock. Latch. Sash lock. Other. Guidance for specification option: Insert requirements; contact manufacturer for more information.

Operating	Stainless steel offset pivots.
Locking	Dead lock. Latch. Sash lock.
Samples required	Not required. Required.
System performance	Acoustic performance.

Sustainability data

Contains Red List materials	Yes
Country of product manufacture	United Kingdom
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	64.5 kg CO₂ eq/m² Self declared Guidance for specification option: See Environmental Product Declaration literature for LCA data.
