Richmond Slate 10 Tile

Name: Richmond Slate 10 Tile
Brand: BMI Group UK Ltd
SKU: raEU9MWH1TTJMvyE1NbN8C

Verified by manufacturer 7 months ago

BMI Group UK Ltd

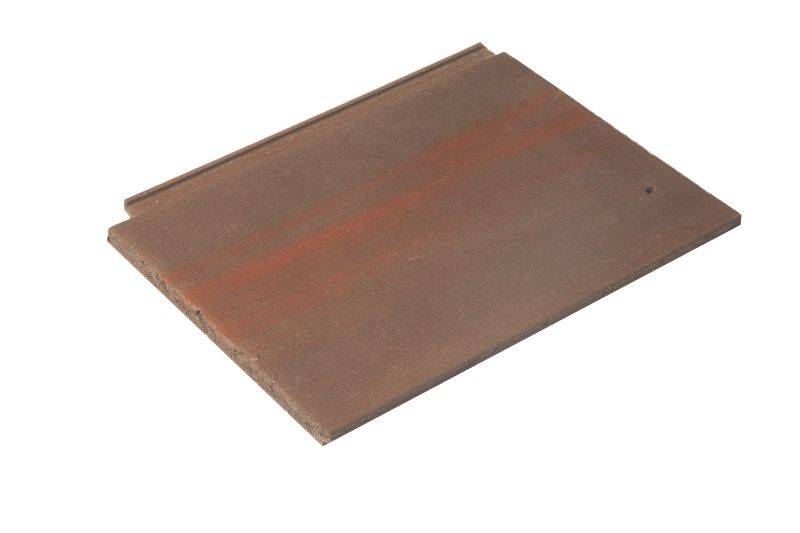

Concrete interlocking tiles with authentic slate appearance.

Jump to:

BOS

+44 (0)1908 015760 Website

Application

Suitable for new build or refurbishment projects.

Description

Concrete interlocking tiles with authentic slate appearance.

General information

Color	Red Grey Black Brown
Finish	- Manufacturer guidance Dependent on colour, consult manufacturer for details.
Material	Concrete
Shape	Rectangle
Length	418 mm
Width	330 mm
Height	19 mm
Warranty description	60 year Guidance for specification option: Redland Concrete Tile.

Uniclass	Pr_25_93_72_17 Concrete interlocking tilesPrimary
CAWS	H65/115 Concrete roof tiling H65/5 Roof tiling

Product range	Tiles / Slate Range

Specification data - Concrete interlocking tiles

Profile	Thin leading edge.
Head lock	Required.
Colour	Blue (64). Black (63). Slate Grey (30). Flame Red (38). Rustic Brown (40).
Surface finish	- Manufacturer guidance Dependent on colour, consult manufacturer for details.
Size	418 x 330 x 19 mm.

Batten size	38 x 25 mm. Guidance for specification option: Up to 450 mm support spacing. 50 x 25 mm. Guidance for specification option: Up to 600 mm support spacing.
Roof covering	9.7 tiles/m² at 343 mm gauge. 10.5 tiles/m² at 318 mm gauge. Manufacturer guidance Covering capacity.
Gauge	293 mm. Guidance for specification option: Minimum. 318 mm. Guidance for specification option: Maximum, 22.5°. 343 mm. Guidance for specification option: Maximum, ≥22.5°.
Cover	300 mm. Manufacturer guidance Linear cover.
Pitch	17.5°. Guidance for specification option: Minimum, 100 mm head lap. 22.5°. Guidance for specification option: Minimum, 75 mm head lap. 90°. Guidance for specification option: Maximum.
Head-lap	75 mm. Guidance for specification option: Minimum, ≥22.5°. 100 mm. Guidance for specification option: Minimum, 17.5–22.4°. 125 mm. Guidance for specification option: Maximum.
Weight	45 kg/m² at 343 mm gauge. 48kg/m² at 318 mm gauge.

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
IFC	IFC2X3	2
Revit	Revit 2015	4
