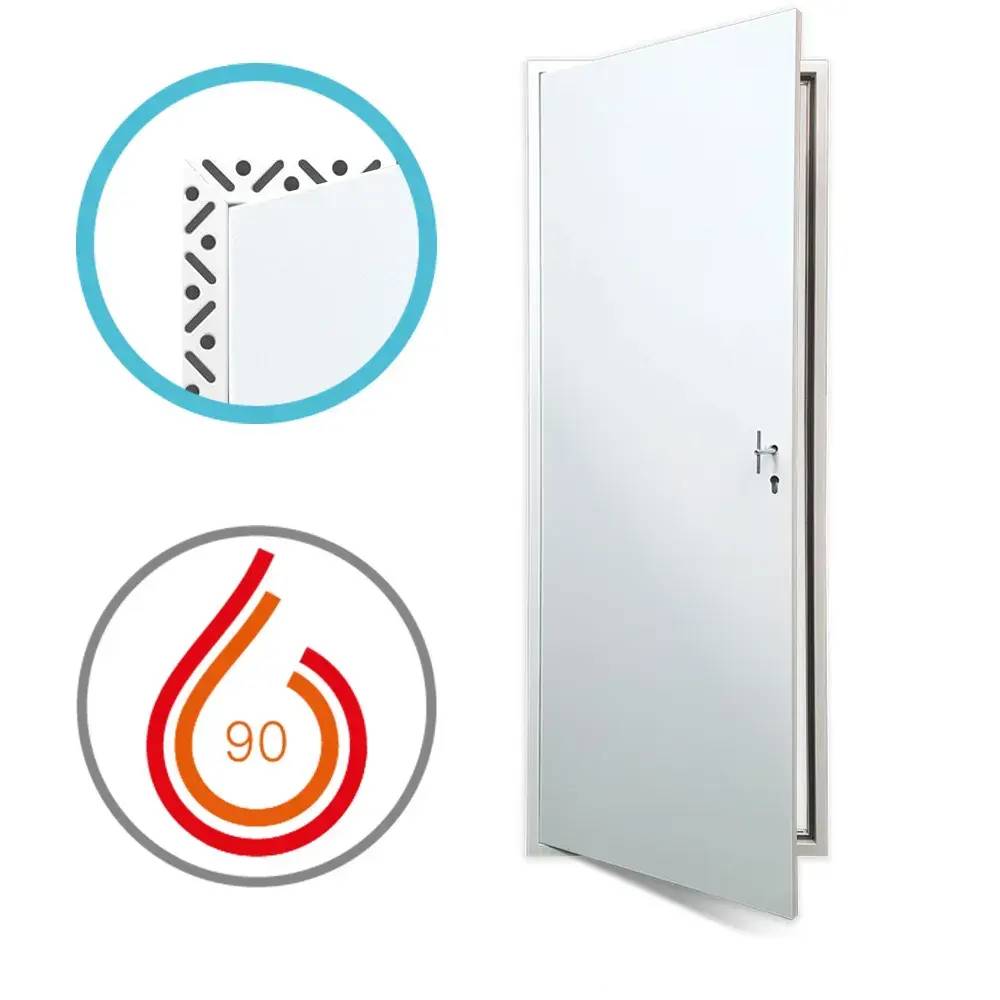

Riser Door Fire Rated 1.5 Hours Both Sides

Name: Riser Door Fire Rated 1.5 Hours Both Sides
Brand: Access Building Products Ltd
SKU: 2PeeD7G6Qt7zUZR9S8CDAt

Verified by manufacturer 4 months ago

Third party certifications:

Riser door access panel, fire rated from both sides to 90 minutes for wall use.

Jump to:

Application

Suitable for wall use.

Riser door access panel, fire rated from both sides to 90 minutes for wall use.

Features and benefits:

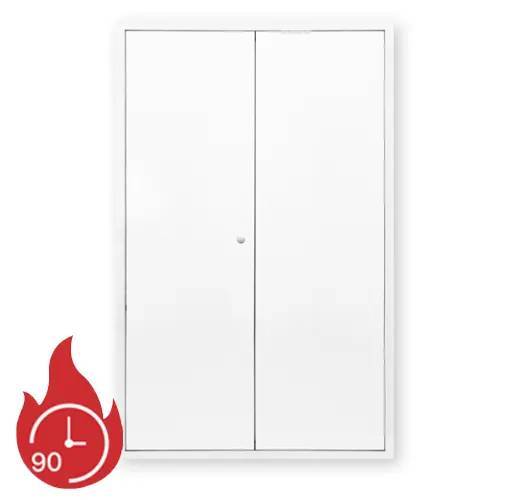

Available in sizes up to H: 2300 x W: 2100 mm (double door) and H: 2300 x W 950 mm (single door).
Available in picture or beaded frame.
Achieves a sound reduction of 36 dB in accordance with BS EN ISO 10140-2.
Fire rated for 1.5 hours on both sides - tested according to BS 476: Part 22.
Meets the requirements of Part B Building Regulations.
Smoke test compliant.

Color	White
Finish	Powder-coated
Material	Zintec steel Mineral wool
Shape	Square Rectangle
Length	2300 mm Guidance for specification option: Maximum length. Bespoke Guidance for specification option: Made to order.
Width	950 mm Guidance for specification option: Maximum width single door. 2100 mm Guidance for specification option: Maximum width double door. Bespoke Guidance for specification option: Made to order.
Height	78 mm
Warranty description	Two year

Uniclass	Pr_30_59_36_01 Access panelsPrimary
CAWS	K20/360 Access panels K10/430 Access panels L20/55 Doorsets L20/480 Doorsets

Fire performance	-
Fire resistance	90 minutes to BS 476-22.
Position	Wall-mounted.
Size	Guidance for specification option: Made to measure. Consult manufacturer and insert requirements. Bespoke sizes up to 2300 x 2100 mm double door. Bespoke sizes up to 2300 x 950 mm single door. Manufacturer guidance When selecting the access panel, please add 10 mm to the size when creating the structural opening. E.g. an access panel size of 1500 x 900 mm would fit a structural opening of 1510 x 910 mm.
Frame	Exposed picture frame type. Bead for taping and jointing.
Panel	-
Material	Steel. Guidance for specification option: Zintec steel.
Integral finish	Powder-coated.
Latch or lock type	Budget lock. Guidance for specification option: Equipped with an 8 mm square insert and can be opened using a metal T-key. Tamper proof lock. Guidance for specification option: Features a castellated insert and can be opened with a uniquely shaped metal key. Manufacturer guidance The lock operates with a 90-degree turn and provides three locking points between the frame and the door.
Operation	Zintec steel piano hinge, outward opening.
Integral accessories	Guidance for specification option: Consult manufacturer and insert requirements or omit.

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	40 %
