Roda Louvre Window - AOV Smoke vent SHEV - Louvre
Verified by manufacturer 24 days ago
TUV - Safety and Quality Report
Certificate type

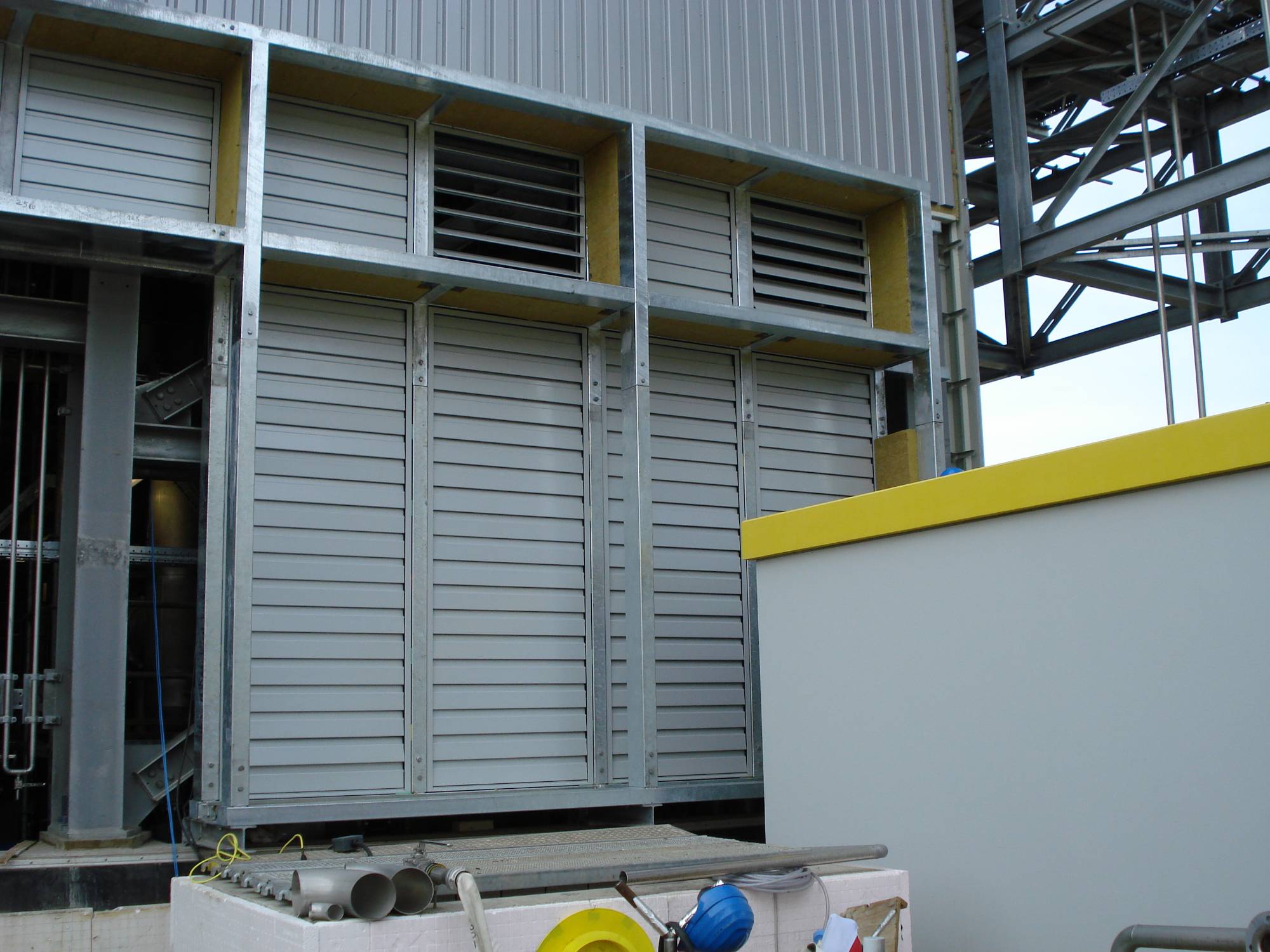

Thermally separated aluminium framed louvre windows for natural ventilation or smoke and heat extraction.
Application
Suitable for installation in vertical commercial facades.
Description
The TGL ISO is the thermally separated version of the NTL. Window and slat frames are made of thermally separated aluminium profiles with a frame construction depth of 50, 60 or 70 mm. The TGL ISO is approved as a natural smoke and heat extracting system to EN 12101-2.
Features and benefits:
- Function at low temperatures: T-20, subject to model and size.
Seals:
- Lateral with sealing brushes, horizontal profile joints with sealing brushes and EPDM gasket.
General information
Color | Clear |
Finish | Glazed |
Material | Aluminium Glass |
Shape | Rectangle Square |
Length | 800 mm 1000 mm 1200 mm |
Width | 1200 mm 1500 mm 1800 mm 2000 mm |
Uniclass | |
CAWS | L10/54 Louvres L10/490 Roof ventilators L10/47 Roof ventilators L10/650 Metal louvres |
Product range |
Specification data - Natural smoke and heat exhaust ventilators
Standard | To EN 12101-2. |
Aerodynamic free area | S200 -S1: 800 x 2000 mm (Aa 0.77 m², Ageo 1.1 m²).Guidance for specification option: 11 louvre. S200 -S2: 1000 x 1500 mm (Aa 0.72 m², Ageo 1.05 m²).Guidance for specification option: Eight louvre. S200 -S3: 1000 x 2000 mm (Aa 0.98 m², Ageo 1.41 m²).Guidance for specification option: 11 louvre. S200 -S4: 1200 x 1200 mm (Aa 0.73 m², Ageo 0.98 m²).Guidance for specification option: Seven louvre. S200 -S5: 1200 x 1800 mm (Aa 1.07 m², Ageo 1.53 m²).Guidance for specification option: Ten louvre. |
Wind load classification | To EN 12101-2:2003, WL 3000. |
Materials | |
Ventilator | |
Frame | Extruded aluminium.Guidance for specification option: Profiles with a frame construction depth of 50 mm and a frame face width of 38 mm. |
Louvres | Aluminium panel louvre blades.Guidance for specification option: Non-thermally broken, extruded aluminium panel louvre blades.
|
Finish | Anodized.Guidance for specification option: 25 micrometres. Powder coated.Guidance for specification option: 60–80 micrometres. |
Colour | Anodized silver - E6 EV1.Anodized E6/C31 - 35.Guidance for specification option: Insert requirements. RAL.Guidance for specification option: Can be powder coated to any RAL colour. Insert requirements. |
Seals | Lateral with sealing brushes, horizontal profile joints with sealing brushes and EPDM gasket. |
Fire resistance | To EN 12101-2:2003, Resistance to heat B 300 E. |
Acoustic performance rating | To DIN EN ISO 717-1, 38 dB. To DIN EN ISO 717-1, 39 dB. |
Standard: | To EN 14351-1:2006+A1:2010. Resistance to repeated opening and closing class 3 (DIN EN 1191). |
Operation | Electrically via 230 V AC. Electrically via 24 V DC. Pneumatically. |
Electrical supply | E-motor WAL, 24V, 0,65 A, 1600 N, IP50, E6/EV1, stroke 36 mm with 3,0 m cable (black), without pushbutton, without control. |
Fixing | Profiles for fixing in post beam construction, window construction or masonry. |
Dimensions and configurations | Insert requirements. Guidance for specification option:
|
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Germany |
Material | Aluminium Glass |
