Roller Blind on Louvolite 45mm System - Chain Control or Motorised.
Verified by manufacturer 22 days ago
Roller blinds with manual and motorised options.
Application
- Suitable For blinds up to 3.5 m wide, with a 12 lb maximum holding weight.
- Using manual or motorised operation, all blinds must be compliant with the child safety elements of BS EN 13120. Where children may be present, the chain must be fitted with easybreak connectors or a cord tidy.
Description
Manufactured using the Louvolite System 45 roller blind mechanism with specifically designed grooved 45 mm aluminium tubing. Can also have motorised control with a lithium battery or hardwired motor.
Features and benefits:
- Designed and manufactured in the UK, all Louvolite systems are ten-year life cycle tested to ensure long lasting performance.
- System 45 Slide-Lock combines heavier holding weights with anti-fray features that ensure enhanced blind performance.
- Manufactured using high quality engineering grade polymer.
- Improved chain location for quick and easy on-site adjustment.
- Easi-Lift option available for larger blinds.
- Universal brackets and a spring idle end plunger enable easy and quick installation.
- Cassette/fascia option available.
General information
Color | Black White Beige Grey |
Finish | Powder-coated |
Material | Aluminium Nylon Plastic Steel |
Shape | Square Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | N1/302 Window blinds B12/400 Blinds B12/50 Blinds N10/240 Blinds N10/70 Blinds |
Specification data - Roller blinds
Classification data | |
Standards | To BS EN 13120. |
Dimensions (minimum width x depth) | Manufacturer guidanceConsult technical datasheet for maximum width and drop depending on the weight of fabric specified. |
Blinds | |
Material | Manufacturer guidanceAn extensive range of fabrics are available, consult manufacturer for details and insert requirements, including black out options if applicable. |
Tube | |
Material | R8027 Aluminium Tube, Triple Slot and slide-lock control end set. |
Diameter | 45 mm. |
Tube covers | |
Material | Polymer bracket covers. |
Colour | Beige. Black. Grey. White. |
Operation | Manual, plastic ball chain. Manual, metal ball chain. |
Accessories | R8122 Round bottom bar and end cap. R8128 Gemini bottom bar and end cap. R8129 Smart rail bottom bar and end cap. R8300-PVC Bottom bar and end cap. R8302-PVC-T.DROP Tear drop bottom bar and end cap. R8302-PVC-T.DROP Tear drop bottom bar and wrap around end cap |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Aluminium Nylon Plastic Steel |
Recyclability | 95% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % |
Expected Life | Five year |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

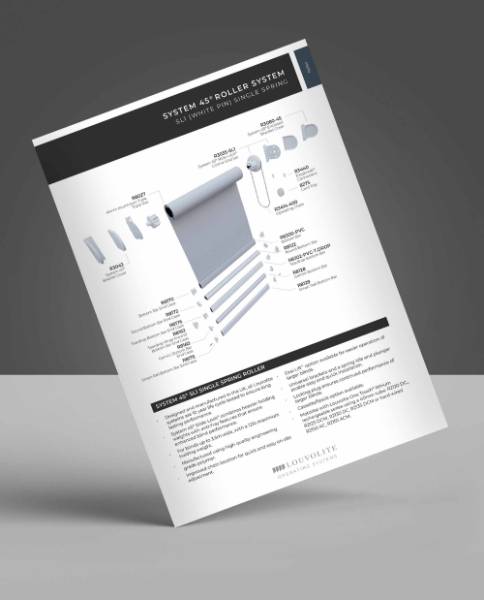

Roller System 45® Spring Roller System Technical Specification
