Roof Access Hatch RHT with Scissor Stair
Verified by manufacturer 19 hours ago
Electric Scissor Stairs Large
Electric Scissor Stairs Large
Roof access hatch with 80 mm insulated, thermally broken construction and gas spring-assisted opening, powder-coated as standard. A roof hatch with scissor stairs is available in five combinations.
Application
- The Small+ scissor stair model is suitable for use in small spaces with a maximum ceiling height of 3000 mm. The scissor stair folds out to 500 mm, while the roof hatch has a compact clearance of 700 x 1000 mm.

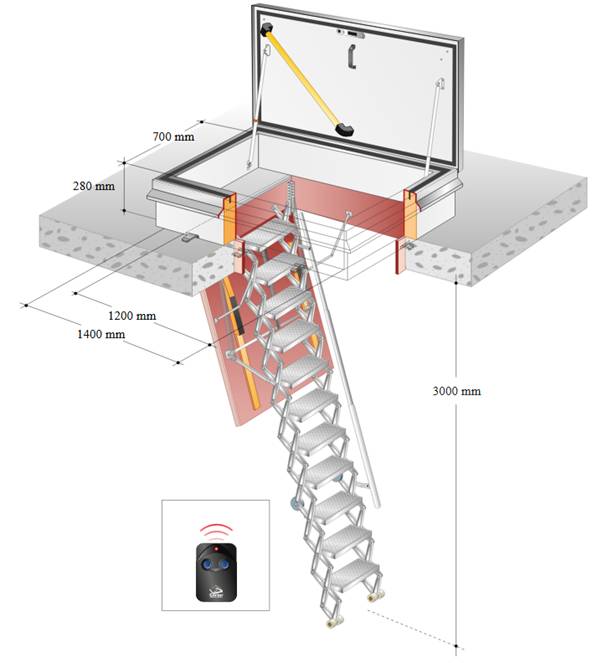

- The Large Electric scissor stair model provides generous access to the roof and is available for ceiling heights of maximum 3000 or 3500 mm. The roof hatch has an opening of 700 x 1400 mm.
- The Large+ scissor stair model provides generous access to the roof and is available for ceiling heights of maximum 3000 or 3500 mm. The roof hatch has an opening of 700 x 1400 mm.
- The Large fireproof scissor stair model provides generous access to the roof and is available for ceiling heights of maximum 3000. The roof hatch has an opening of 700 x 1400 mm.
- The XL+ scissor stair model was developed in part to reach higher lift machine rooms and utility rooms, and is supplied with an Aboma certificate for access to (lift) machine rooms in accordance with EN-ISO 14122-3. The 480-mm wide stair treads and larger roof hatch with an opening of 1000 x 1500 mm simplify taking materials to upper areas/ roof.
- Small+, Large+ and XL+ can be supplemented with bridging steps.
- Can be installed on flat roofs with a maximum slope of 30°.
Description
Roof hatches with scissor stairs providing practical and safe access to flat roofs for a range of applications.
Roof hatches combined with a scissor stair are particularly suitable for applications where occasional but also frequent access to the roof is required. When the scissor stair is folded, you always have free space under the hatch.
Roof hatches can be installed on flat roofs with a maximum slope of 30°.
Features and benefits:
- CE (ETA-15/0338), TÜV NORD and Aboma certified, with fully thermally broken curb and cover.
- Scissor stair with Aboma quality mark.
- Roof hatch safe operation with one hand.
- Safe grip all the way to the roof.
- Ten-year warranty on the roof hatch, one-year on climbing devices.
- Optional electric control of roof hatch.
- High-quality aluminium construction of hatch and scissor stair.
- Euro cylinder lock with indoor and outdoor operation.
- Burglar-proof and sound-proof roof hatch.
- Available as an integrated scissor stair unit (RHTS; specified separately).
Also available as a standard model (hatch only), special sizes (hatch only) with fixed stairs, glazed or fire rated (all specified separately).
General information
Color | Grey Guidance for specification option: Roof hatch, external. White Guidance for specification option: Roof hatch, internal, standard. Black Guidance for specification option: Roof hatch, internal. Silver Guidance for specification option: Scissor stair. |
Finish | Powder-coated Guidance for specification option: Roof hatch. Anodized Guidance for specification option: Scissor stair. |
Material | Aluminium Guidance for specification option: Scissor stair. Other Guidance for specification option: Roof hatch. |
Shape | Rectangle Square Manufacturer guidanceHatch only. |
Length | 1000 mm 1400 mm 1500 mm Manufacturer guidanceRoof hatch, opening. |
Width | 700 mm 1000 mm Manufacturer guidanceRoof hatch, opening. |
Height | Bespoke Guidance for specification option: Varies according to ladder size. |
Warranty description | Ten year Guidance for specification option: Roof hatch. One year Guidance for specification option: Climbing device. |
Uniclass | |
CAWS | L20/60 Doors L20/630 Hatches |
SKU Code | RHT7010, RHT7014, RHT1015 |
Specification data - Roof hatches
Classification data | |
Format | External. |
Performance | |
Fire resistance | Manufacturer's standard. |
Door | |
Orientation | Horizontal. Guidance for specification option: For flat roofs, maximum slope of 30°. |
Position | Flush. |
Material | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Operation | |
Mode | Automatic. Guidance for specification option: Electric operation. |
Control | Radio frequency (RF). |
Third-party certification | CE ETA-15/0338. Aboma certificate. TÜV NORD certified according to EN 14975:2010, with label ''Baumuster geprüft". Scissor stair with Aboma and TÜV NORD quality mark. |
Dimensions | Roof hatch: 700 x 1400 mm. Guidance for specification option: Hinge side is on long side. |
Floor-to-ceiling height | Guidance for specification option: Insert requirements, maximum 3000 mm. To be specified from top of floor to bottom of cover. |
Weight | Roof hatch: 68 kg. |
Colour | Roof hatch: RAL 7047 (external); RAL 9010 (internal). Guidance for specification option: Standard. Telegrey 4/ Pure white. Roof hatch: RAL 7047 (external); RAL 9004 (internal). Guidance for specification option: Telegrey 4/ Signal black. |
Applied finish | Roof hatch: powder-coated. Ladder: manufacturer's standard. |
Ladder | Cast aluminium electric scissor stair Large. Guidance for specification option:
|
Locking | Stainless steel Euro cylinder lock, inside and outside operation. |
Hardware | Compact control unit 230 V a.c., motor (24 V d.c.). Wireless RF remote control. Stair guide control system. |
Extension | Not required. Guidance for specification option: Scissor stairs can be used with an extension of scissor stair to bridge a plenum (= space between suspended ceiling and roof). Stair extension two steps. Stair extension three steps. Stair extension four steps. |
Insulation | Roof hatch to EN ISO 10077-2, Uw ≤0.276 W/m²K. |
Impact resistance | Roof hatch: Impact hard body to EN 356, Class P5A. Impact soft body to EN 13049, Class 5. |
Load resistance | Roof hatch: resistance to permanent loads to Eurocode EN 1993-1-1, 1050 kg/m². Guidance for specification option: Roof hatch. |
Sound reduction | Roof hatch to EN ISO 140-3, 26 dB. |
Air permeability | Roof hatch to EN 12207, Class 3. |
Watertightness | Roof hatch to EN 12208, Class E 650. |
Wind load resistance | Roof hatch to EN 12210, Class E 3000. |
Snow load | Roof hatch to EN 1991-1-3, 3.97 kN/m². |
Integral accessories | Diagonal Gorter yellow handrail. Counterbalancing system for assisted opening and controlled closing. |
Sustainability data
Country of product manufacture | Netherlands |
Material | Aluminium Guidance for specification option: Scissor stair. Other Guidance for specification option: Roof hatch. |
