A range of sound absorber for the ceiling and wall as well.
Application
- Recreation and culture.
- Workplace.
- Healthcare.
- Education.
- Transport.
- Industry.
- Public institutions.
- Hotels and gastronomy.
- Public areas.
Description

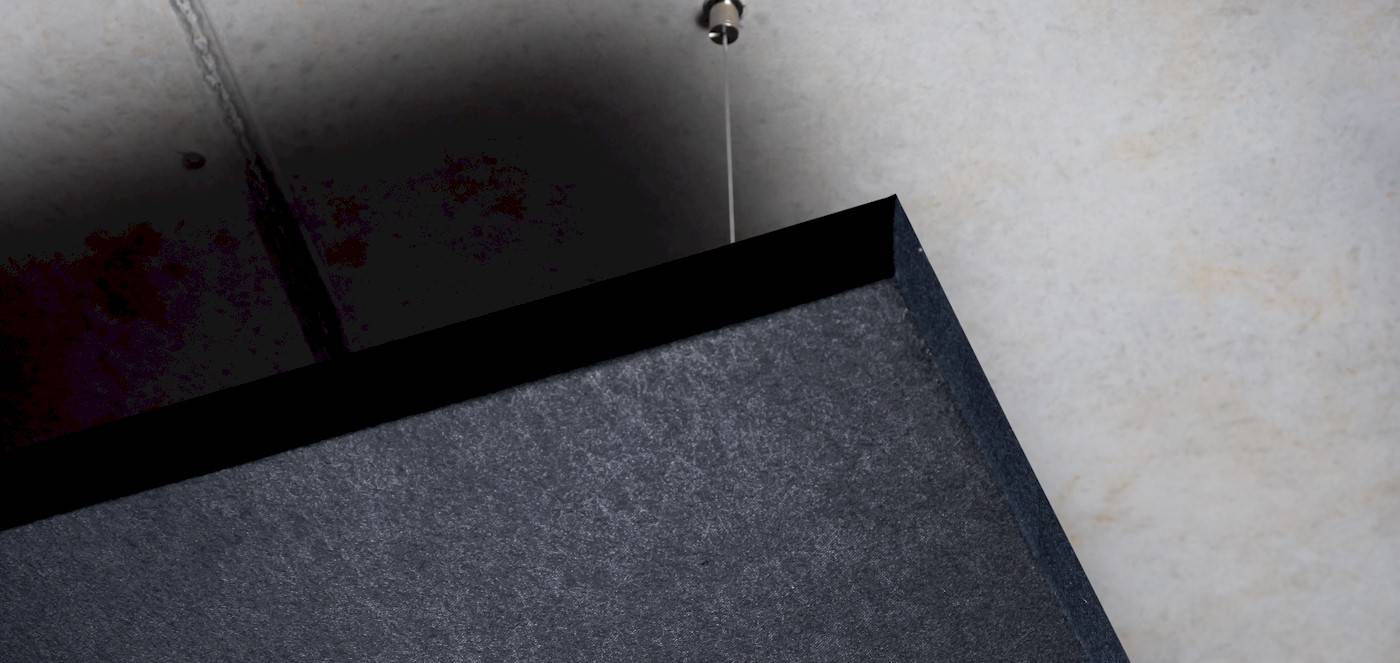

The classic among sound absorbers:
With MUTE+ board, receive sound absorbers made of high-quality polyester, this not only improves the acoustics in a room, but also provides a sustainable solution.
The sound absorber is available in different colours - but is 100 % recyclable in every version. Customize the sound absorber by changing the dimensions, geometries and other designs such as straight or wavelike baffles, free-form shapes.
Features and benefits:
- Free of mineral fibre, suitable for people suffering from allergies.
- Tested for harmful substances according to Oeko-Tex® standard 100.
- 100% recyclable.

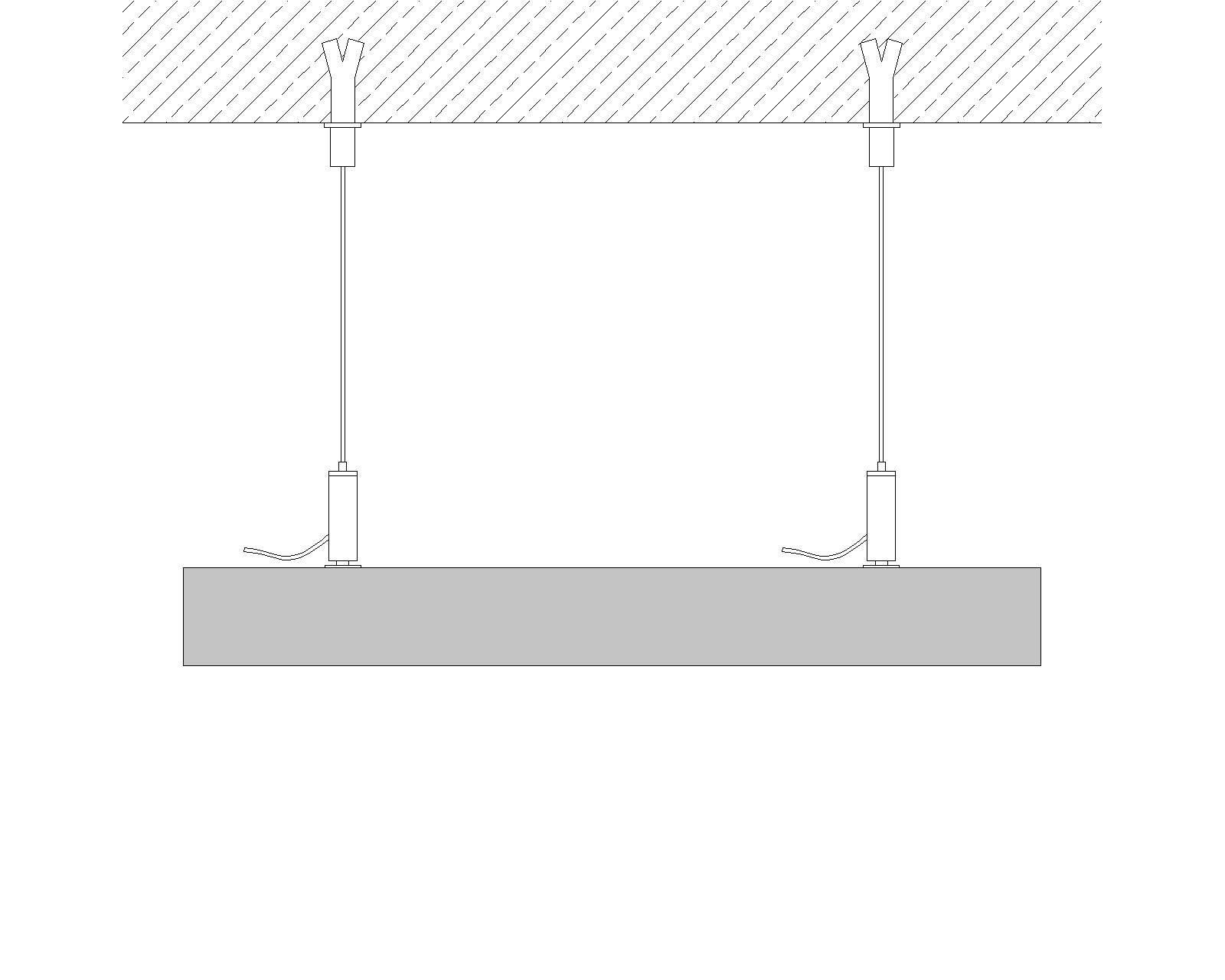

- Installation on ceilings or partitions in interiors.
- Sound absorption class: B and A.
- Individual sizes and shapes possible.
- Available in 5 colours
General information
Color | White Black Grey |
Finish | Other |
Material | Polyester |
Shape | Rectangle Trapezoid Circle Oval Square |
Length | 750 mm 1000 mm 1250 mm 1500 mm Bespoke |
Width | 750 mm 1000 mm 1250 mm 1500 mm Bespoke |
Height | 40 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | K13/170 Acoustic panel lining K13/170 Acoustic panel lining |
Specification data - Sound attenuator infill units
Form | Panel. |
Rigidity | Flexible. |
Application | Ceiling and wall mounting. |
Material | Polyester. |
Acoustic performance | |
Purpose | Absorber. |
Sound absorption | Class A-B to BS EN ISO 11654. |
Fire performance | |
Fire resistance | To DIN 4102, B1. |
Dimensions | |
Size (length x width) | 750 mm.Guidance for specification option: Standard dimensions. 1000 mm.Guidance for specification option: Standard dimensions. 1250 mm.Guidance for specification option: Standard dimensions. 1500 mm.Guidance for specification option: Standard dimensions. Other.Guidance for specification option: Individual dimensions. 300—2,000 mm. Manufacturer guidanceDiameter. |
Thickness (overall) | 40 mm. |
Profile | Geometric profile. |
Surface pattern | Solid. |
Finish | Material. |
Colour | White.Black.Grey marbled.Dark grey marbled.Night grey marbled. |
Accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Weight | 4 kg/m². Guidance for specification option: Approximately. |
Sound absorption coefficient | To DIN EN ISO 354, 0.80—1.00 αw. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Recyclability | 100% |
Third party certifications
Third party certifications
Literature
MUTE+ board R40
Case studies
Friedrichscarrée ( FCS ) - Stuttgart, Germany
70 ST MARY AXE - Metal ceilings, Luminous ceilings, BREEAM
