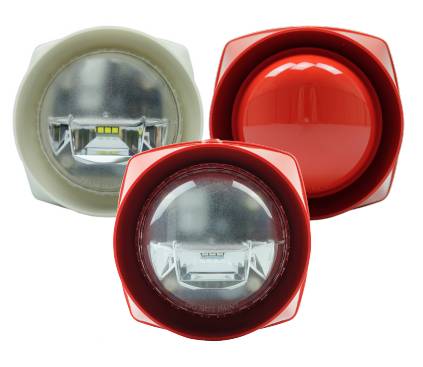

S-Cubed Sounders and VADS - Loop Powered Alarm Sounders and VADS

S-Cubed offers a comprehensive range of loop powered alarm sounders with integrated voice and EN 54-23 certified low current consumption, high performance visual alarms. Combined with flexible configuration from the fire control panels, this loop powered device can give a differentiated combination of audible and visual alarms for alert and general evacuation.

Features and benefits:

• Very low power consumption means that the Vigilon system offers more high performance sounders and VADs on the loop than any other manufacturer.
• Each loop can support up to 200 voice sounders, 100 visual alarm devices (VADs) and up to 70 combined sounder VADs.
• Alarm tones full synchronised across all loops on a control panel.
• EN 54-23 VADs with adjustable light coverage matching the sounder output.
• Environmentally Protected (EP) range with an IP66 rating.
• Four voice phrases and a bell tone available as standard.
• Voice and tone modes can be freely configured within the same sounder.
• 3 different alarm tones selectable for Alert, Evacuate and other emergency tones.
• Active background monitoring of sounder and VAD circuits.
• Short circuit isolator in each device.
• SOFT Addressing technique, no need for DIP switch, EPROMS or programming at time of installation.
• Adjust the sounder volume via the commissioning tool, the panel or the HandiLink infrared remote control.
• EN54-3, EN54-17 & EN54-23 certified depending on which variant is selected.
