SADEV Glass Canopies from BM Architectural

Verified by manufacturer today

Plazza

BM Architectural Variant:

Glass canopies from the SADEV® Classic range.

Jump to:
0114 254 3226 Website

Application

Glass canopies for a range of applications.

Description

Glass canopies from the SADEV® Classic range.

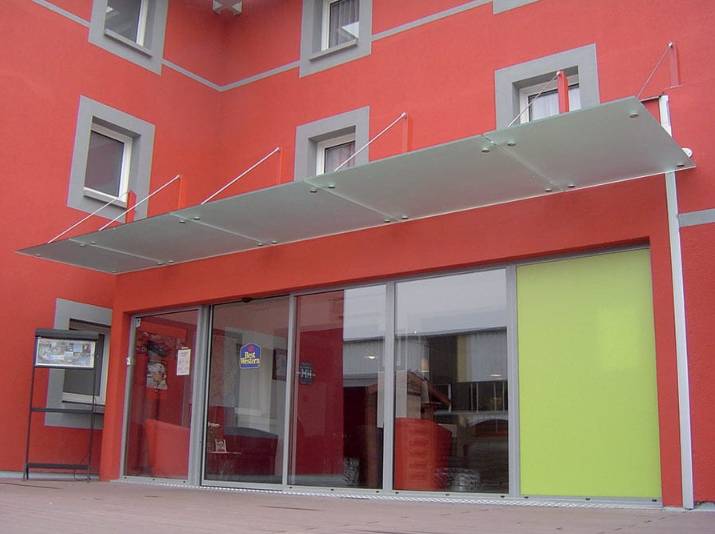

Plazza:

  • Glass canopy with several fixing points.
  • Easy installation.
  • Multiple glazing from 13.52 to 25.52 mm.
  • Available as a kit.
  • Evolutive according to the glass panels.

Light:

  • Glass design canopy for house front door.
  • Good value for money: competitive.
  • Only one reference to order.
  • Glass thickness is 5.5 or 6.6 mm.
  • Full kit available.

Arcade:

  • Four to six point glass canopy.
  • Easy and quick to install.
  • Available in kit for glass thickness from 13.52 to 25.52 mm.
  • Tailor-made canopy can be designed to project requirements.

General information

Color

Clear

Silver

Finish

Smooth

Material

Glass

Stainless steel

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Uniclass

Pr_20_65_78_58 Open-sided sheltersPrimary

CAWS

B91/475 Glass

L10/59 Solar shading systems

L10/680 Solar shading systems

B91/330 Canopy

SKU Code

13PLAM12

Specification data - Open-sided shelters

Classification data

Shelter description

Glass canopy with several fixing points.

Dimensions

-

Plan size

As Roof covering.

Frame

-

Material

Grade 316 stainless steel.

Finish

Manufacturer's standard.

Colour

Silver.

Roof covering

Glazed, 8–15 mm thick.

Guidance for specification option:

Insert requirements.

  • Maximum glass panel: 2700 x 2700 mm.
  • 8–15 mm thick.

Glazed, up to 22 mm thick.

Guidance for specification option:

Insert requirements.

  • Maximum glass panel: 2700 x 2700 mm.
  • Greater than 15 mm, up to 22 mm.

Glazed, up to 26 mm thick.

Guidance for specification option:

Insert requirements.

  • Maximum glass panel: 2700 x 2700 mm.
  • Greater than 22 mm, up to 26 mm.

Manufacturer guidance

Consult manufacturer's literature for fixing point locations.

Accessories

None.
Tension rod options.

Fixings

Bottom brackets, top brackets, gussets, double bottom brackets, double gussets and tension rods as required.

Manufacturer guidance

See Accessories for further options.

Point fixings

Four.
Six.

Sustainability data

Material

Glass
Stainless steel
