SafeLINC - Connected Services Gateway
Verified by manufacturer 3 days ago
SafeLINC connected products access critical life safety system information from anywhere, monitor a fire and life safety system data through the cloud anytime, anywhere with live notifications.
Application
Compatibility:
- For use with Fireclass FC32, FC64, FC240, FC501, FC506, FC503, FC600 and FC700 fire alarm control panels
- Backward compatibility.
- Connects to a fire panel by Ethernet cable or by serial cable at a COM1 serial port.
Description

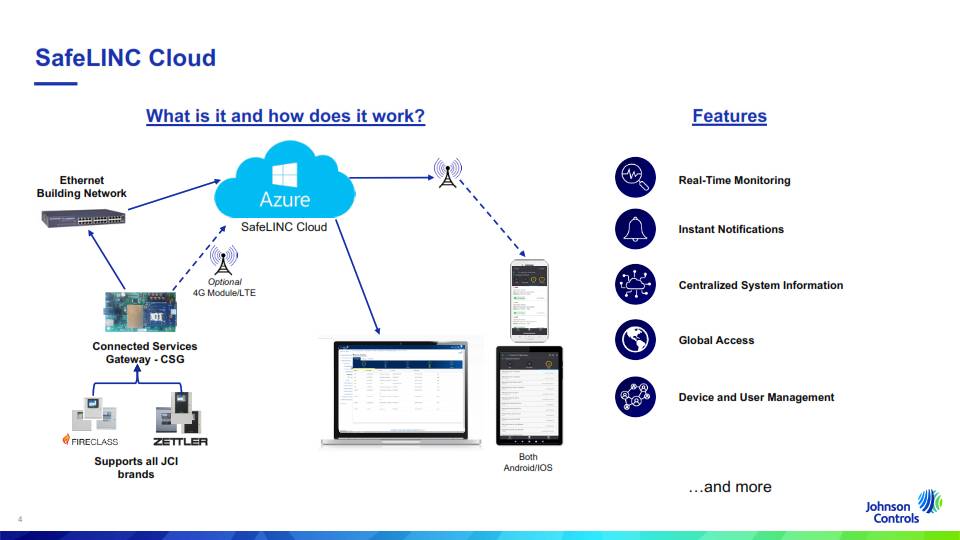

SafeLINC Cloud Services is a service facilitated by the CSG. SafeLINC allows authorized users to digitally access a fire alarm system, and provides remote access to fire alarm system activity, developed in accordance with internationally recognized cyber security standards.
Features and benefits:
- Encrypted and secure connection to the fire panel through iOS®, Android®, and web applications.
- Provides real-time fire panel events notification, including Fire, Pre-alarm, and Fault.
- Single portal facilitates users to view all their connected fire panels.
- Downloadable fire panel status reports SafeLINC Cloud Services.
- Enterprise server reporting features IP and cellular capabilities.
General information
Color | Grey Black |
Finish | Smooth |
Material | Metal Acrylic Plastic |
Shape | Rectangle |
Length | 239.00 mm |
Width | 53.00 mm |
Height | 156.00 mm |
Warranty description | Three year |
Uniclass | |
CAWS | S92/420 Alarm devices W53/350 Remote indicators W90/120 Fire detection and alarm systems in domestic premises |
SKU Code | 557.202.146, 557.202.141, 557.202.132, 557.202.145, 557.202.142, 557.202.143, 557.202.144 |
Specification data - Fire alarm panels
Classification data | |
Standard | To EN 54-21:2006. |
Third-party certification | CE and UKCA marked. |
Installed capacity | Manufacturer guidanceConsult manufacturer and insert requirements. |
Printer | Not required. |
Outputs | Standardized input and output interface. |
Enclosure | |
Material | Metal, acrylic and plastic. |
Finish | Smooth. |
Colour | Grey. Black. |
Mounting | Surface. |
Enclosure size | 239 x 53 x 156 mm. |
Weight | 1.40 kg. |
Position | Internal. External. |
Accessories | Not required. 557.202.145: 4G module and antenna kit. Guidance for specification option: Optional, used in conjunction with the Fireclass CSG. 557.202.142: 15 ft (4.57 m) antenna extension kit. Guidance for specification option: Optional. 557.202.143: 25 ft (7.62 m) antenna extension kit. Guidance for specification option: Optional. 557.202.144: 50 ft (15.24 m) antenna extension kit. Guidance for specification option: Optional. |
Sustainability data
Contains Red List materials | No |
Material | Metal Acrylic Plastic |
