Application

For the attachment of the Schlüter®- BEKOTEC-THERM-HR heating pipes, with a diameter of 16 mm. Suitable for use with conventional cement screeds.

Description

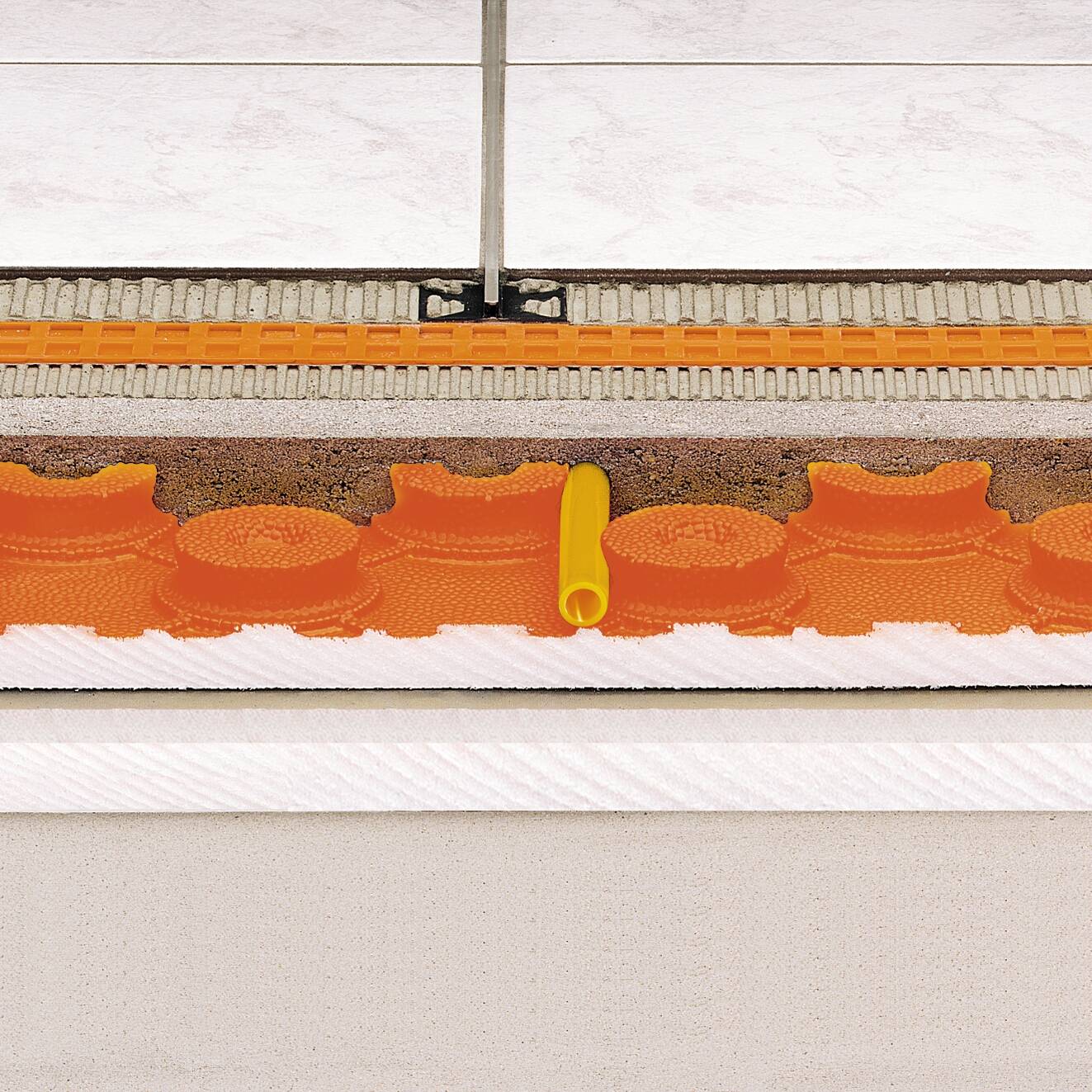

Studded screed panel made of polystyrene, grooved for optimal joining. The heating pipes are attached in the desired spacing between the cutback studs, which are arranged in a regular spacing pattern of 75 mm.


Features and benefits:

  • The system is based on the specially structured studded foil panel Schlüter-BEKOTEC-EN with evenly spaced openings and interconnected channels.
  • Material classification: B2 pursuant to DIN 4102.

General information

Color

Orange

White

Finish

Studded

Material

Polystyrene

Shape

Rectangle

Length

1060 mm

Width

755 mm

Height

42 mm

Warranty description

Five years

Guidance for specification option:

For the life of the cover assembly, provided all installation instructions were observed and the covering is used as intended.

Uniclass

Pr_25_57_51_38 High-impact polystyrene (HIPS) studded sheetsPrimary

CAWS

T90/475 Underfloor heating systems

T90/475 Underfloor heating systems

Product range

Modular Screed Systems

Specification data - High-impact polystyrene (HIPS) studded sheets

Standard

B2 pursuant to DIN 4102.

Material

-

Studded layer

Polystyrene.

Sheet thickness

23 mm.

Product Reference

Schlüter®-BEKOTEC-EN

Opening size

50 mm.

Guidance for specification option:

Approximately.

Diameter

65 mm.

Guidance for specification option:

Approximately.

Sustainability data

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

-

Manufacturer guidance

Waste and reclaimed material can be recycled where facilities exist.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

2

Revit

Revit 2016

3
