Application

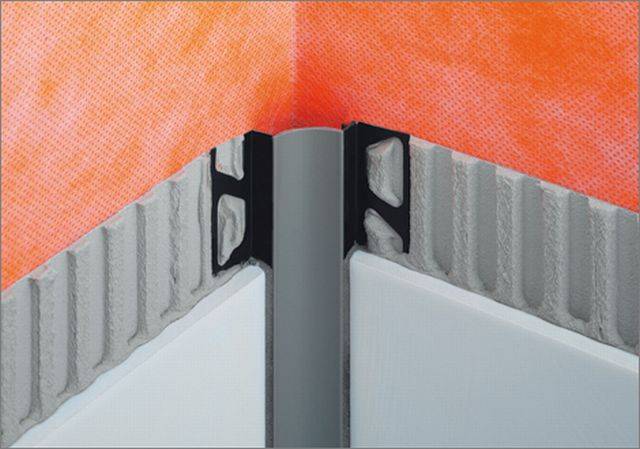

For internal wall corners and wall/floor transitions.

Description

A prefabricated profile that has trapezoid perforated anchoring legs made of rigid PVC, connected to a 18 mm radius cove-shaped movement zone made of soft CPE. Installation is preferred by Schlüter-Systems trained installers.


Features and benefits:

  • Conforms to hygienic requirements for commercial bathrooms and food processing industry.
  • End covers, internal and external corners are available.

General information

Shape

L-shaped

Color

White

Guidance for specification option:

Brilliant white.

Grey

Guidance for specification option:

Grey or Pastel grey.

Beige

Manufacturer guidance

Light Beige and Pastel Grey

Finish

Colour coated

Material

Polyvinyl chloride (PVC)

Guidance for specification option:

Legs.

Chlorinated polyethylene elastomer (CPE)

Guidance for specification option:

Movement.

Warranty description

Five years

Size

7 x 18 x 2500 mm

9 x 18 x 2500 mm

11 x 18 x 2500 mm

Uniclass

Pr_35_90_22_66 Preformed tiling strip jointsPrimary

CAWS

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/120 Mosaic to

M40/5 Tiling to

M40/80 Strip movement joints

M40/825 Strip movement joints

Product range

Movement And Control Joint Profiles

Specification data - Preformed tiling strip joints

Material

Polyvinyl chloride (PVC).

Guidance for specification option:

Legs.

Chlorinated polyethylene elastomer (CPE).

Guidance for specification option:

Movement.

Finish or colour

Brilliant white (RAL 9033).

Grey (RAL 7030).

Light beige (RAL 1019).

Pastel grey (no RAL).

Size

-

Length (minimum)

2.5 m.

Depth

7 mm.

9 mm.

11 mm.

Product Reference

Schlüter®-DILEX-HKW

Accessories

Not required.

End covers.

External corners.

Internal corners.

Sustainability data

Country of material origin

Germany

Country of product manufacture

Germany

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Waste and reclaimed material can be recycled where facilities exist.
