Schlüter®-ECK-E

Name: Schlüter®-ECK-E
Brand: Schlüter-Systems Ltd
SKU: vLRiSqjwa9Rsgb44WeuGFL

Verified by manufacturer 4 months ago

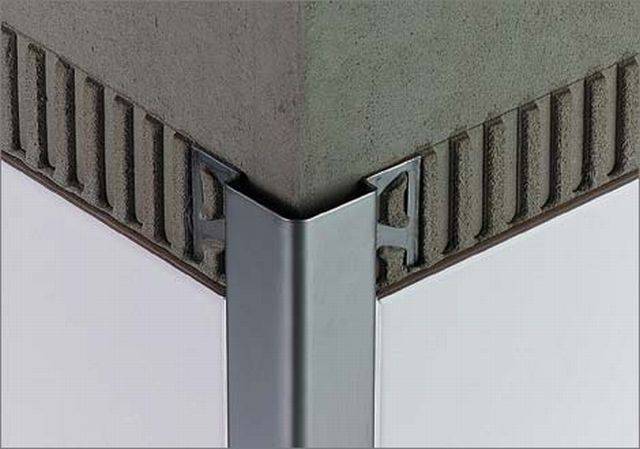

A stainless steel corner profile.

Jump to:

Application

To protect tiled outer wall corners subject to heavy stresses. Suitable for:

A stainless steel corner profile, featuring 37 mm wide visible surfaces, with a trapezoid-perforated anchoring leg.

Installation is preferred by Schlüter-Systems trained installers.

Features and benefits:

The surface of the profile forms a symmetrically rounded outside corner for the tiled surface.
The profile provides excellent edge protection in case of mechanical stresses, as well as a clean and decorative finish for the wall corner.

Shape	Square
Color	Grey
Finish	Brushed Natural
Material	Steel Guidance for specification option: Stainless steel V2A- 1.4301 or Stainless steel V4A- 1.4404.
Warranty description	Five years
Size	6 x 37 x 2500 mm 8 x 37 x 2500 mm 11 x 37 x 2500 mm

Uniclass	Pr_35_90_22_66 Preformed tiling strip jointsPrimary
CAWS	M40/10 Natural stone covering to M40/110 Tiling to M40/115 Natural stone covering to M40/120 Mosaic to M40/5 Tiling to

Material	Stainless steel V4A, 1.4404. Guidance for specification option: Stainless steel V2A, 1.4301 or Stainless steel V4A, 1.4404. Stainless steel V2A, 1.4301.
Finish or colour	Brushed. Guidance for specification option: Stainless steel V2A, 1.4301 only. Natural.
Size	-
Length (minimum)	2.5 m.
Depth	6 mm. 8 mm. Guidance for specification option: V4A stainless steel only 11 mm. Guidance for specification option: V4A stainless steel only

Product Reference	Schlüter®-ECK-E

Country of material origin	Germany
Country of product manufacture	Germany
Recycled content As defined in clause 7.8 of BS EN ISO 14021	- Manufacturer guidance Waste and reclaimed material can be recycled where facilities exist.
