Application

For draining balconies and terraces that are enclosed by a parapet wall.


Description

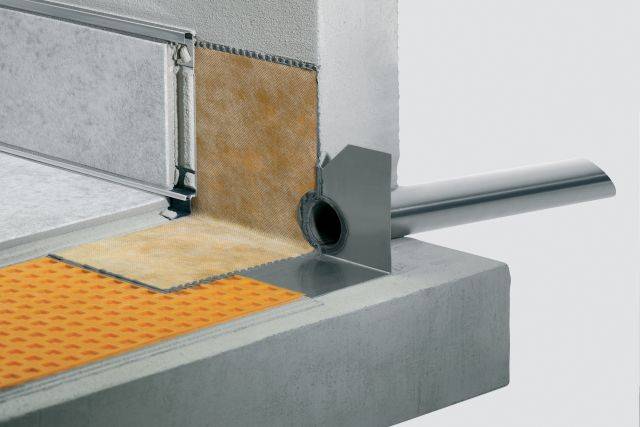

A stainless steel spout with a Schlüter-KERDI collar attached to the large adhesive flange as a waterproofing connection. This allows for a simple and safe connection to waterproofing assemblies. Installation is preferred by Schlüter-Systems trained installers.


Features and benefits:

  • The spout is available in 250 and 400 mm lengths and must be selected in accordance with the width of the parapet wall and/or local conditions.
  • The drainage pipe has an inner width of 41 mm. The spouts to be used must be dimensioned accordingly.

General information

Color

Silver

Finish

Smooth

Material

Steel

Guidance for specification option:

Stainless steel, material no. 1.4301 (V2A).

Shape

Other

Guidance for specification option:

Cylinder

Length

125 mm

140 mm

Width

45 mm

Height

100 mm

Warranty description

Five year

Uniclass

Pr_65_52_03_80 Stainless steel rainwater pipes and fittingsPrimary

CAWS

R10/431 Stainless steel pipework

Product range

Waterproofing, Uncoupling, Drainage and Sound Insulation

Specification data - Stainless steel rainwater pipes and fittings

Size (nominal)

41 x 250 mm.

41 x 400 mm.

Grade

1.4301 (V2A).

Finish

Natural.

Product Reference

Schlüter®-KERDI-DRAIN-SP

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

Where product is reclaimed from the building the material can be recycled where facilities exist.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Waste and reclaimed material can be recycled where facilities exist.

Literature

8.5 Schlüter-KERDI-DRAIN-SP-E - Technical Data Sheet
