Schlüter®-TROBA-PLUS - Surface Drainage
Verified by manufacturer 4 months ago
Schlüter®-TROBA-PLUS 8
Schlüter®-TROBA-PLUS 8
A durable and reliable polyethylene sub-surface drainage system that prevents the possibility of capillary action, for use over sloped waterproofing layers.
Application
Floor surface drainage for exterior tile or stone coverings on balconies and terraces.
Schlüter-TROBA-PLUS 8 - 10 mm high for residential and commercial applications
Schlüter-TROBA-PLUS 12 - 12 mm high with higher flow rate for residential and commercial applications
Description

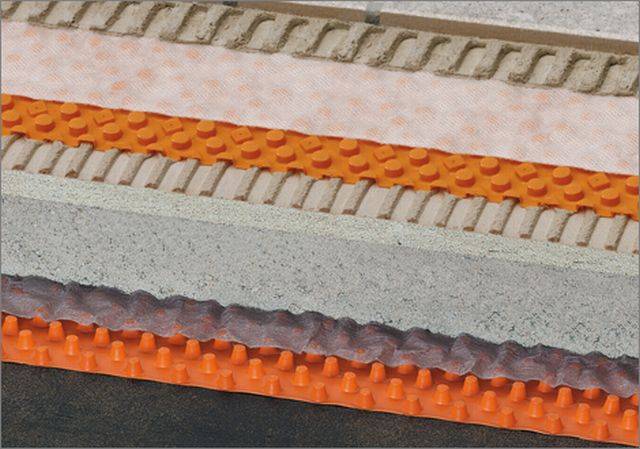

A durable and reliable polyethylene sub-surface drainage system that prevents the possibility of capillary action, for use over sloped waterproofing layers. The closely positioned cone shaped studs can withstand heavy loads and are covered by water permeable fleece webbing. The cavities between the studs and the fabric create a heat and sound insulating air space and protect the waterproofing membrane against harmful thermal stresses.
Material: Polyethylene.
Installation is preferred by Schlüter-Systems trained installers.
General information
Color | Orange |
Finish | Unfinished |
Material | High density polyethylene (HDPE) |
Shape | Other |
Length | 12500 mm 10000 mm |
Width | 1000 mm |
Height | 8 mm 12 mm |
Warranty description | Five year |
Uniclass | |
CAWS | M40/10 Natural stone covering to M40/110 Tiling to M40/115 Natural stone covering to M40/120 Mosaic to M40/5 Tiling to |
Specification data - High-density polyethylene (PE-HD) studded sheets
Stud height | 8 mm. |
Colour | Orange. |
Accessories | Schlüter®-DITRA-DRAIN-STU. Guidance for specification option: Self adhesive joint tape |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | High density polyethylene (HDPE) |
Manufacturing plant location | |
Recyclability | Product can be recycled where facilities exist |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Expected Life | Lifetime |
