Seadec Printed Grey Prefinished Oak Doors EI30 - Fire Door
Verified by manufacturer 13 days ago
2040 x 626 mm door leaf
2040 x 626 mm door leaf

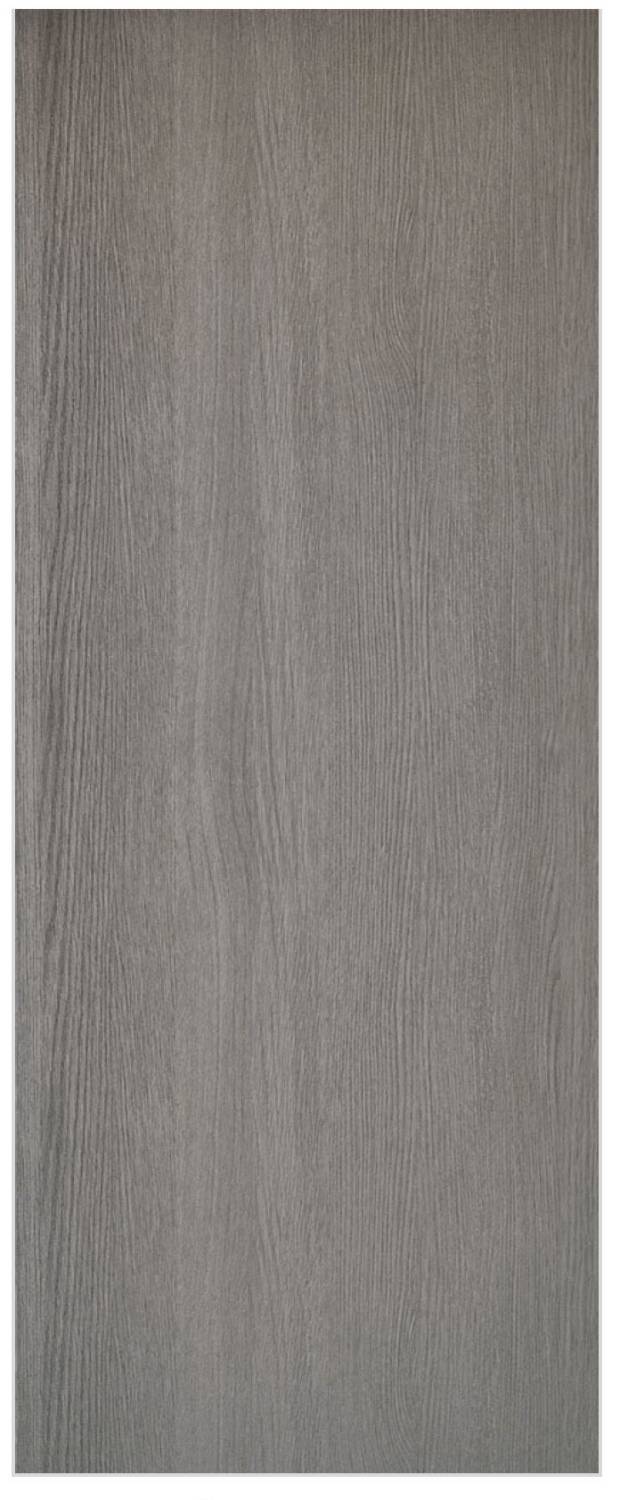

Printed grey oak flush internal doors with EI 30 fire resistance.
Application
For internal applications.
Description
Seadec Fire Doors come in various sizes and configurations to meet the standards required under Building Regulations Technical Guidance Documents. All Seadec fire doors are fully accredited by Fire Test Assessment reports, which are available on request and provide detailed information on the door’s scope of use. It is essential that fire doors are fitted in accordance with the certification which will also explain specification of door frame, intumescent materials and ironmongery.
Approved door frame: MDF, Solid wood 380 kg/m³. Minimum door frame size: 70 x 35 x 20 mm.
General information
Color | Grey |
Finish | Pre-treated |
Material | Wood Medium density fibreboard (MDF) |
Shape | Rectangle |
Width | 610 mm 626 mm 660 mm 711 mm 726 mm |
Height | 1981 mm 2032 mm 2040 mm |
Warranty description | Five year |
Uniclass | |
CAWS | L20/230 Wood flush doors L20/20 Wood flush doors |
Specification data - Wood flush door leaves
Standard | EN 10030 / 21, EN 10133 / 22-3. |
Format | Single-leaf. |
Thickness | 44 mm. |
Door leaf size | 2040 x 626 mm. |
Performance | |
Fire resistance | |
Insulation | To BS EN 13501-2, EI 30 minutes. |
Smoke leakage | Manufacturer guidanceApproved to EN 1634.3. |
Acoustic performance | 29 dB. |
Facings | Medium density fibreboard (MDF), 3 mm. |
Glazing | |
Type | Not required.Pyronova EI30.Pyroguard EI30Pyronova EW30.Manufacturer guidance0.76 m², multiple panels permitted. |
Hardware | Manufacturer guidanceInsert requirements or refer to a schedule. All Fire Doors are certified to be fitted with concealed door closers. |
Perimeter seals | NOR710FR frame seal and NOR810 drop seal. |
Finish | Printed grey prefinished. |
Intumescent strip | 15 x 4 mm Graphite. Palusol. |
Hinges | Grade 13. |
Sustainability data
Country of product manufacture | Portugal |
Recyclability | 100% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Specsheet Sep Seadec Ei30
