Secco EBE AF EI30-EI60 Doors & Partitions
Verified by manufacturer 3 days ago
EBE-AF 65
EBE-AF 65
Range of doors and glazed partitions that provide effective protection against flames and smoke, while keeping the temperature on the unexposed side under control.
Application
Suitable for a wide range building applications:
- Residential
- Commercial
- Public Sector
Description
Range of doors and glazed partitions that provide effective protection against flames and smoke, while keeping the temperature on the unexposed side under control.

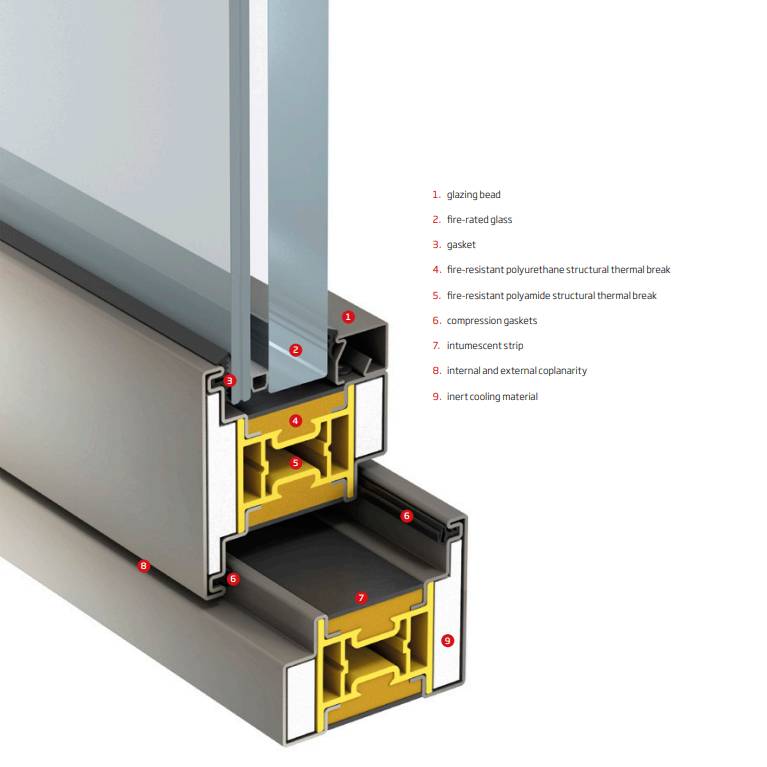

The EBE-AF thermal break profiles are made of two metal shells, obtained through cold-forming, joined together by a polyamide extrusion bonded to the shells with polyurethane resin. Sealing is ensured by compression gaskets and intumescent strips. The glazing beads are fixed to the frame with concealed screws, ensuring strength and reliability.
Features and benefits:
- Enables the construction of fire-resistant frames rated EI 30 or EI 60 using thermal break profile technology*.
- Available in all dimensional variants of the series EBE 65, 75 and 85* and in all metals of the Secco Sistemi range, seamlessly integrating with standard EBE frames, without visual dissonance, thanks to the consistency in shapes, thicknesses, and finishes.
- The EBE-AF system combines elegance and functionality, offering flush frame and leaf profiles for a uniform and contemporary appearance.
- The rounded-edge profiles and concealed glazing beads ensure a clean and refined finish.

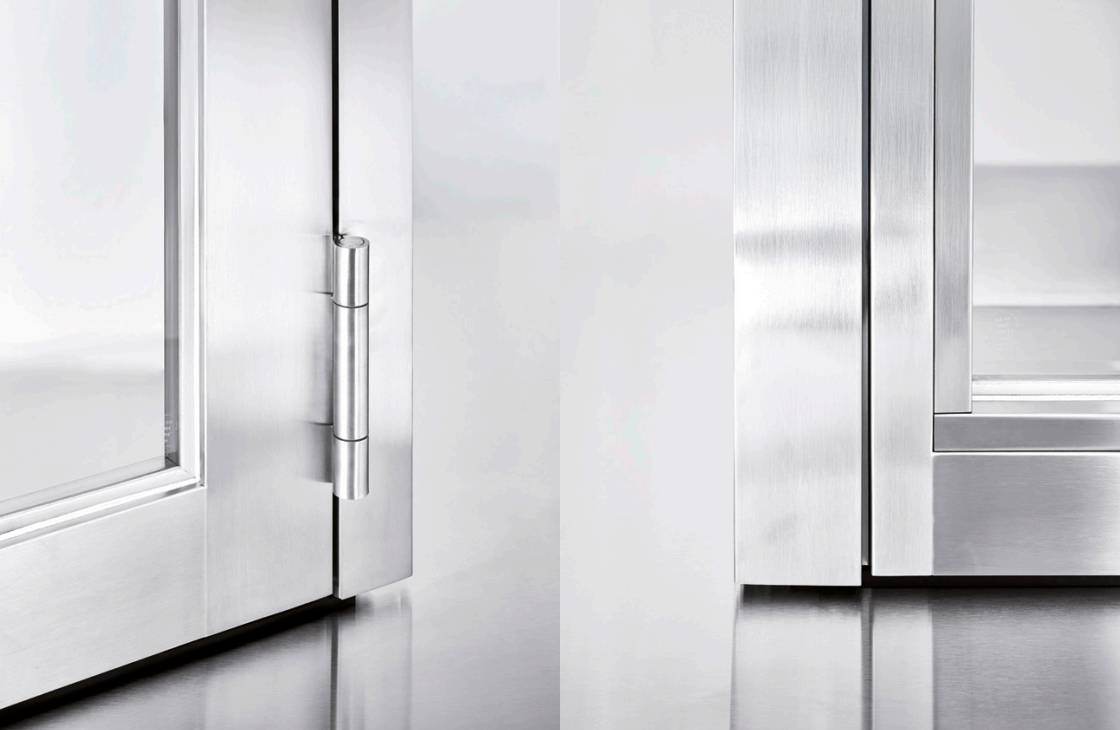

- Cylindrical hinges and the base panel, with the same visible dimension as the vertical profiles, contribute to a harmonious design.
*100 mm, EI 90 system also available, consult manufacturer for details.
General information
Color | Silver Brown Grey Clear Gold |
Finish | Galvanized Weathered Polished Burnished Glazed |
Material | Carbon steel Stainless steel Brass Glass |
Shape | Rectangle Square Other |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets K30/10 Relocatable partition system K30/130 Relocatable partition system |
Specification data - Partition panels
Classification data | |
Third-party certification | Certification to EN 1634-1 available on request. Manufacturer guidanceConsult manufacturer for details, including other certificates. |
Standard | To EN 1634-1. |
Fire performance | Fire resistance EI 30. Fire resistance EI 60. |
Unit size | |
Thickness | 65 mm. |
Partition height (nominal) | Guidance for specification option: Consult manufacturer for details and options, and insert requirements. Manufacturer guidanceInclude drawing and/ or schedule reference as required. |
Width (nominal) | Guidance for specification option: Consult manufacturer for details and options, and insert requirements. |
Deflection allowance (maximum) | |
Head | Guidance for specification option: Insert requirements or omit. |
Floor | Guidance for specification option: Insert requirements or omit. |
Verticals | Guidance for specification option: Insert requirements or omit. |
Panel partition type | Glazed. Guidance for specification option: Consult manufacturer for details based on required fire resistance. Manufacturer guidanceAs per test data. |
Glazed panels | |
Type | Double-glazed. |
Door arrangement | |
Type | EBE doorset system, single leaf inward opening door with threshold. EBE doorset system, single leaf outward opening door with threshold. EBE doorset system, single leaf inward opening door without threshold. EBE doorset system, single leaf outward opening door without threshold. EBE doorset system, double leaf inward opening door with threshold. EBE doorset system, double leaf outward opening door with threshold. EBE doorset system, double leaf inward opening door without threshold. EBE doorset system, double leaf outward opening door without threshold. |
Locking | Required. |
Door frames | Satin Brass. Patinated Brass (Architectural Bronze). Corten. Stainless Steel. Burnished Stainless Steel (darkened Stainless Steel). Painted galvanized steel - Black RAL 9005 Matt. Painted galvanized steel - Black RAL 9005 Semi-gloss. Painted galvanized steel - Graphite Grey RAL 7024 Matt. Painted galvanized steel - Graphite Grey RAL 7024 Semi-gloss. Painted galvanized steel - Anthracite Grey RAL 7016 Matt. Painted galvanized steel - Anthracite Grey RAL 7016 Semi-gloss. Painted galvanized steel - Cream White RAL 9001. Painted galvanized steel - Traffic White RAL 9016. Painted galvanized steel - Pure White RAL 9010. Painted galvanized steel - RAL colour. Guidance for specification option: Consult manufacturer and insert colour requirements. Specialist colours available on request. |
Door panels | |
Type | Required. Guidance for specification option: For half-glazed or solid doors. Consult manufacturer for material details. Finish to match frame unless specified otherwise. Not required. Guidance for specification option: Fully-glazed doors. |
Hardware | Lever panic bar. Guidance for specification option: For quick and safe opening; the ergonomic shape of the lever allows for ease of unlocking and operating of the door. Available in satin aluminium finish or painted to match the door frame. Handle compatible with panic bars. Guidance for specification option: Allows the door to be opened from the opposite side of the panic bar. The elegant backplate, which connects the handle to the lock block, ensures aesthetic continuity with the panic bar. Available in satin steel finish or painted to match the door frame. Panic bar handle. Guidance for specification option: Designed to allow immediate exit through direct pressure along the full width of the door leaf, it ensures maximum mechanical reliability and a wider usable evacuation space. Available in satin aluminium finish or painted to match the door frame. Door closer, exposed. Guidance for specification option: Equipped with an articulated arm mechanism. Ensures smooth and secure door closing. The cover protects the internal components and is matched to the door frame's colour for aesthetic continuity. Door closer, concealed. Guidance for specification option: Integrated automatic closing system inside the leaf of the frame. Invisible when the door is closed. Not required. Guidance for specification option: Fixed frame partitions (no doors) only. Manufacturer guidanceConsult manufacturer for details and insert requirements.
Handles specified separately below. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. |
Glazing beads | Square. Guidance for specification option: Standard. |
Handles | Guidance for specification option: Consult manufacturer's literature and insert requirements from the vitruvio range. |
Sustainability data
Material | Carbon steel Stainless steel Brass Glass |
